Oil Cooler Installation

WARNING: This page is about a different car, the 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the oil cooler hose fitting.

    Tighten:

    Tighten the oil cooler hose fitting to 19 N.m (14 lb ft)

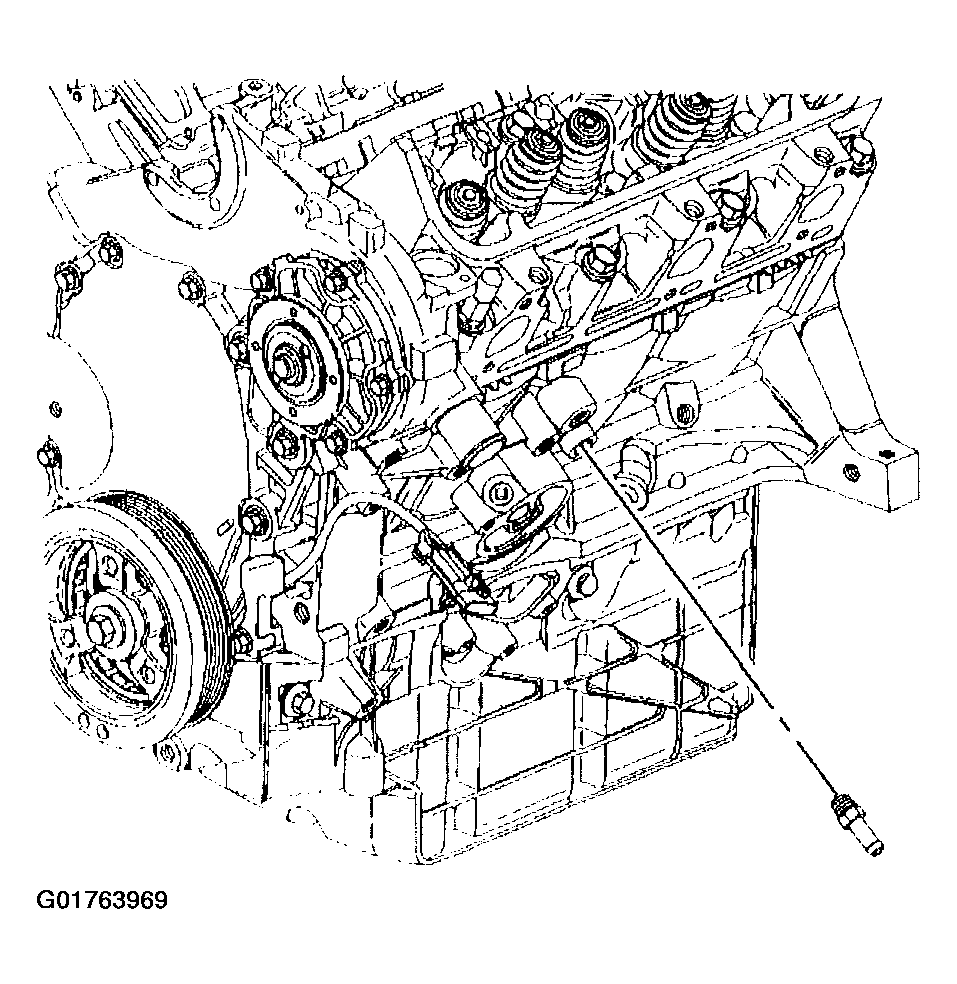

    Fig 1: Oil Cooler Hose Fitting
    G01763969Courtesy of GENERAL MOTORS CORP.
  2. Install the oil cooler inlet hose clamp and the oil cooler inlet hose onto the oil cooler hose fitting.
    Fig 2: Oil Cooler Inlet Hose
    G01763970Courtesy of GENERAL MOTORS CORP.
  3. Install the oil cooler inlet hose clamp and oil cooler.

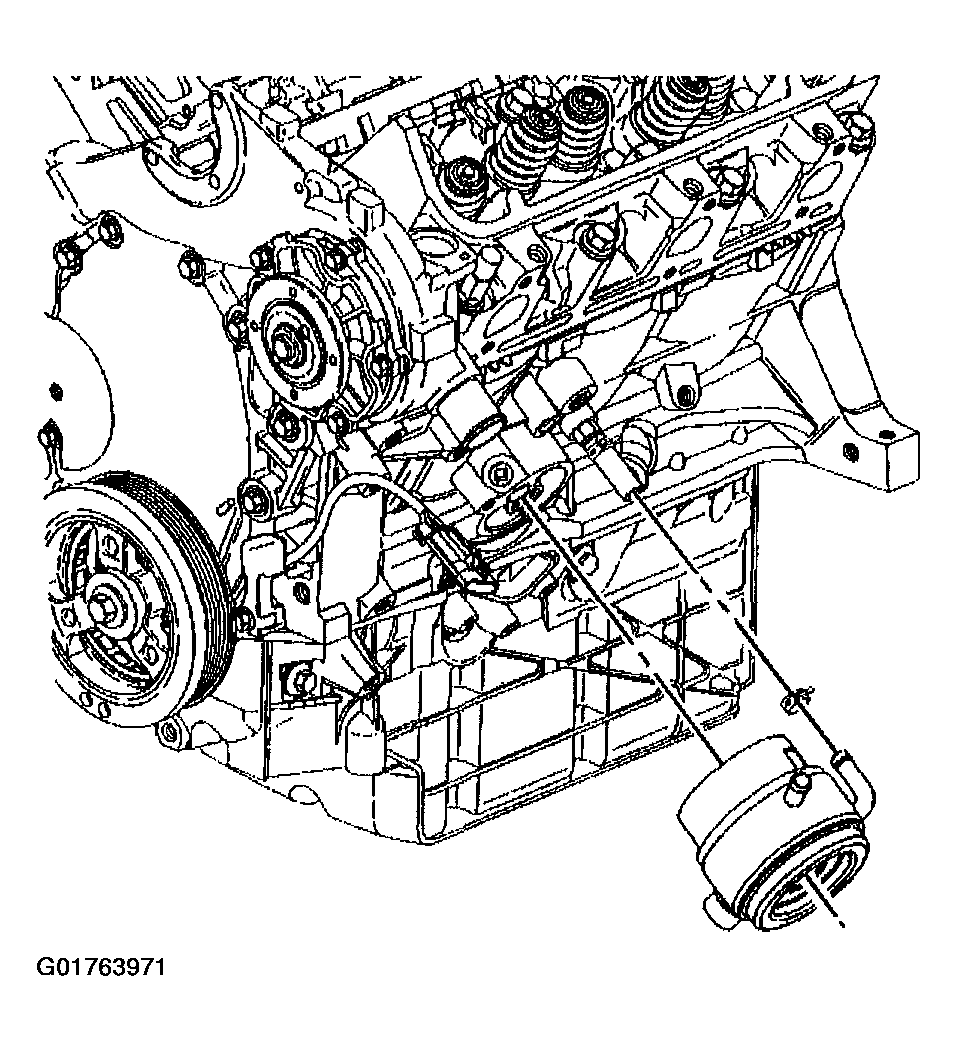

    Fig 3: Oil Cooler Inlet Hose Clamp And Oil Cooler
    G01763971Courtesy of GENERAL MOTORS CORP.
  4. Install the oil cooler connector.

    Tighten:

    Tighten the oil cooler connector to 50 N.m (37 lb ft)

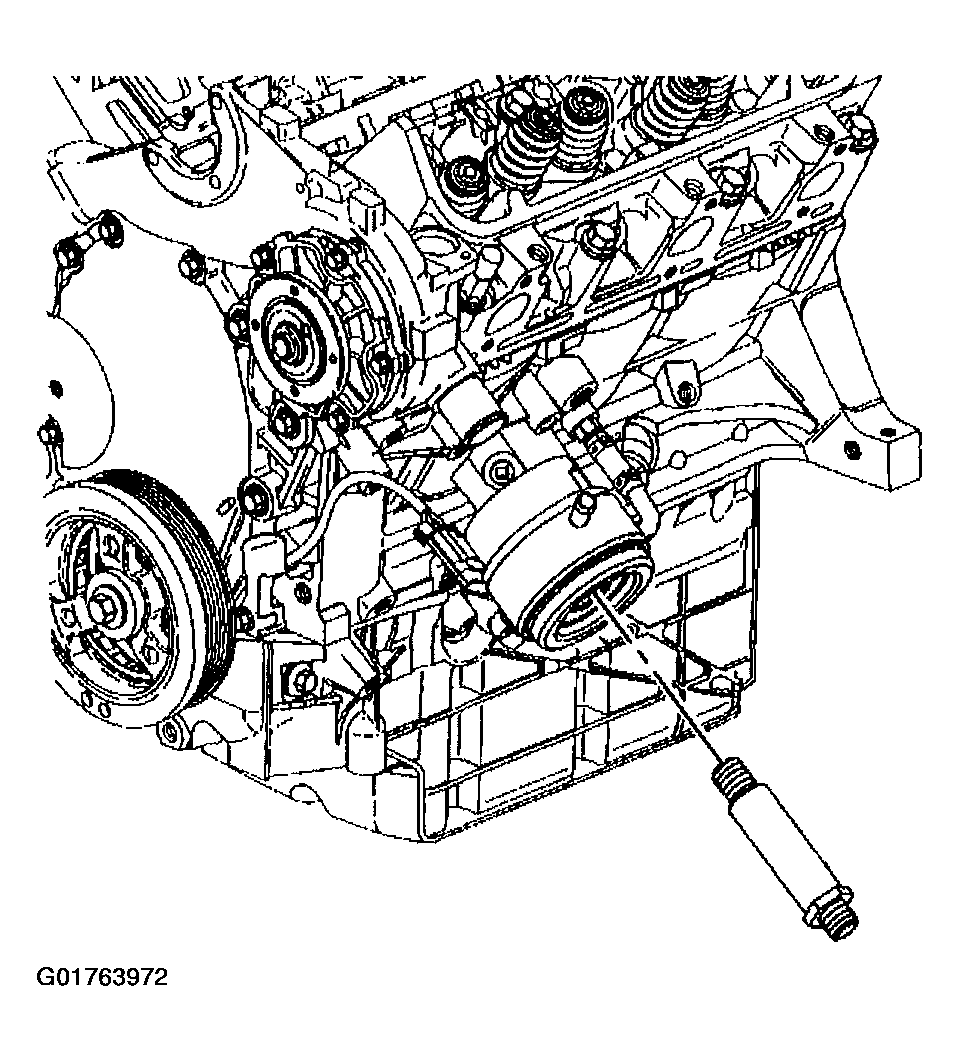

    Fig 4: Oil Cooler Connector
    G01763972Courtesy of GENERAL MOTORS CORP.
  5. Install the oil cooler outlet hoses and pipe.
  6. Connect the lower oil cooler outlet hose to the oil cooler.
  7. Connect the upper oil cooler hose to the thermostat bypass pipe.

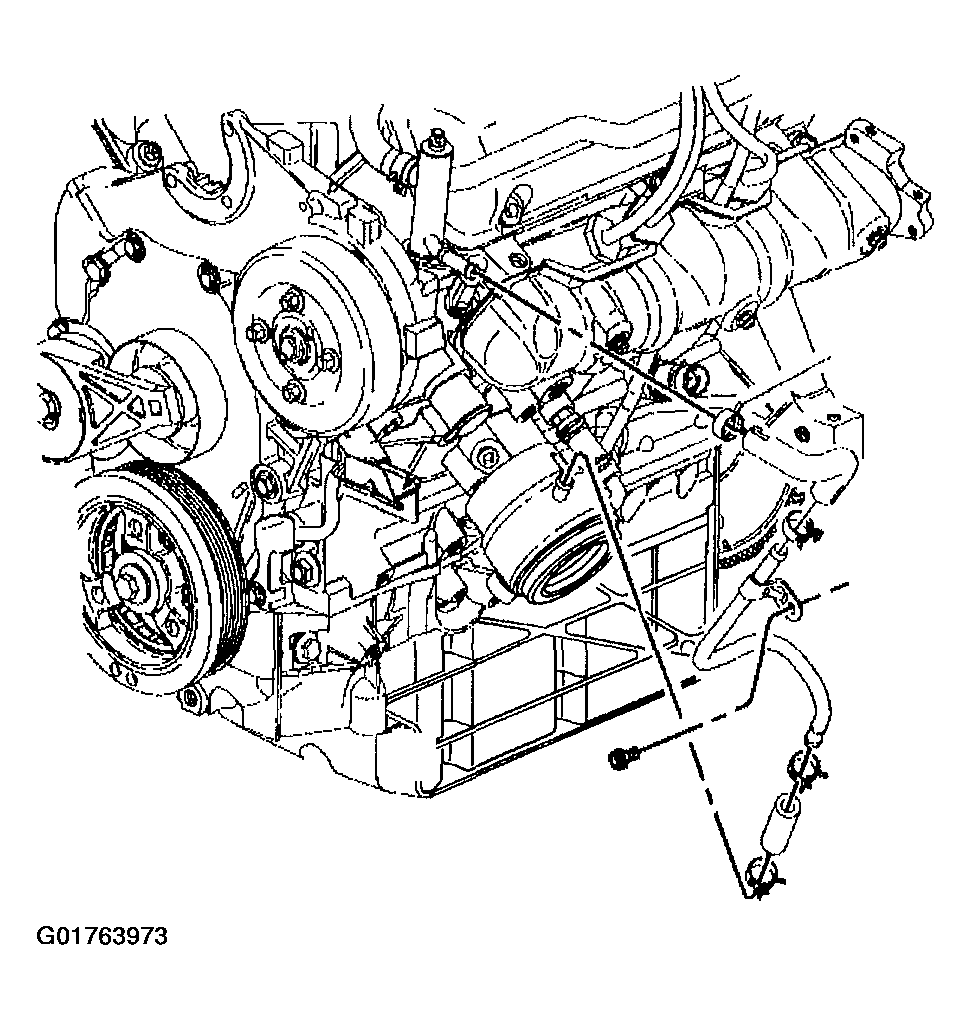

    Fig 5: Oil Cooler Outlet Hoses And Pipes
    G01763973Courtesy of GENERAL MOTORS CORP.
