Engine Flywheel Installation

WARNING: This page is about a different car, the 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the flywheel.
  2. Install the flywheel retainer.
  3. Install the flywheel bolts.

    Tighten:

    Tighten the flywheel bolts to 71 N.m (52 lb ft)

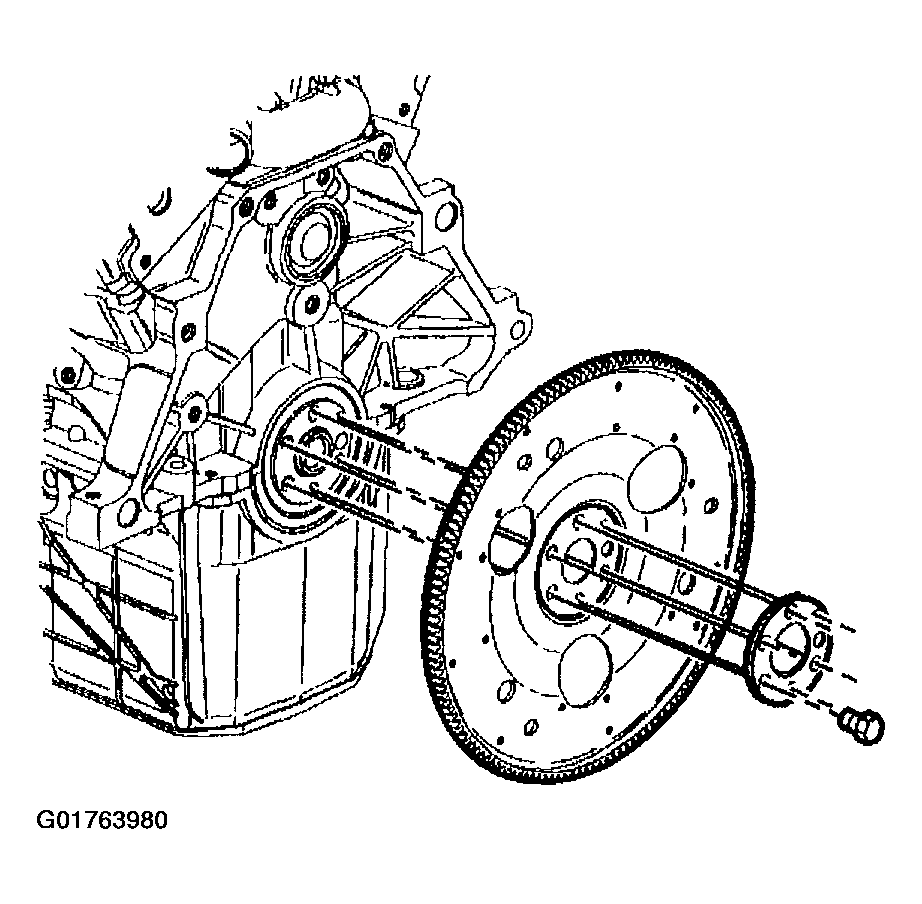

    Fig 1: Flywheel And Components
    G01763980Courtesy of GENERAL MOTORS CORP.
