Cylinder Head Removal - Right

WARNING: This page is about a different car, the 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the spark plugs.
  2. Remove the cylinder head bolts.
  3. Remove the cylinder head.
    Fig 1: Cylinder Head And Bolts, Right
    G01763753Courtesy of GENERAL MOTORS CORP.
  4. Remove the cylinder head gasket.
  5. Remove the dowel pins - cylinder head locator, if required.

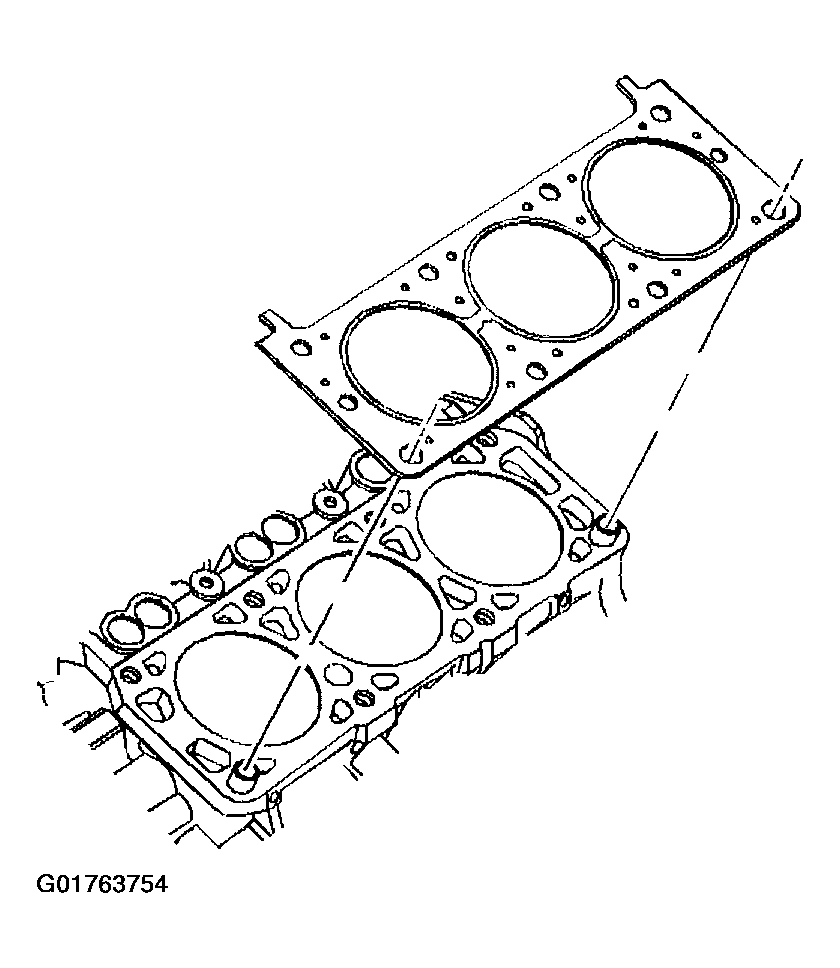

    Fig 2: Cylinder Head Gasket, Right
    G01763754Courtesy of GENERAL MOTORS CORP.
