Cylinder Head Installation - Left

WARNING: This page is about a different car, the 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required: J 36660-A Torque Angle Meter

Install the dowel pins (cylinder head locator) (if necessary).
Inspect the dowel pins (cylinder head locator) for proper installation.
Install the cylinder head gasket.

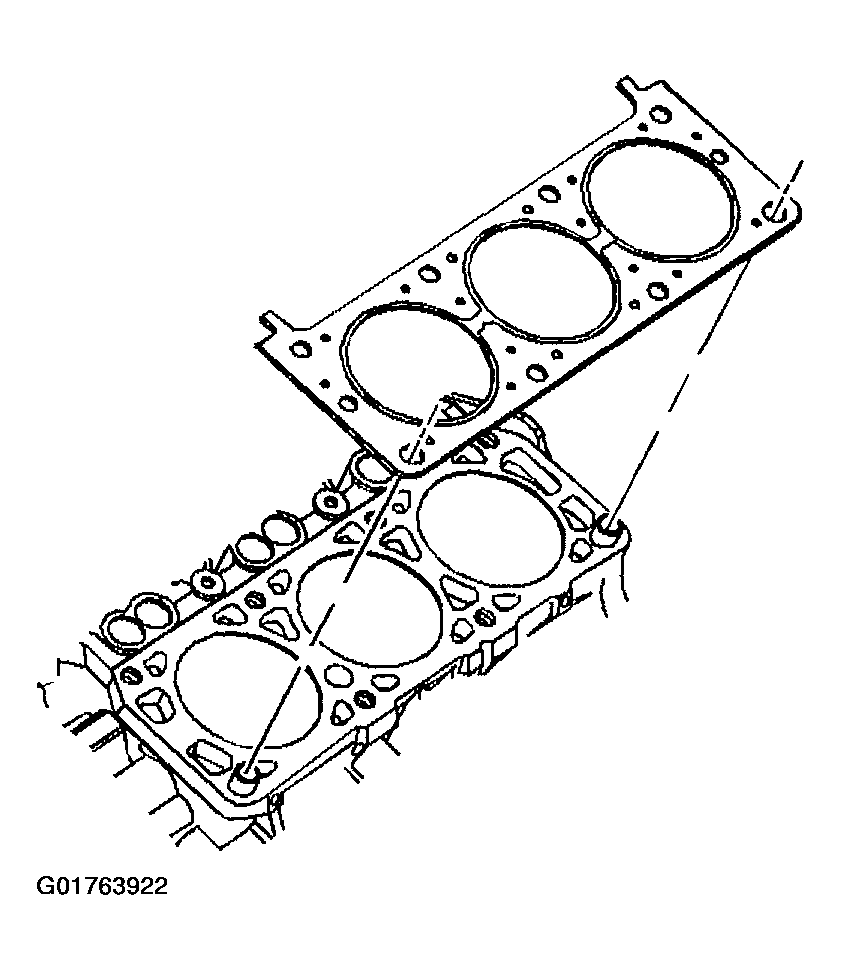

Fig 1: Cylinder Head Gasket
Courtesy of GENERAL MOTORS CORP.
Install the cylinder head.

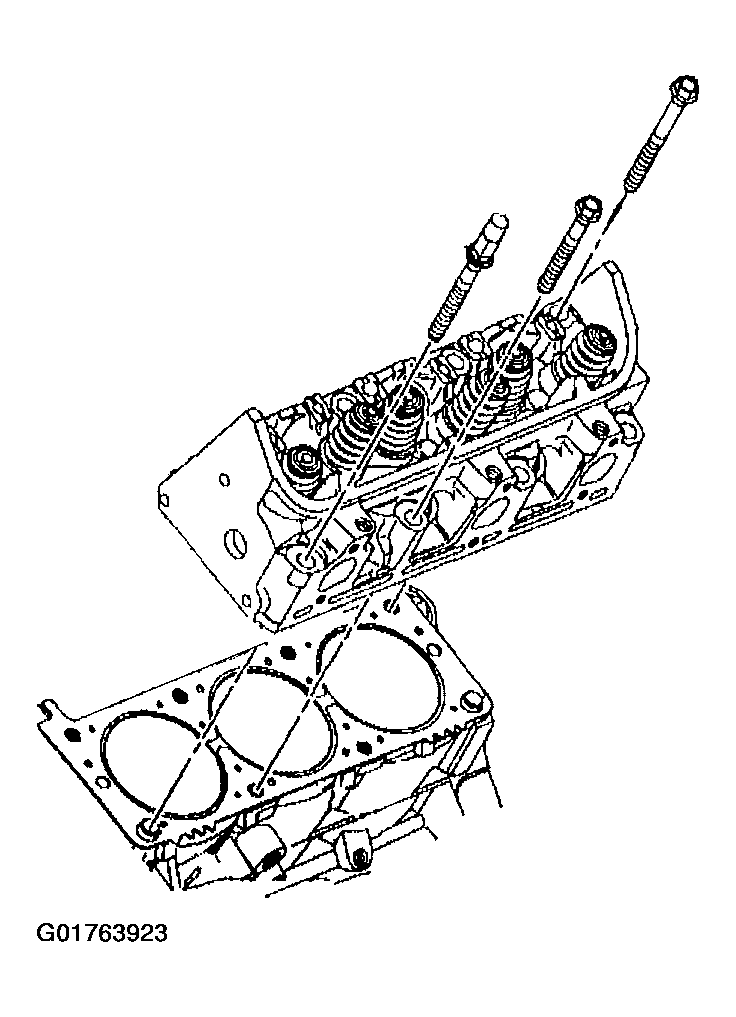

Fig 2: Install The Left Side Cylinder Head
Courtesy of GENERAL MOTORS CORP.
Install NEW cylinder head bolts.
Tighten:

Tighten the cylinder head bolts in sequence to 60 N.m (44 lb ft). Turn the bolts an additional 95 degrees using the J 36660-A

Fig 3: Cylinder Head Bolt Tightening Sequence
Courtesy of GENERAL MOTORS CORP.
