Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Support the vehicle with suitable safety stands.
  2. Remove the wheel nuts from the tire and wheel assembly.
  3. Mark the location of the tire and wheel assembly to the hub assembly.
  4. Remove the tire and wheel assembly from the vehicle.
  5. Clean the wheel nuts, studs and the wheel and rotor mounting surfaces.

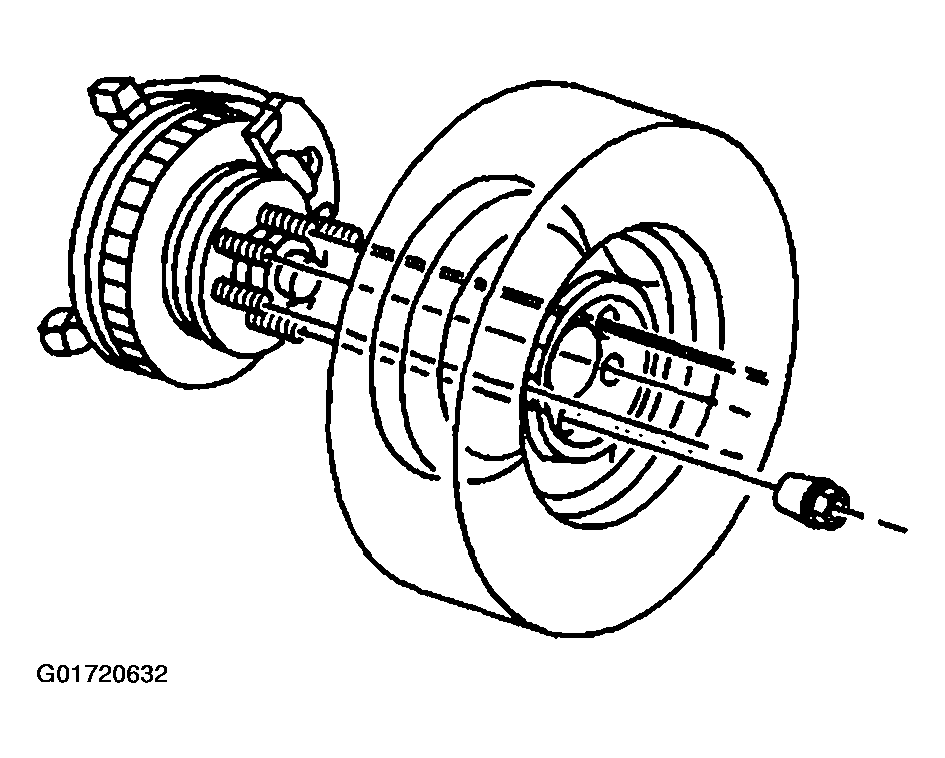

Fig 1: Wheel Assembly
G01720632Courtesy of GENERAL MOTORS CORP.
