Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the stabilizer shaft link bolt (5) from the frame (1). See Fig 1.
    Fig 1: Removing Stabilizer Shaft Link Bolt From Frame
    G00388763Courtesy of GENERAL MOTORS CORP.
  3. Remove the stabilizer shaft insulator brackets (2) from the rear axle (3). See Fig 2.
  4. Remove the stabilizer shaft.

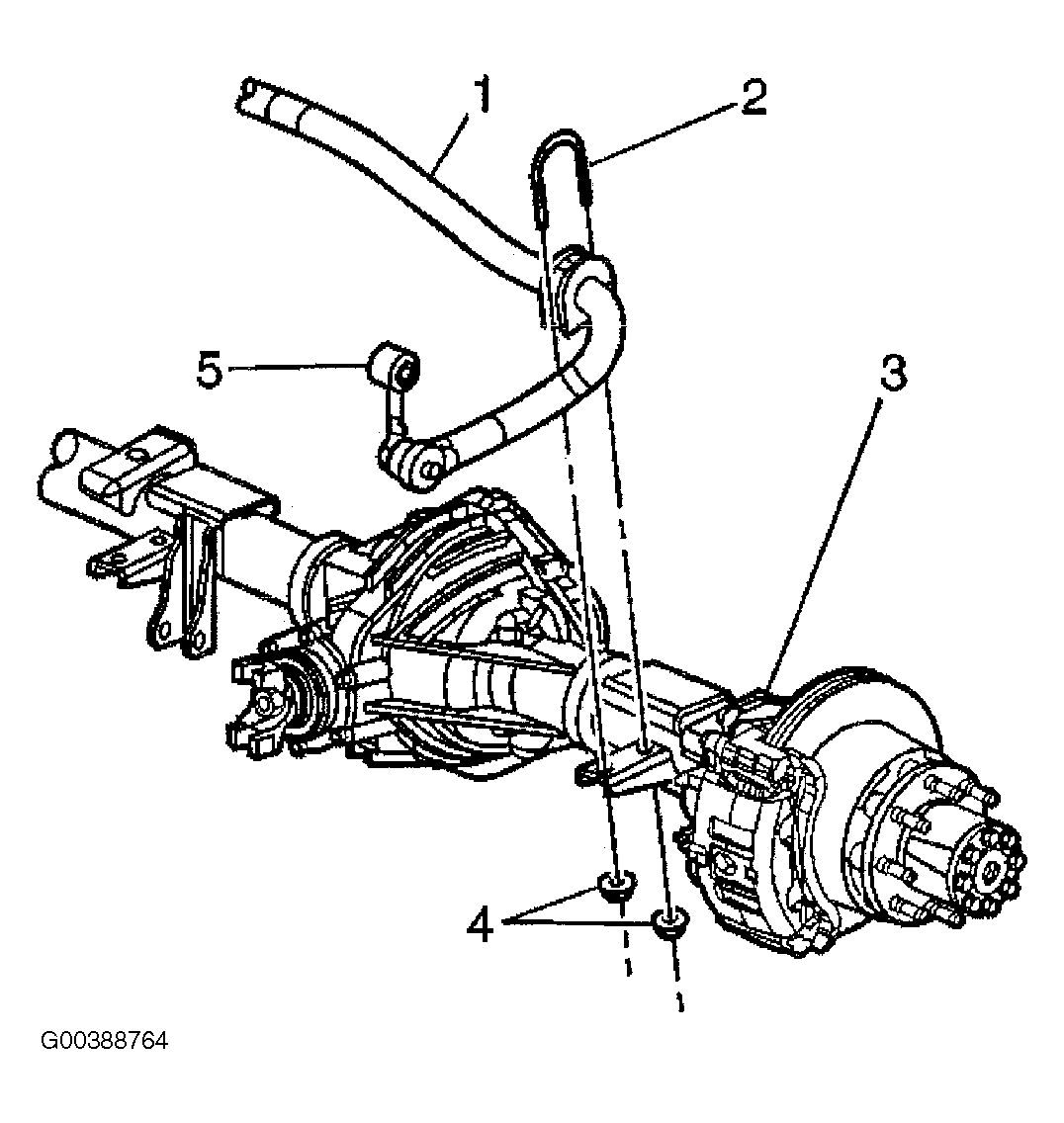

    Fig 2: Removing Stabilizer Shaft Insulator Bracket & Stabilizer Shaft
    G00388764Courtesy of GENERAL MOTORS CORP.
