Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

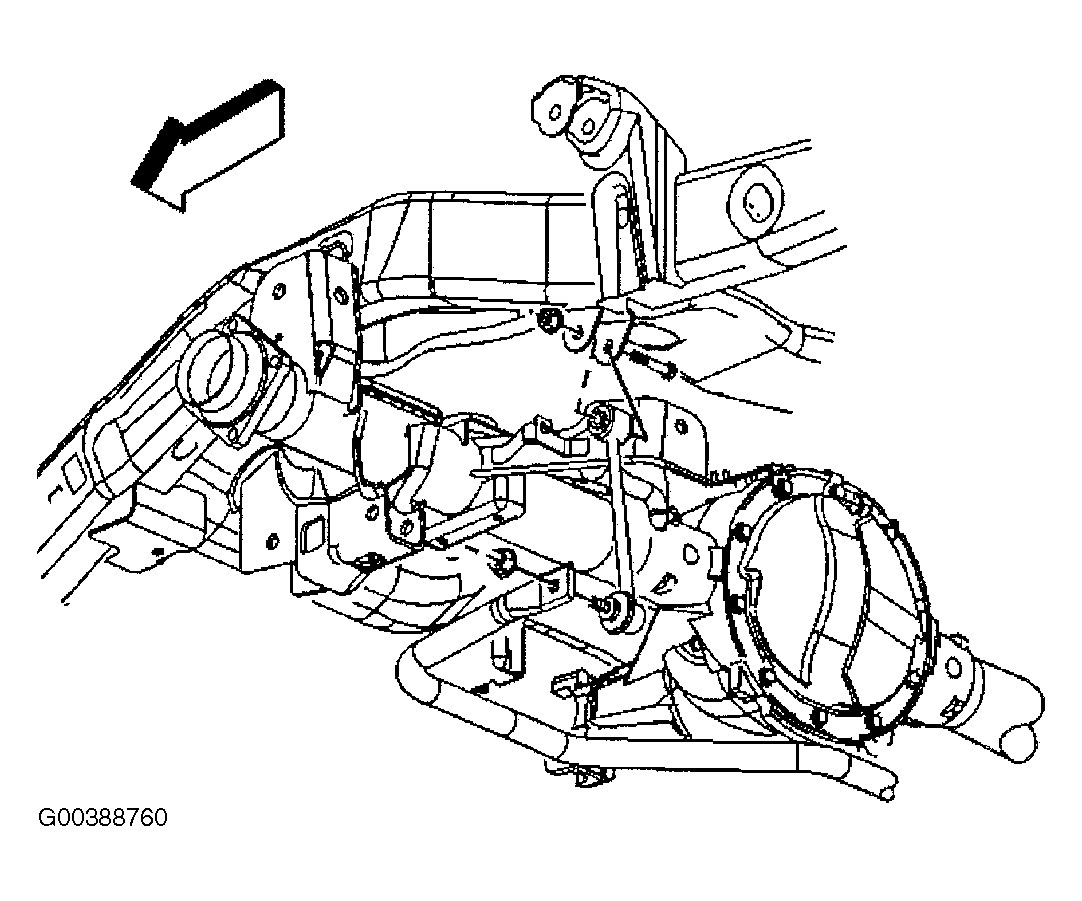

  1. Install the stabilizer shaft link. See Figure.
    NOTE: When tightening the lower link nut verify that the inner jam nut bottoms out on the ball stud.
  2. Install the stabilizer shaft link nut to the ball stud. See Figure.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  3. Install the stabilizer shaft link nut and bolt to the frame bracket. See Figure.

    Tighten

    1. Tighten the link to frame bracket nut to 65 N.m (48 ft lbs).
    2. Tighten the ball stud to stabilizer shaft nut to 65 N.m (48 ft lbs).
  4. Lower the vehicle.
