Steering Column Trim Covers - Assemble - Off Vehicle (Floor Shift)

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required: J 41352 Steering Column Holding Fixture

Install the upper trim cover (2) onto the steering column.
Screw the 2 TORX® head screws (1) into the upper trim cover (2).
Tighten:

Tighten the 2 TORX® head screws to 1.5 N.m (13 lb in)

Fig 1: Upper Trim Cover And Steering Column
Courtesy of GENERAL MOTORS CORP.
Install the trim cover protector (1) onto the lower trim cover (2).

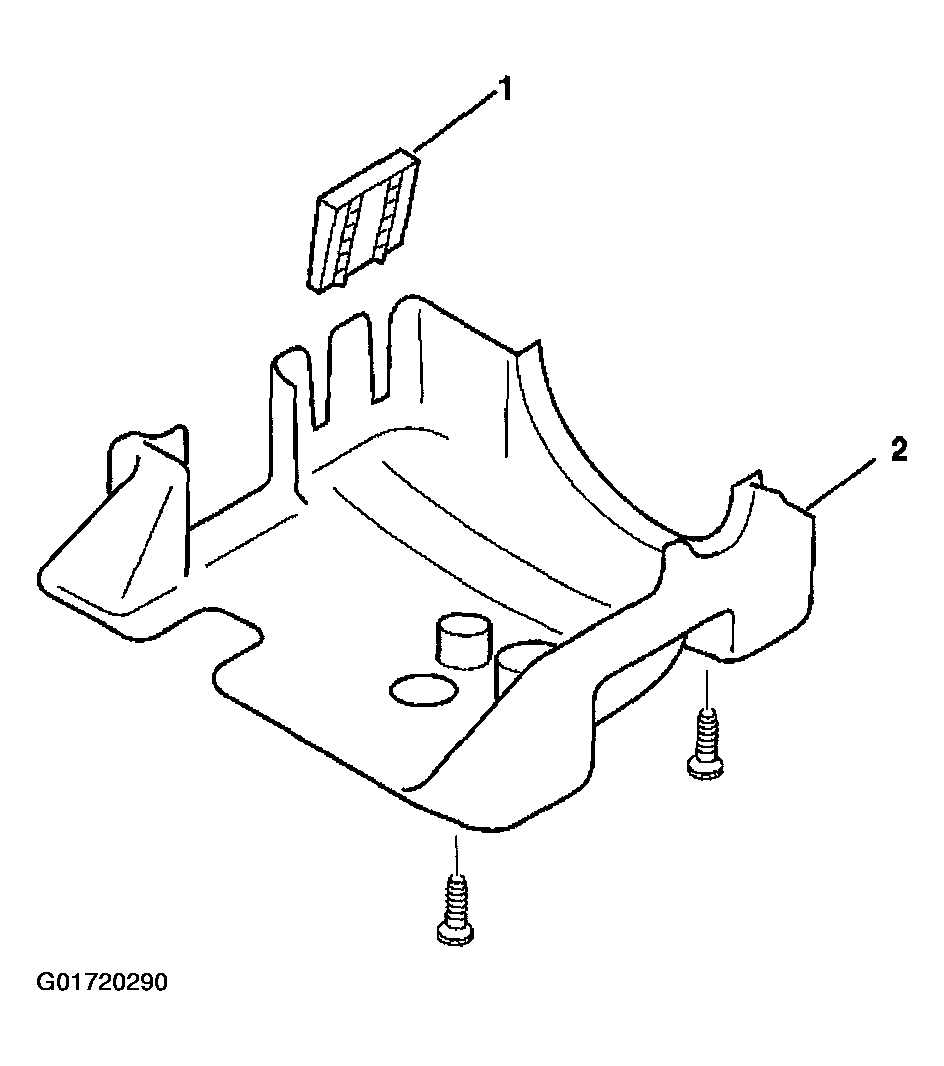

Fig 2: Trim Cover Protector And The Lower Trim Cover
Courtesy of GENERAL MOTORS CORP.
Install the lower trim cover onto the upper trim cover.
Match the tab slots on the lower trim cover with the locking tabs on the upper trim cover.
Tilt the lower trim cover up.
Slide the lower trim cover forward until the locking tabs snap into the tab slots.

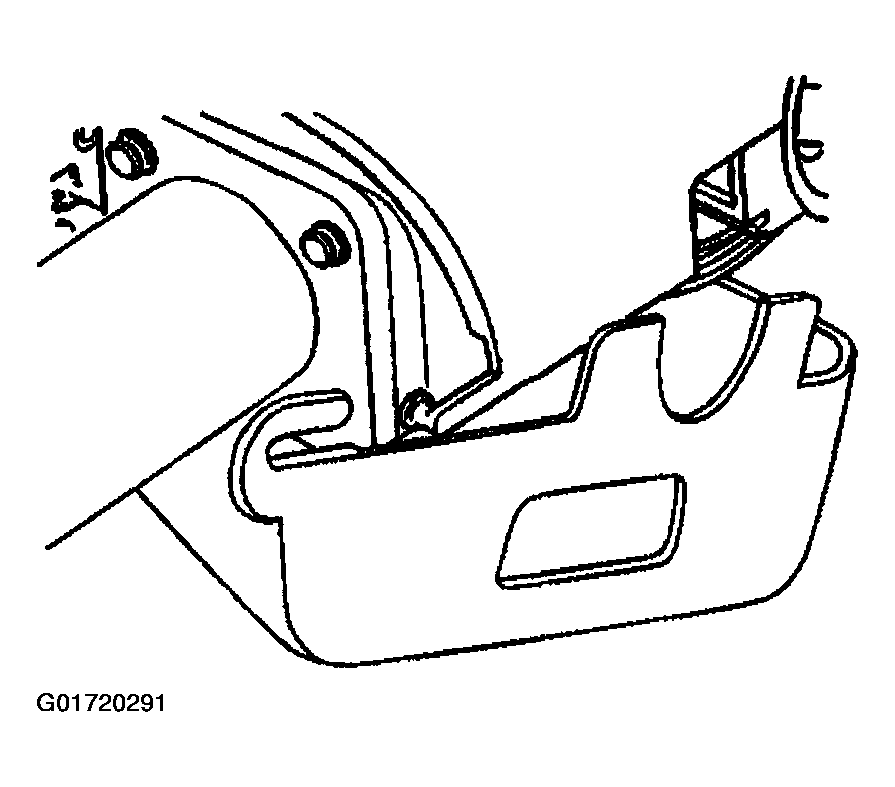

Fig 3: Lower Trim Cover
Courtesy of GENERAL MOTORS CORP.
Screw the 2 pan head tapping screws (1) into the lower trim cover (2).
Tighten:

Tighten the 2 pan head tapping screws to 3.5 N.m (31 lb in)

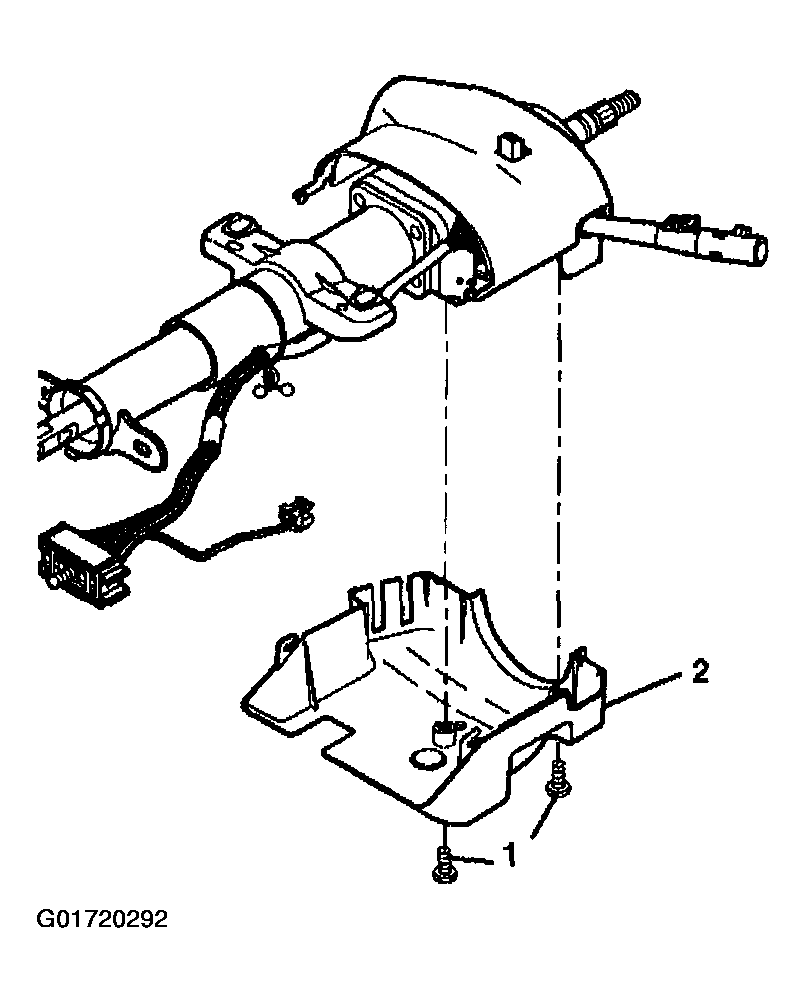

Fig 4: Pan Head Tapping Screws To The Lower Trim Cover
Courtesy of GENERAL MOTORS CORP.
Remove the steering column and J 41352 from the vise.

Fig 5: Putting Steering Column In A Vise

Courtesy of GENERAL MOTORS CORP.

Install the tilt knob.
