Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable from the battery.
  2. Remove the upper and lower steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle .
  3. Disconnect the ignition lock cylinder electrical connector from the wiring harness on the column.
  4. Put the key in the steering column lock cylinder set (1).
  5. Turn the key to the START position.
  6. Install a 1/16 allen wrench (2) into the hole on top of the lock module assembly to release the steering column lock cylinder set retaining pin.

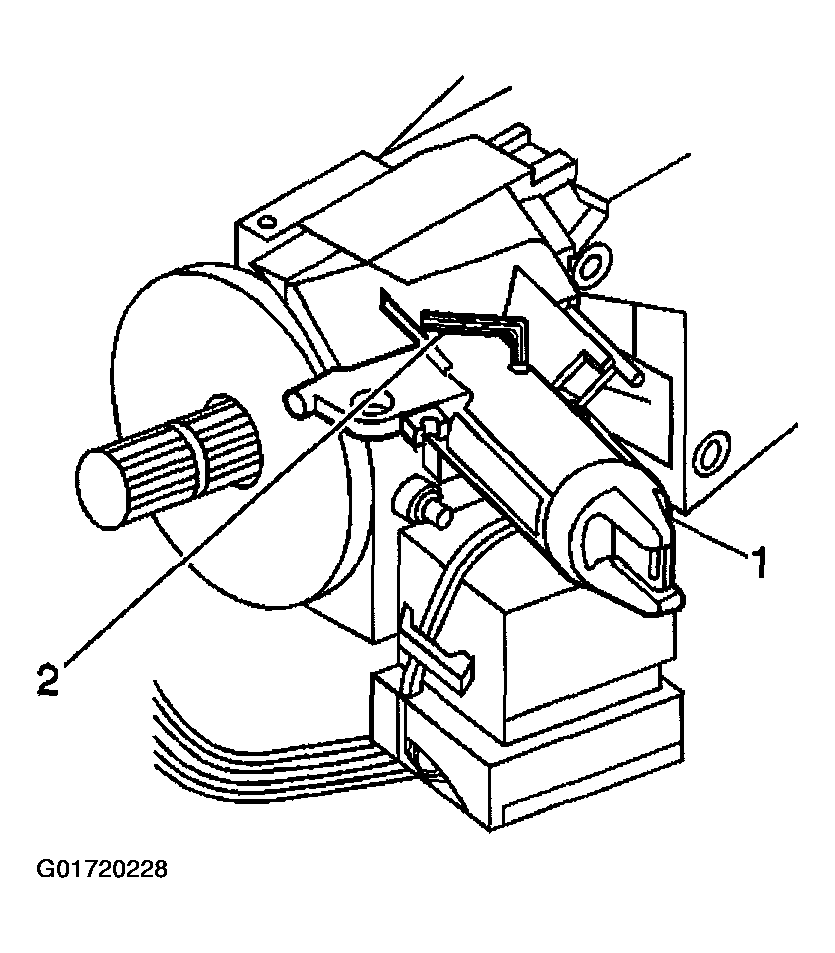

    Fig 1: 1/16 Allen Wrench And Steering Column Lock Cylinder Set
    G01720228Courtesy of GENERAL MOTORS CORP.
  7. Turn the steering column lock cylinder set (1) into the RUN position.
  8. Pull the steering column lock cylinder set (1) out from the lock module assembly.
  9. Remove the key from the steering column lock cylinder set (1).
