Vehicle Speed Sensitive Vibration Diagnosis

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Definition:  Vehicle speed sensitive vibrations can be heard or felt as the speed of the vehicle (mph) varies.

The operating speed of the engine (RPM) does not effect a vehicle speed sensitive vibration.

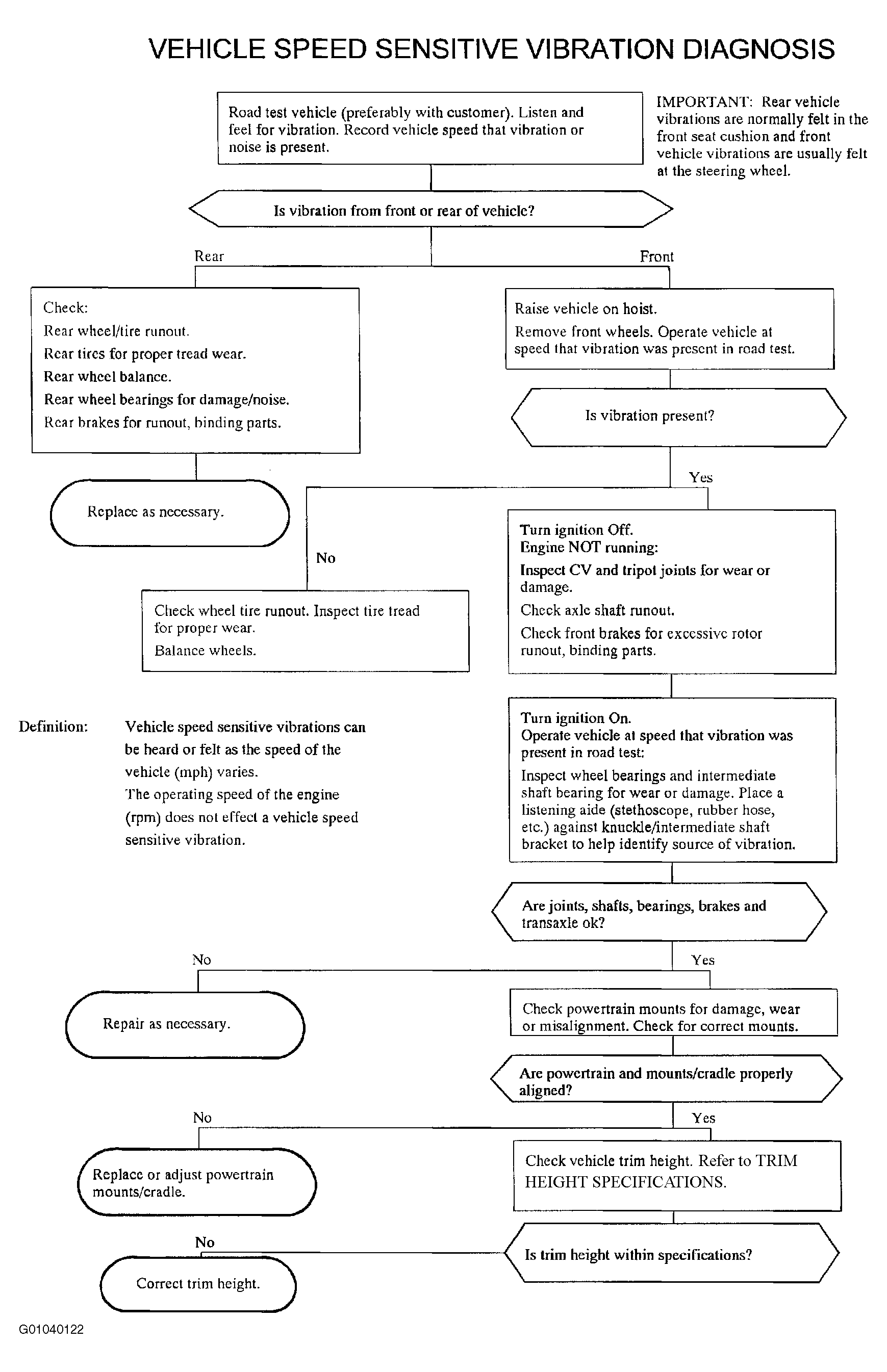

Fig 1: Vehicle Speed Sensitive Vibration Diagnosis Table
G01040122Courtesy of GENERAL MOTORS CORP.
