Engine Noise Diagnosis

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

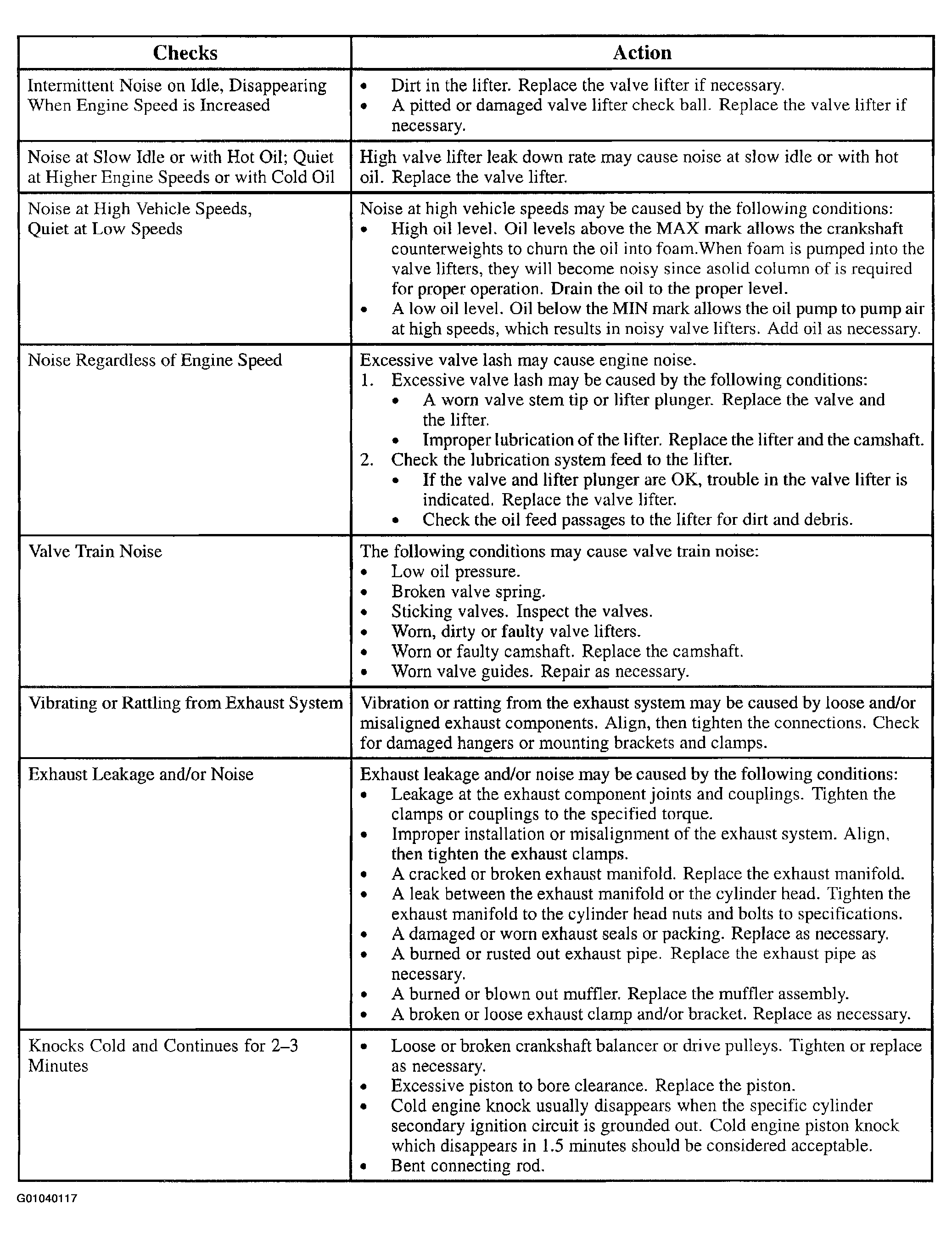

Fig 1: Engine Noise Diagnosis (1 Of 2)
G01040117Courtesy of GENERAL MOTORS CORP.

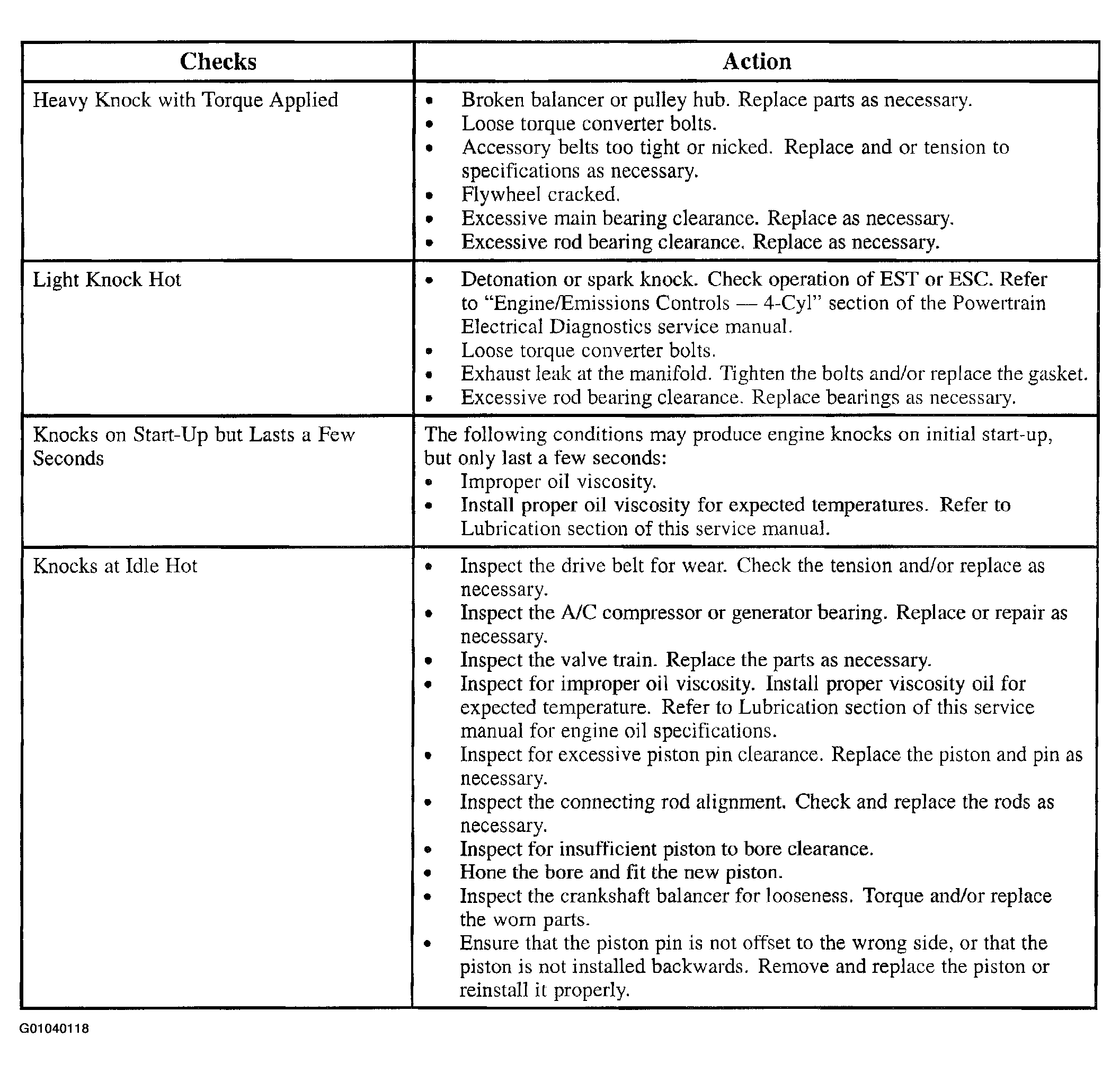

Fig 2: Engine Noise Diagnosis (2 Of 2)
G01040118Courtesy of GENERAL MOTORS CORP.
