Engine Drive Belt And TENSIONER Troubleshooting Chart

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

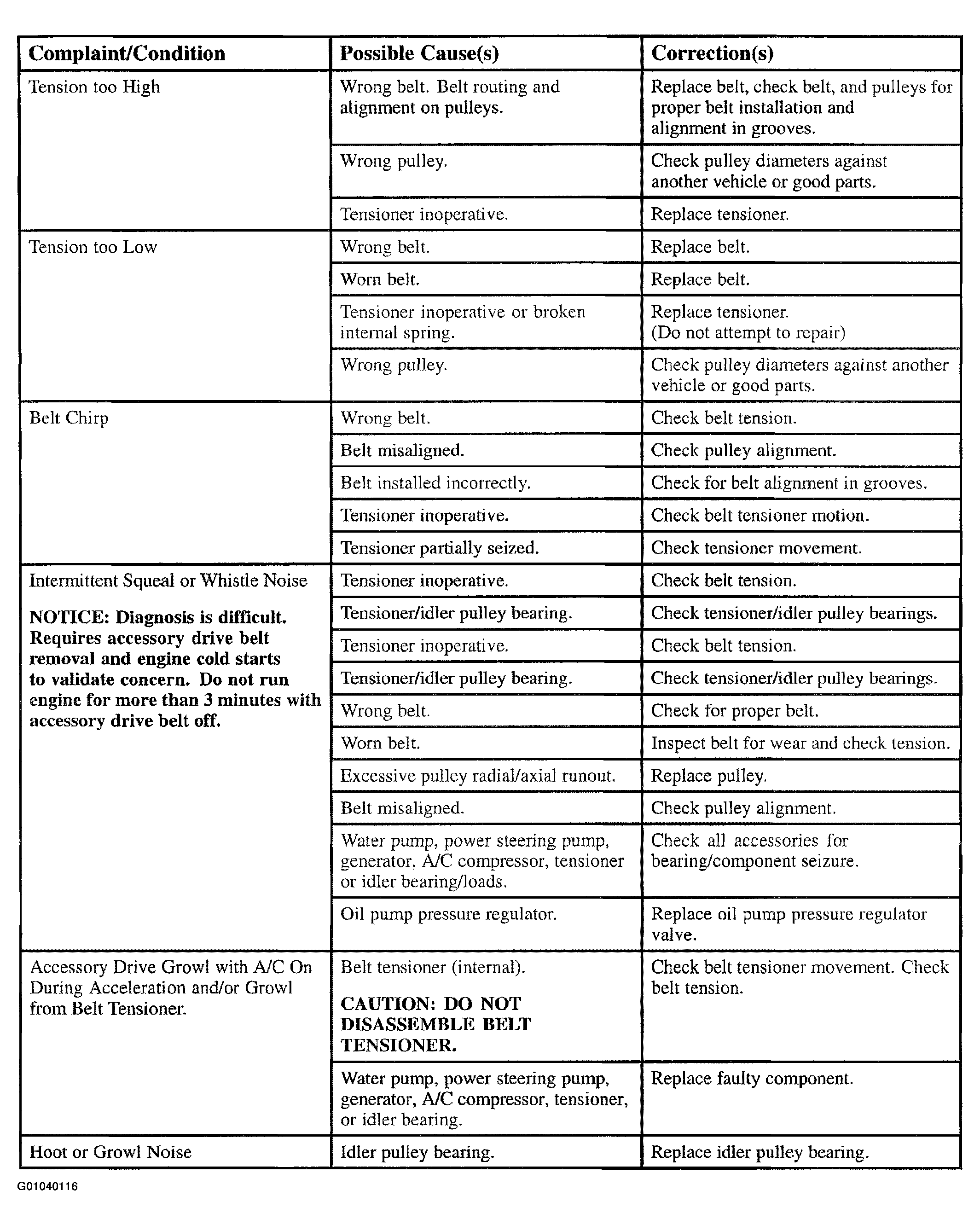

Fig 1: Engine Drive Belt And Tensioner Troubleshooting Chart
G01040116Courtesy of GENERAL MOTORS CORP.

IMPORTANT:  Saturn service tool SA9217NE Chassis Ear Tool (or equivalent) should be used to locate source(s) of noises caused by vibration(s).
