Disassembly Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen both cylinder line fittings on the cylinder end of the gear assembly.
  2. Loosen both fittings on the cylinder line assemblies (1) at the valve end of the gear assembly.
  3. Remove both cylinder line assemblies (1) from the rack and pinion gear assembly (2).

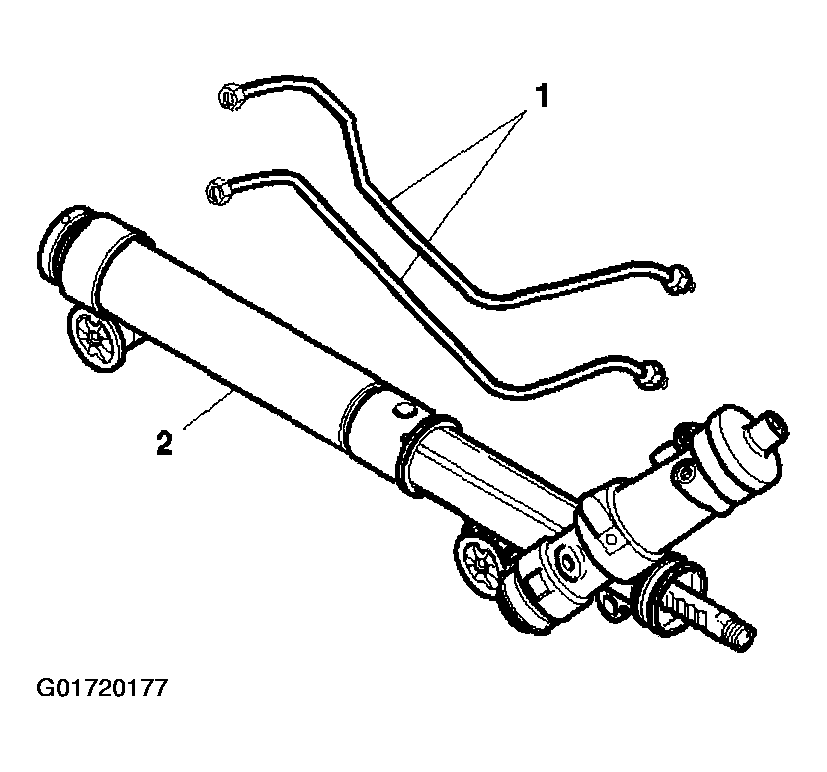

    Fig 1: Cylinder Line Assemblies To Rack And Pinion Assembly
    G01720177Courtesy of GENERAL MOTORS CORP.
  4. Remove the O-ring seals (1) from the valve end of line.
  5. Discard the O-ring seals (1).

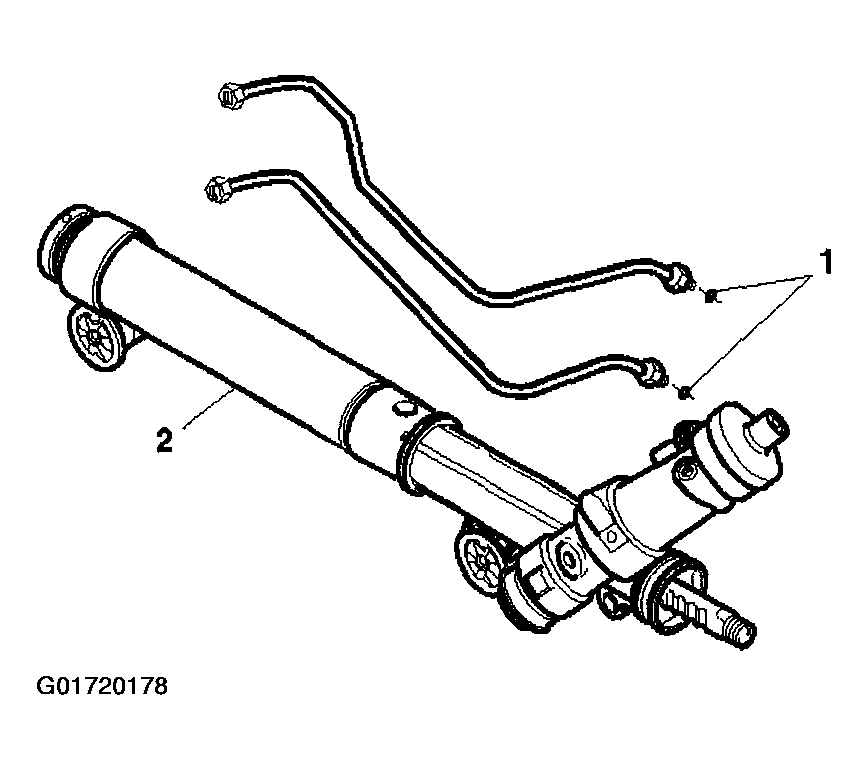

Fig 2: Valve End O-Rings
G01720178Courtesy of GENERAL MOTORS CORP.
