Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the tie rod bolt.

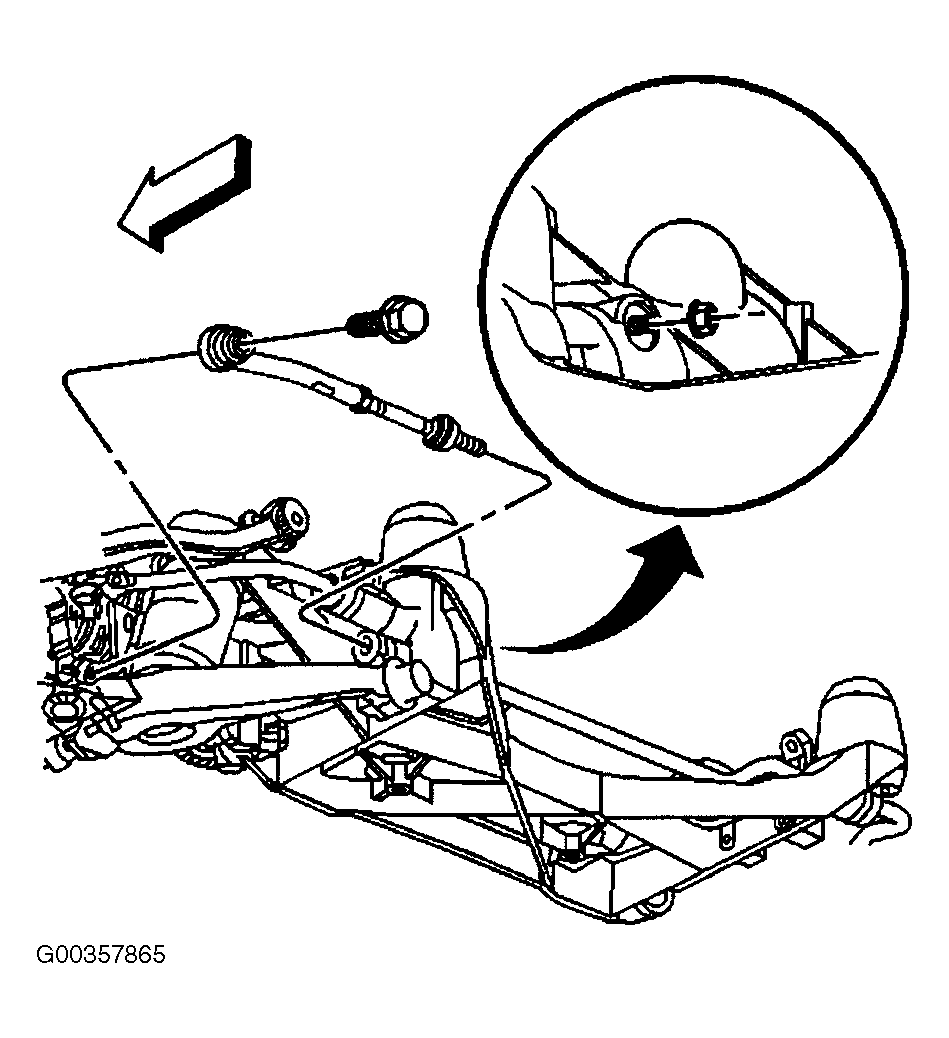

    Fig 1: Removing Tie Rod Bolt
    G00357865Courtesy of GENERAL MOTORS CORP.
  3. Remove the tie rod nut.
  4. Remove the tie rod.
