Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Use a wrench in order to hold the stabilizer shaft link. Remove the stabilizer shaft link nuts.

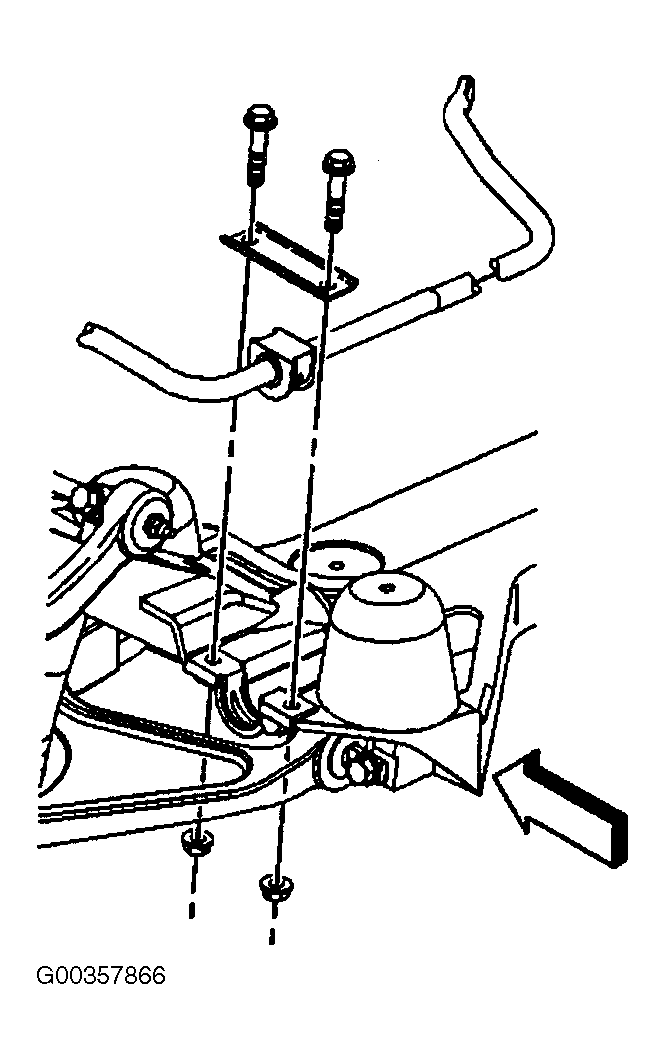

    Fig 1: Stabilizer Shaft Link
    G00357866Courtesy of GENERAL MOTORS CORP.
  3. Remove the stabilizer shaft link.
