Rear Suspension Location Index

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

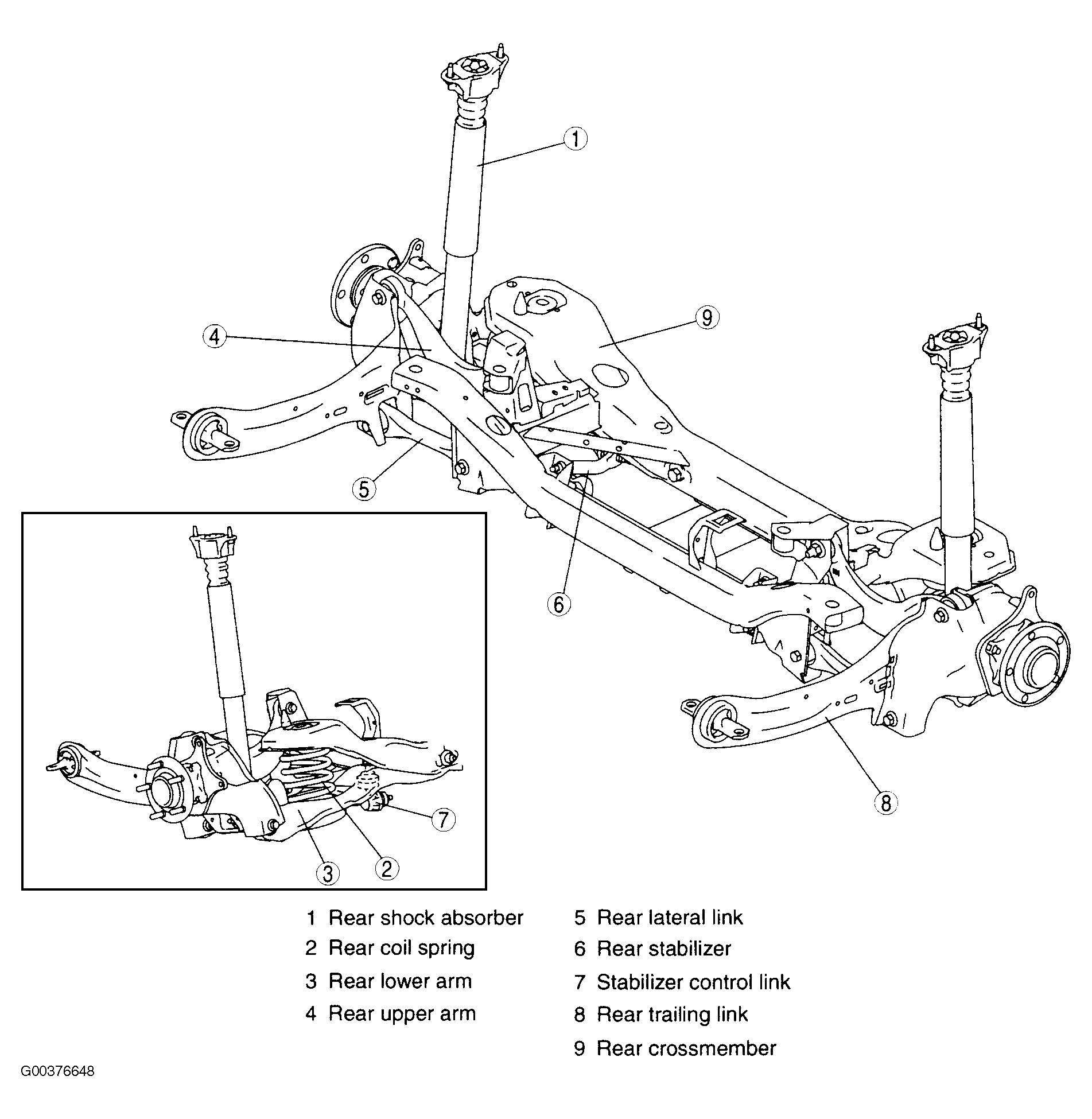

Fig 1: Identifying Rear Suspension Components
G00376648Courtesy of MAZDA MOTORS CORP.
