Knuckle Bushing Replacement - Upper: Removal

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the tire and wheel.
  3. Remove the upper control arm to knuckle nut and bolt. See Figure.
  4. Separate the upper control arm from the knuckle.
  5. Using the J-45265, remove the upper control arm bushing from the knuckle assembly.

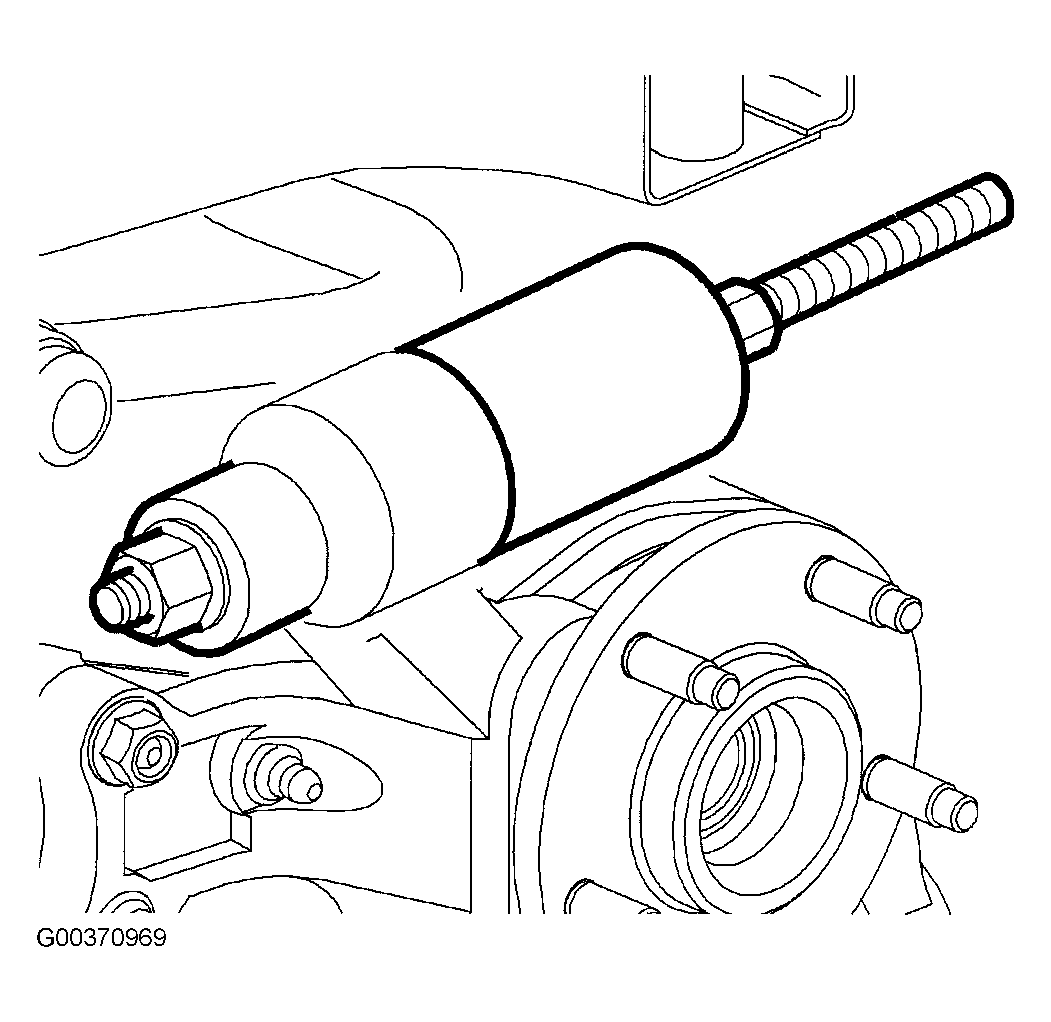

    Fig 1: Using J-45265 To Remove Upper Control Arm Bushing
    G00370969Courtesy of GENERAL MOTORS CORP.
