Refer to illustrations for STARTER SOLENOID DOES NOT CLICK symptom test. See Fig 1
-Fig 3
.

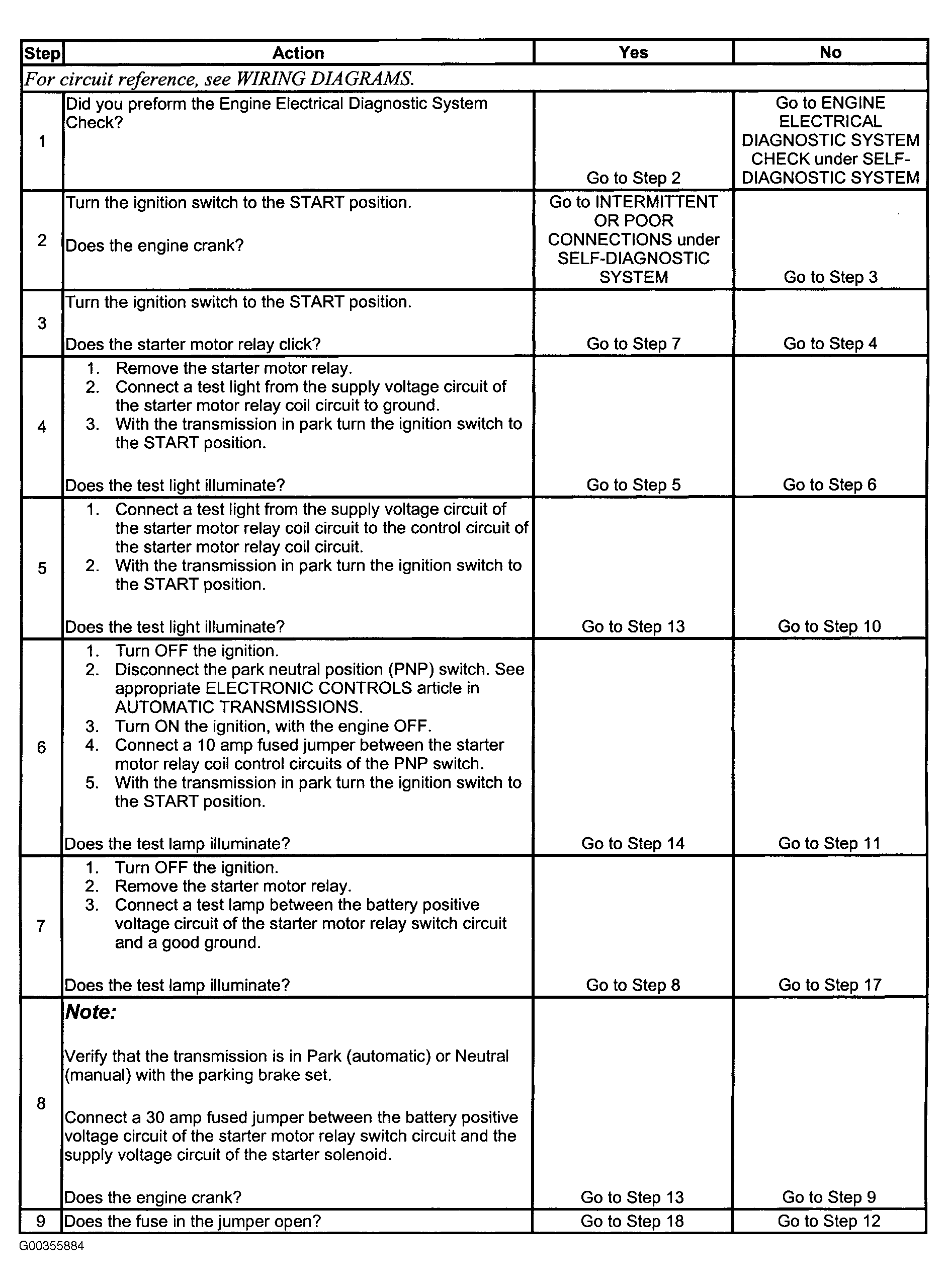

Fig 1: Starter Solenoid Does Not Click Symptom Test (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

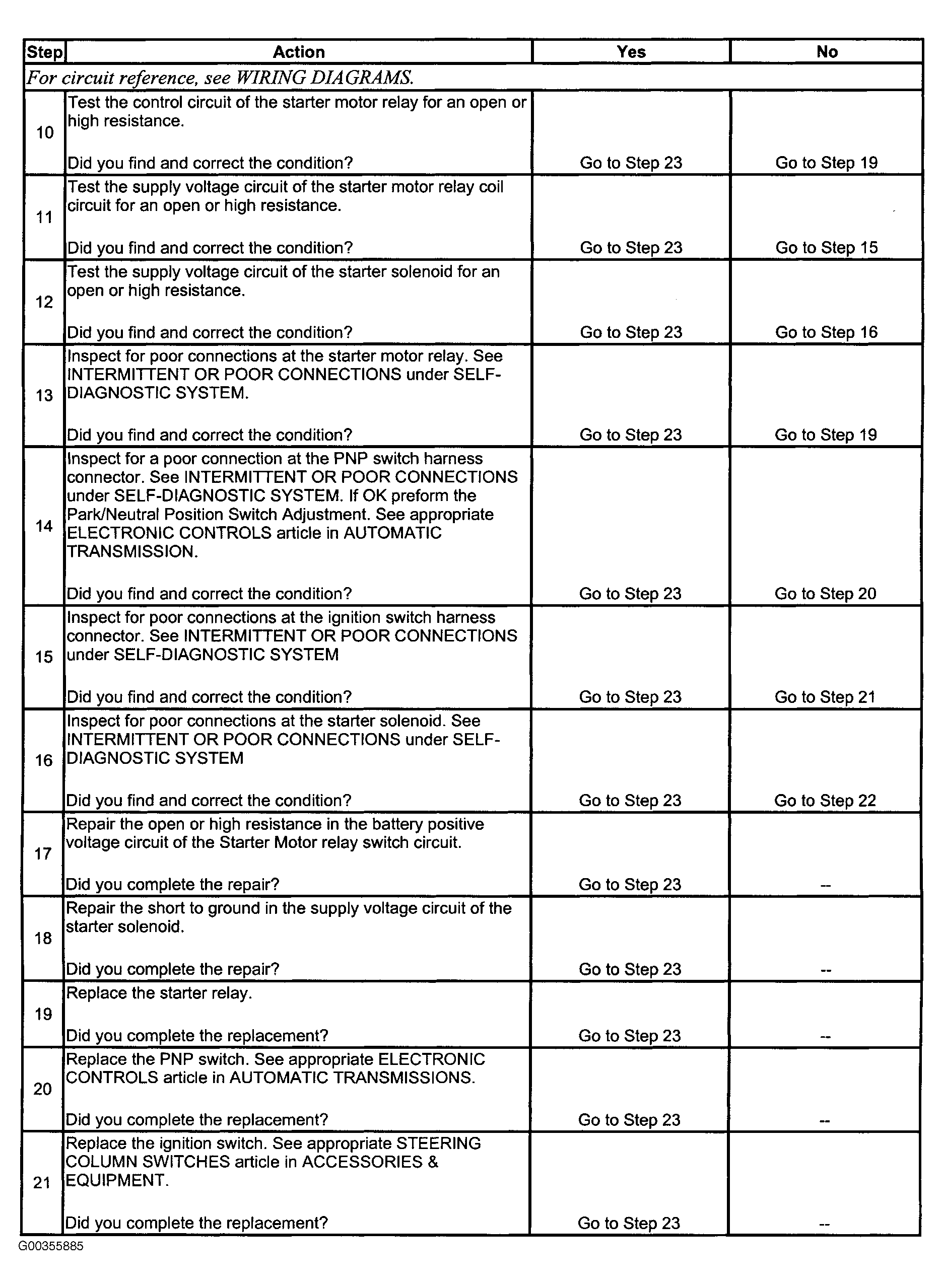

Fig 2: Starter Solenoid Does Not Click Symptom Test (2 Of 3)
Courtesy of GENERAL MOTORS CORP.

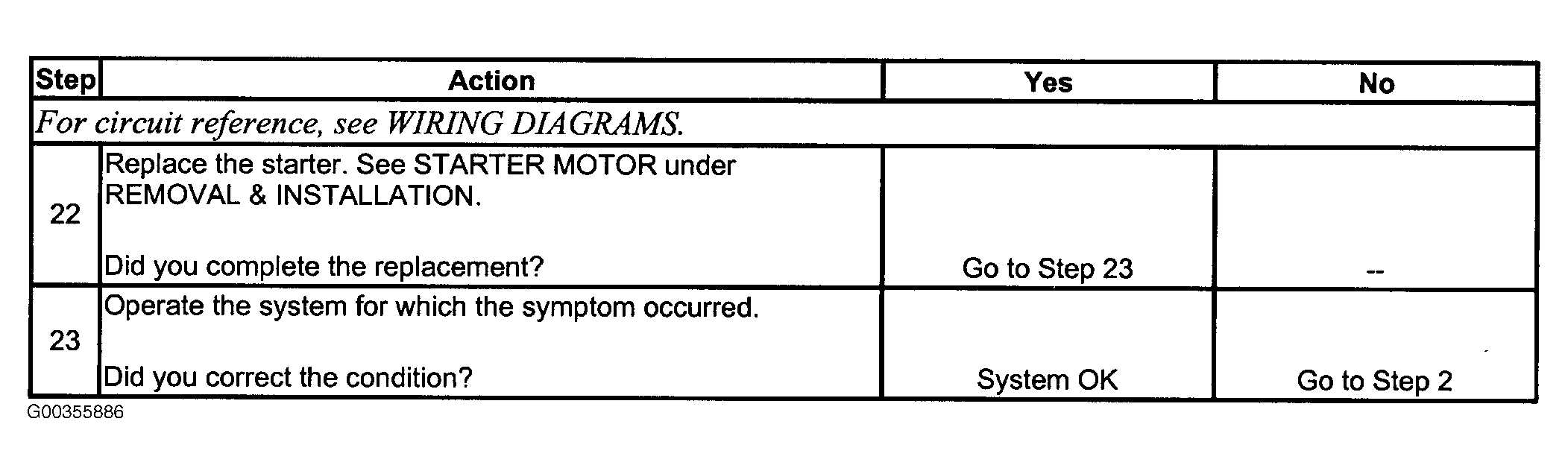

Fig 3: Starter Solenoid Does Not Click Symptom Test (3 Of 3)
