Starter Motor: Removal

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable.
  2. Raise and support the vehicle.
  3. Remove the starter motor mounting bolts.
  4. Remove any shims previously used.
  5. Lower the starter motor.
  6. Disconnect the starter enable relay lead, the battery positive cable, and the generator output (BAT) lead from the starter solenoid field leads. See Fig 1 .
  7. Remove the starter motor.

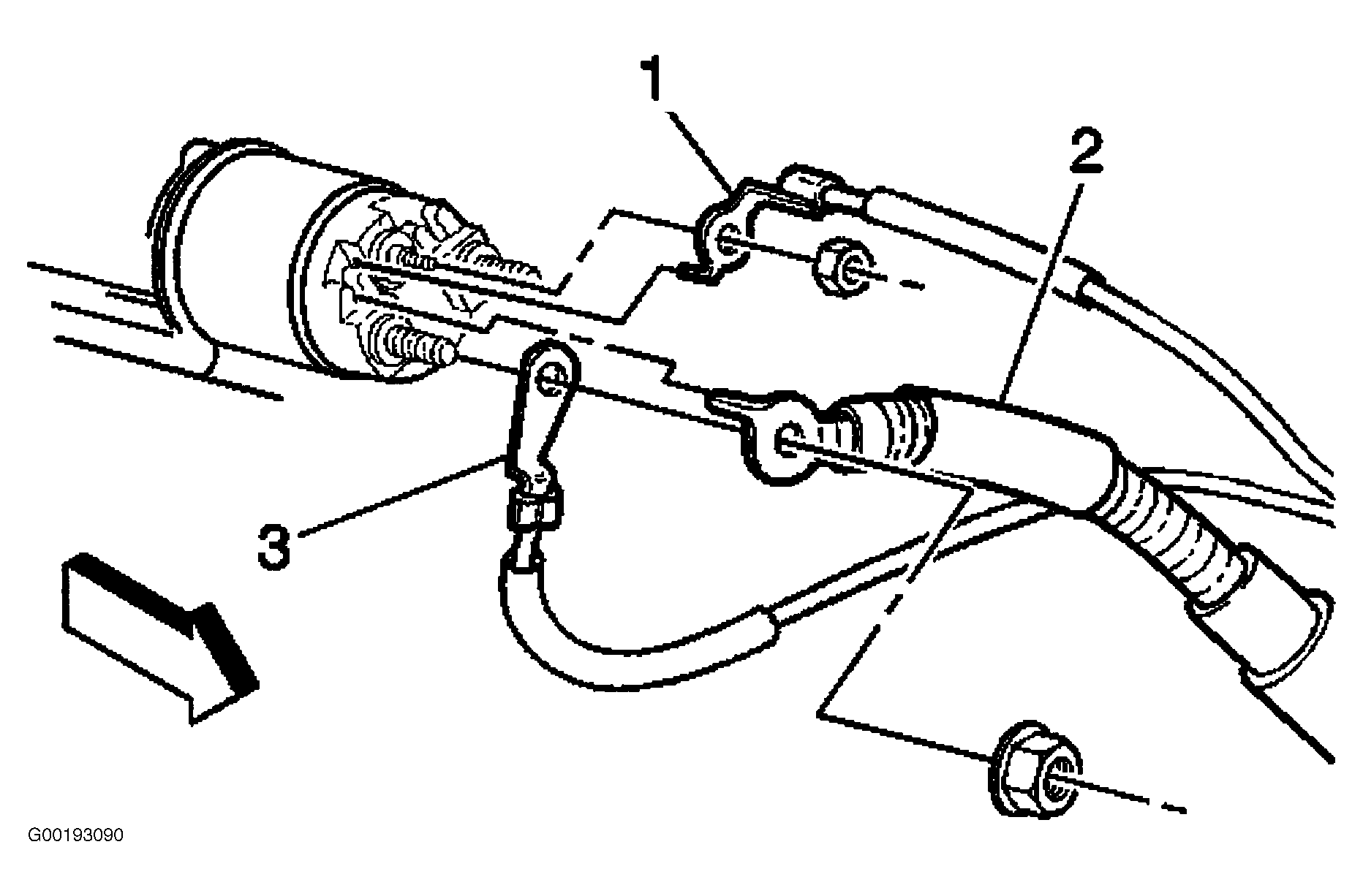

Fig 1: Identifying Starter Motor Electrical Connectors
G00193090Courtesy of GENERAL MOTORS CORP.
