Cylinder Head Bolt Disassembly Note

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2009 Mazda B2300, 2009 Mazda 5, 2008 Mazda Tribute, 2008 Mazda B2300, and 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the cylinder head bolts in 2-3 passes in the order shown in the figure.

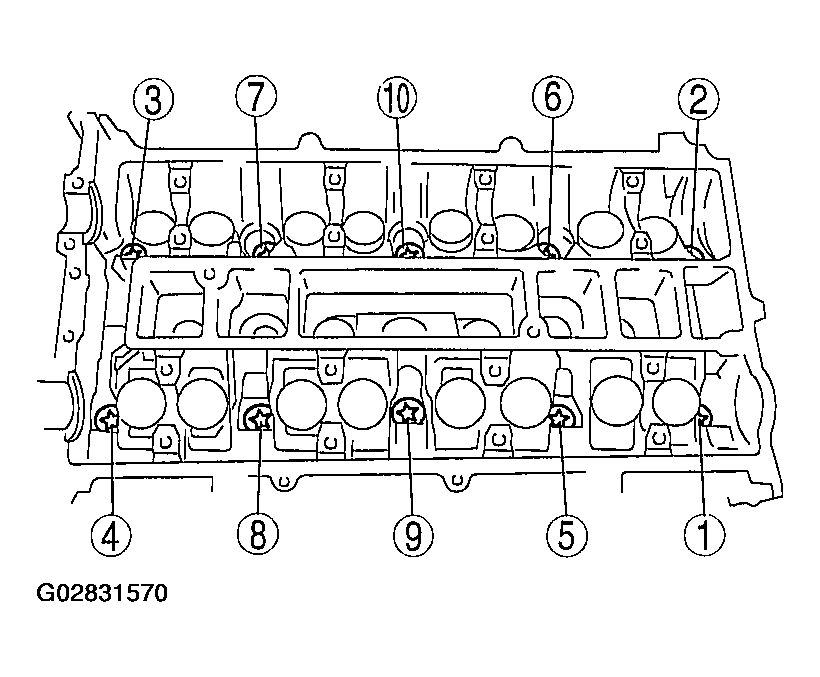

    Fig 1: Cylinder Head Bolt Removal Sequence
    G02831570Courtesy of MAZDA MOTORS CORP.
