Camshaft Cap Disassembly Note

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2009 Mazda B2300, 2009 Mazda 5, 2008 Mazda Tribute, 2008 Mazda B2300, and 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE:
    • The camshaft caps are numbered to make sure they are assembled in their original positions. When removed, keep the caps with the cylinder head they were removed from. Do not mix the caps.
  1. Before removing the camshaft caps, inspect the following:
  2. Loosen the camshaft caps bolts in 2-3 passes in the order shown in the figure.

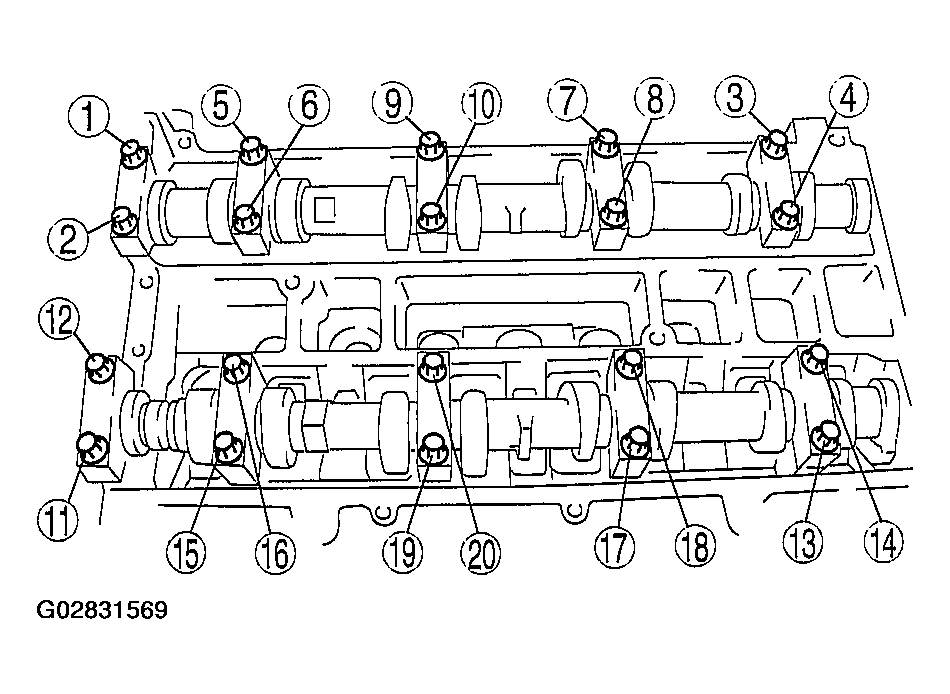

    Fig 1: Camshaft Cap Bolt Removal Sequence
    G02831569Courtesy of MAZDA MOTORS CORP.
