Removal (Pickup w/4.8L, 5.3L & 6.0L Engines)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, and 2003 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Raise and suitably support the vehicle.
  3. Remove the right transmission cover bolt. See Fig 1.
  4. Remove the starter bolts.
  5. Disconnect the oil level sensor electrical connector.
  6. Slide the starter forward until the starter clears the transmission.
  7. Remove the starter lead nut. See Fig 2. Remove the starter lead from the solenoid stud.
  8. Remove the starter lead nut.
  9. Remove the positive cable from the starter stud.
  10. Place the starter on a workbench.
  11. Unsnap the transmission cover from the starter.
  12. If necessary, remove the starter shield.

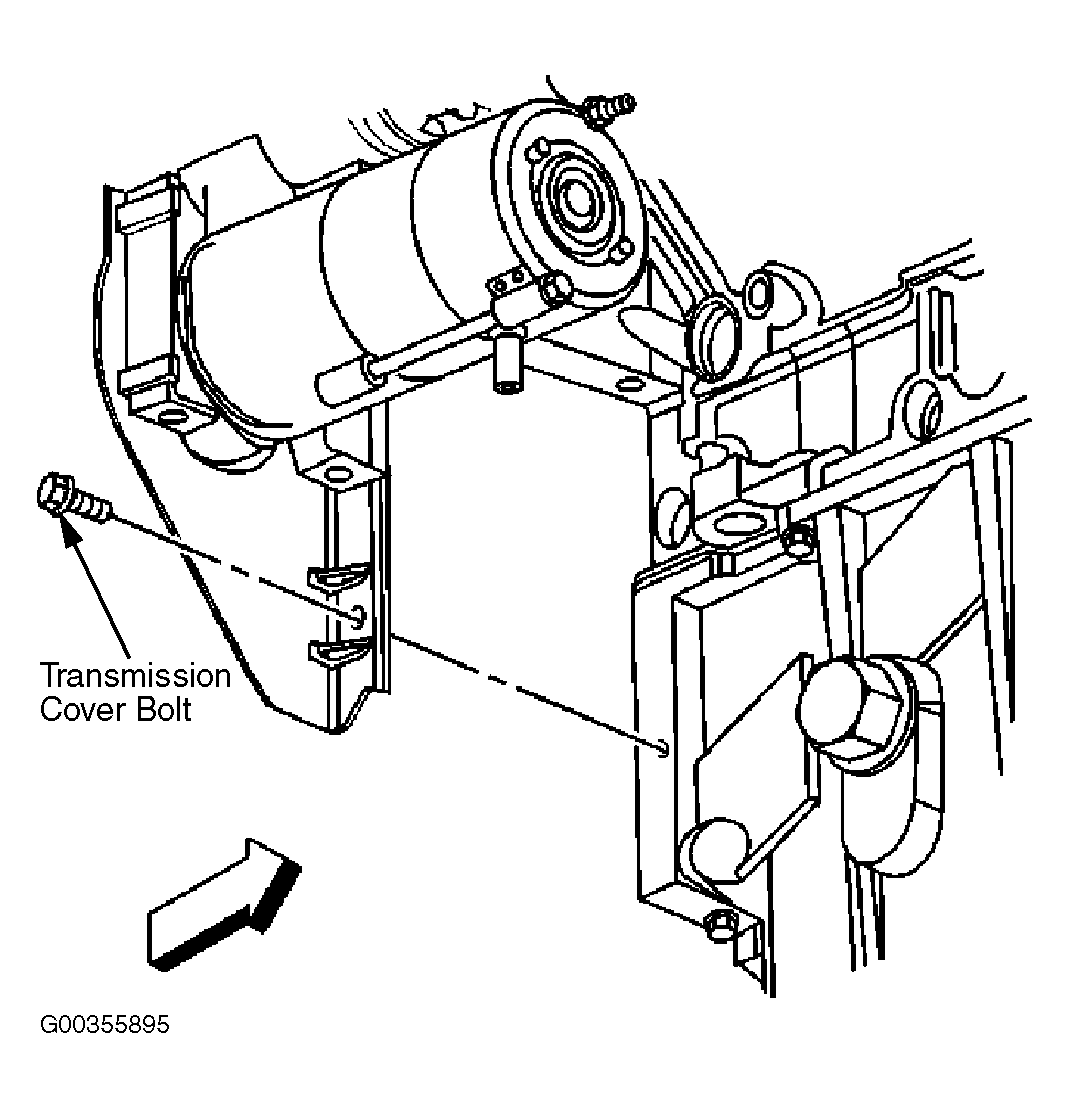

Fig 1: Identifying Transmission Cover Bolt
G00355895Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Starter Lead
G00355897Courtesy of GENERAL MOTORS CORP.
