Park Brake Pedal Assembly: Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Pull down on the intermediate park brake cable near the park brake connector (2). Remove the front park brake cable from the cable connector (1). See Fig 1 .
  2. Using Park Brake Cable Adjustment Tool, remove the park brake cable from the floor retainer. Lower the vehicle. Remove the left closeout/insulator panel to access the park brake lever assembly. See appropriate GAUGES & INSTRUMENT PANELS article in ACCESSORIES & EQUIPMENT. Remove the left carpet retainer.
  3. Pull the carpet back to expose the park brake cable. Remove the grommet from the floor pan. See Fig 2 .
  4. Disconnect the electrical connector from the park brake warning lamp switch. See Fig 3 .
  5. Remove the park brake lever assembly attaching nuts. Remove the park brake lever and cable assembly from the vehicle. See Fig 4 .
Fig 1: Releasing Intermediate Park Cable
G00284590Courtesy of GENERAL MOTORS CORP.

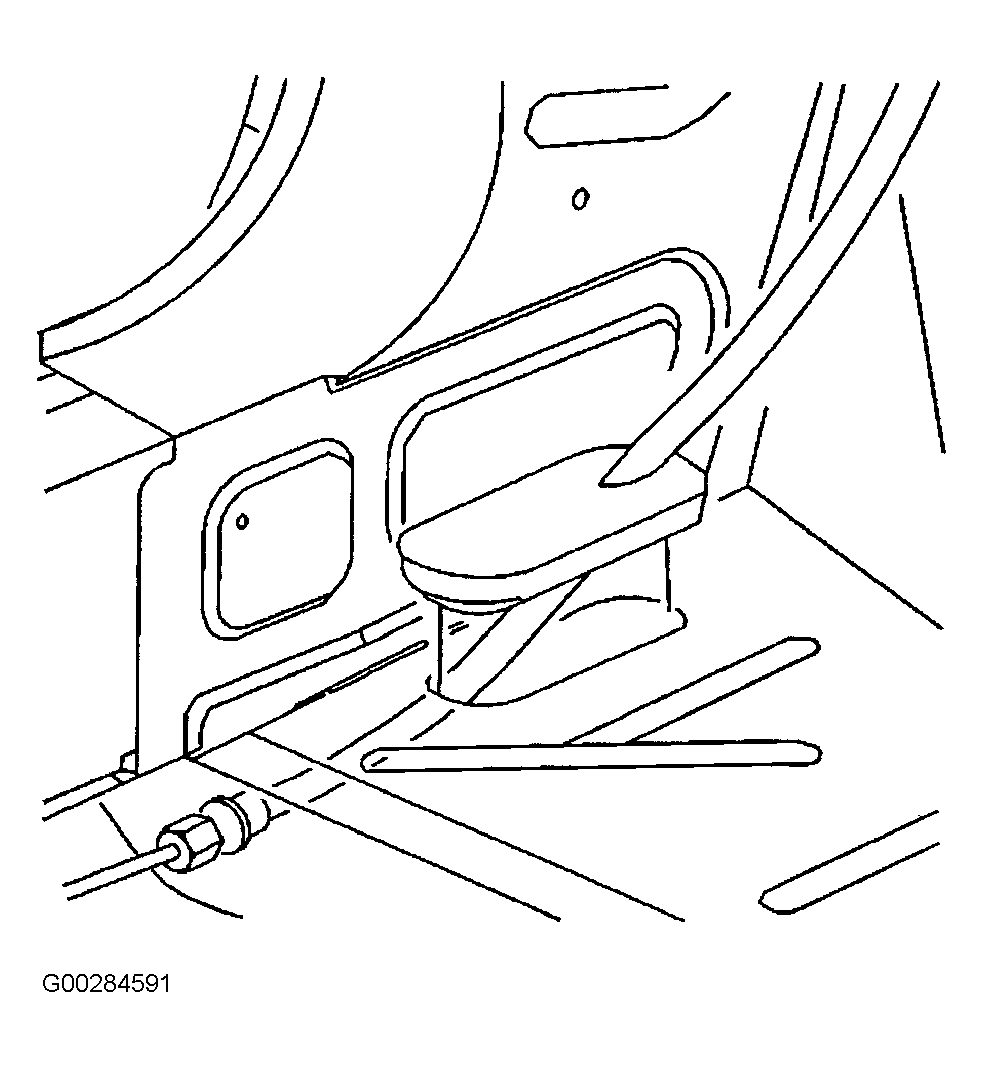

Fig 2: Viewing Park Brake Cable
G00284591Courtesy of GENERAL MOTORS CORP.

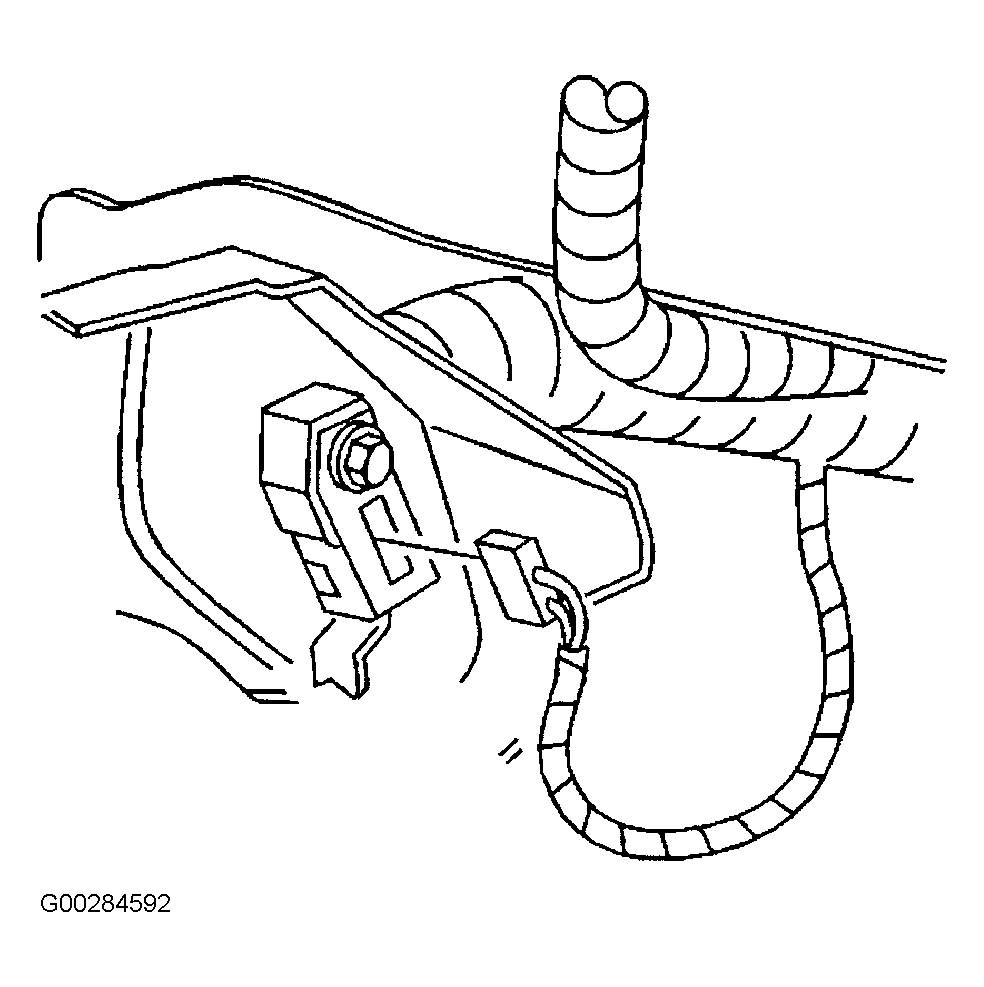

Fig 3: Disconnecting Parking Brake Lamp Switch
G00284592Courtesy of GENERAL MOTORS CORP.
Fig 4: Removing Parking Brake Lever
G00284593Courtesy of GENERAL MOTORS CORP.
