Removal (Left Rear)

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Remove the left rear tire and wheel assembly. Remove the front park brake cable from the cable guides. Pull down on the intermediate park brake cable (2) near the park brake connector (1). Disconnect the intermediate park brake cable (2) from the park brake cable connector (1). See Figure .
  2. Disconnect the left rear park brake cable (2) from the equalizer (1). See Fig 1 .
  3. Remove the left park brake cable guide bolt (3). See Fig 2 .
  4. Disconnect the left park brake cable (2) from the park brake lever (3). Use the parking brake cable release tool to depress the locking tabs on the left park brake cable (2). Remove the left park brake cable (2) from the caliper park brake cable bracket (1). See Fig 3 .
  5. Use the parking brake cable release tool to depress the locking tabs on the left park brake cable. Remove the left park brake cable from the rear support mounting bracket (1). See Fig 4 .
Fig 1: Disconnecting/Connecting Rear Park Brake Cable
G00284596Courtesy of GENERAL MOTORS CORP.

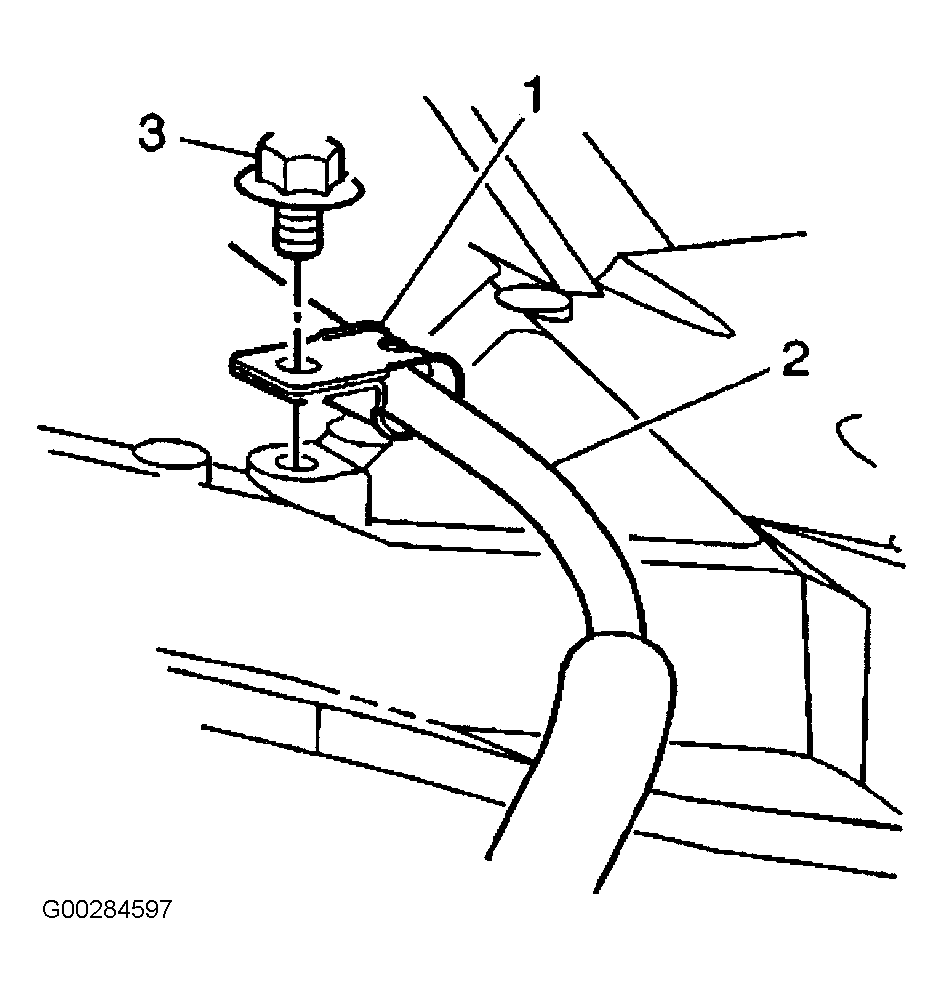

Fig 2: Removing/Installing Parking Brake Cable Guide Bolt
G00284597Courtesy of GENERAL MOTORS CORP.
Fig 3: Disconnecting/Connecting Parking Brake Cable
G00284598Courtesy of GENERAL MOTORS CORP.
Fig 4: Depressing Lock Tabs
G00284599Courtesy of GENERAL MOTORS CORP.
