Axle Shaft: Inspection

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the dust boot on the axle shaft for cracks, damage, leaking grease, and looseness in the boot band. See Fig 1 .
  2. Inspect the axle shaft for bends, cracks, and wear in the joint or splines. Repair or replace the axle shaft or boot/band as necessary.

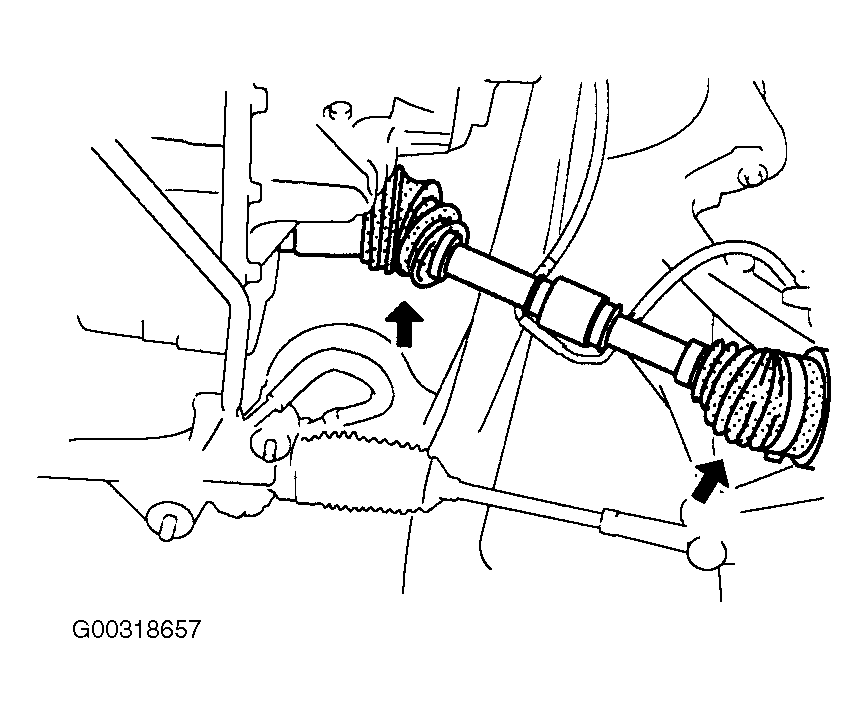

Fig 1: Inspecting Axle Shaft
G00318657Courtesy of MAZDA MOTORS CORP.
