Axle Shaft (Tripod Joint): Disassembly: Notes

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the illustration. See Fig 1 .

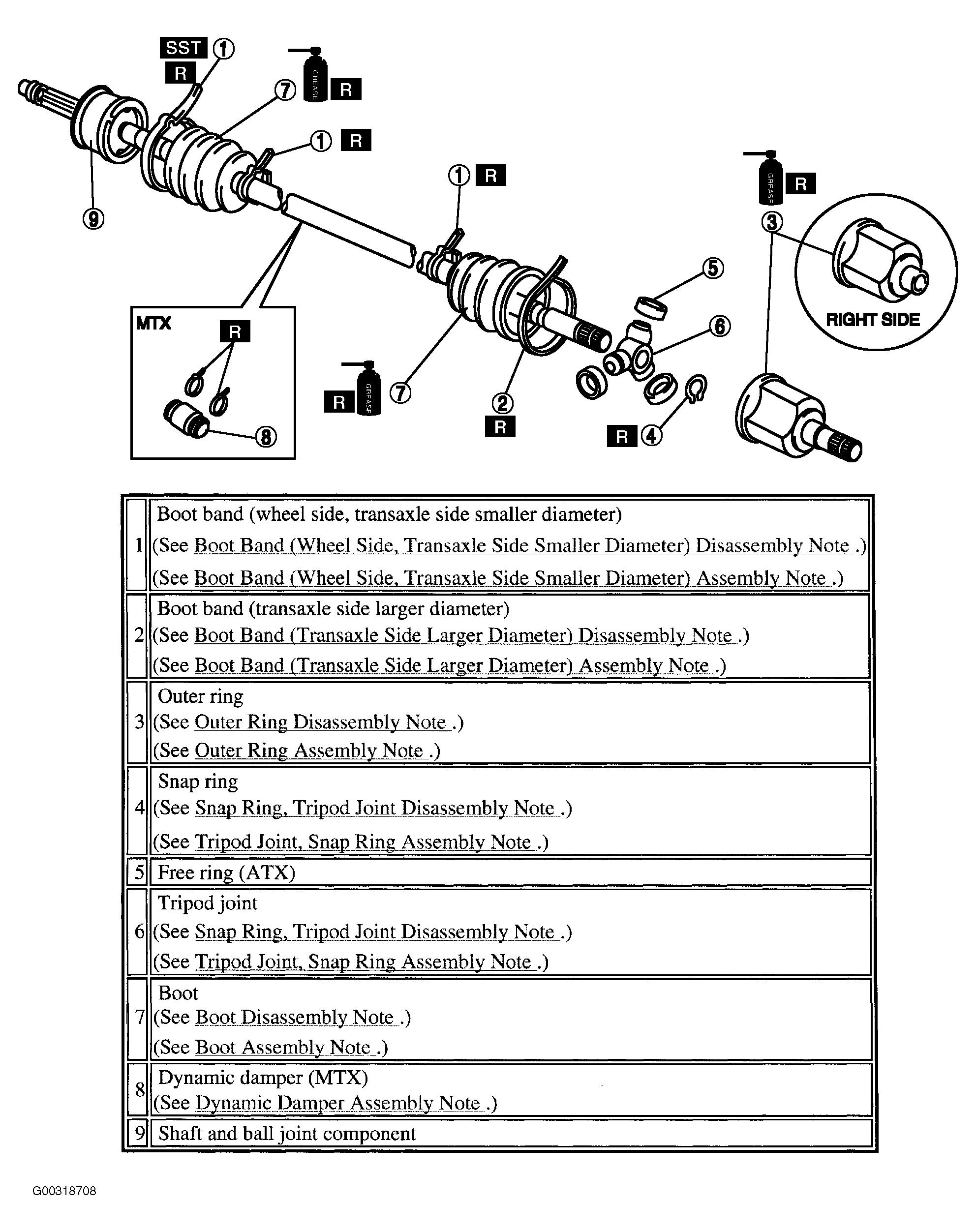

Fig 1: Exploded View (Tripod Joint) Axle Shaft
G00318708Courtesy of MAZDA MOTORS CORP.
