Cage, Inner Ring, Balls, Snap Ring Assembly Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Tap the inner ring using a plastic hammer while spreading the snap ring, and assemble the inner ring to the axle shaft. See Fig 1 .
Align the marks and install the balls and cage to the inner ring as shown in the illustration. See Fig 2 .

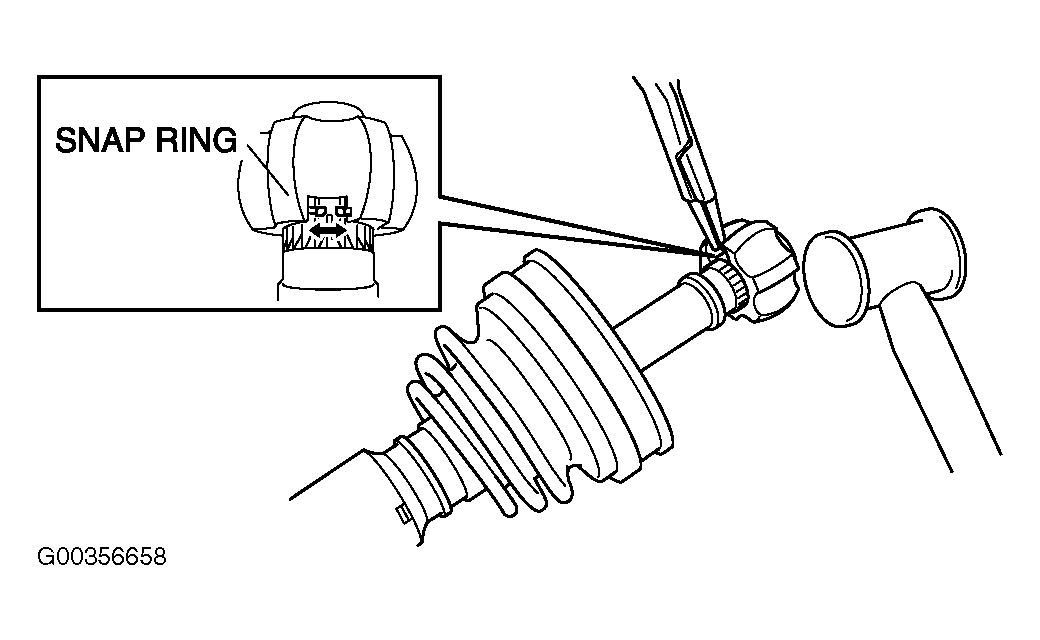

Fig 1: Assembling Snap Ring

Courtesy of MAZDA MOTORS CORP.

Fig 2: Assembling Inner Ring, Balls & Cage

Courtesy of MAZDA MOTORS CORP.
