Right (Passenger's Side)

WARNING: This page is about a different car, the 2003 Chevrolet Malibu and 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Right instrument panel junction block is located at the passenger's side end of the instrument panel. To access fuses, open the fuse panel door by pulling on it.

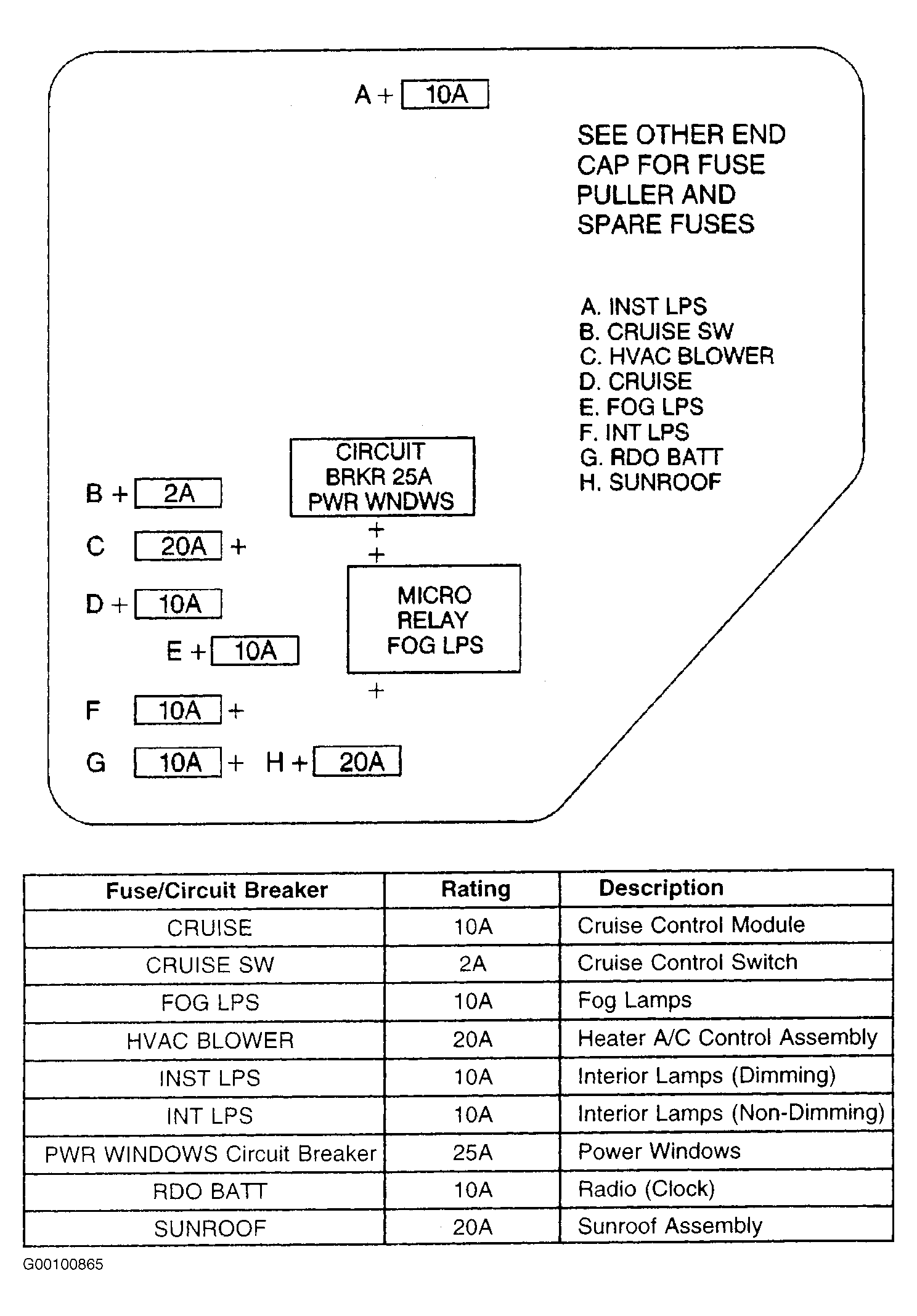

Fig 1: Identifying Right Instrument Panel Junction Block Components And Relays
G00100865Courtesy of GENERAL MOTORS CORP.
RIGHT INSTRUMENT PANEL JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Fog Lamps Relay
