Installation (Hydraulic Boost)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, and 2003 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the master cylinder reservoir. See MASTER CYLINDER RESERVOIR .
  2. Bench bleed the master cylinder. See MASTER CYLINDER BENCH BLEEDING  under BLEEDING BRAKE SYSTEM.

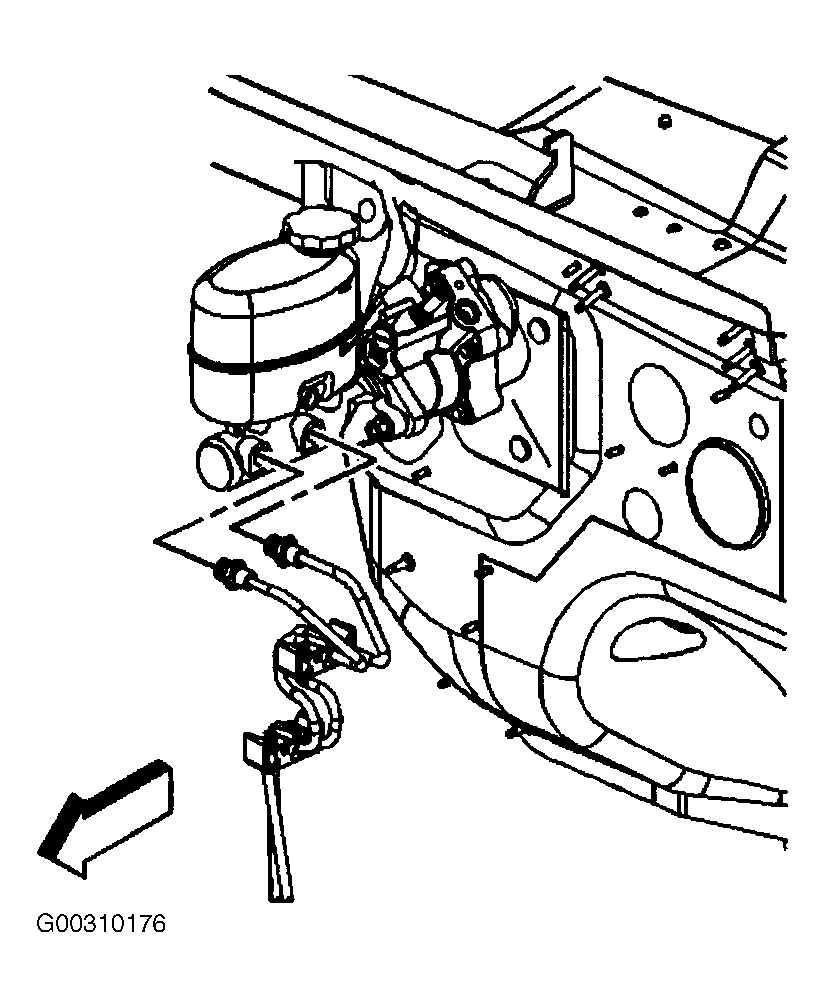

  3. Install the master cylinder to the vehicle. See Figure.
  4. Install the master cylinder mounting nuts. Tighten the nuts to specification. See TORQUE SPECIFICATIONS .
  5. Remove the rubber cap or plug from the exposed brake pipe fitting ends. See Figure.
  6. Connect the brake pipes. Tighten the pipe fittings to specification. See TORQUE SPECIFICATIONS .
  7. Connect the electrical connector to the brake fluid level sensor.
  8. Bleed the hydraulic brake system. See BLEEDING BRAKE SYSTEM .
  9. Release the park brake and unblock the wheels.
