Installation - Equalizer

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the equalizer assembly to the front park brake cable. See Fig 3.
  2. Connect the front park brake cable to the right rear cable at the connector clip. See Fig 1.
  3. Connect the left rear park brake cable and adjustment stud assembly to the equalizer assembly by installing the adjustment stud to the equalizer nut.
  4. Adjust the park brake. See appropriate procedure under PARK BRAKE  in ADJUSTMENTS & INSPECTION.
  5. Lower the vehicle.

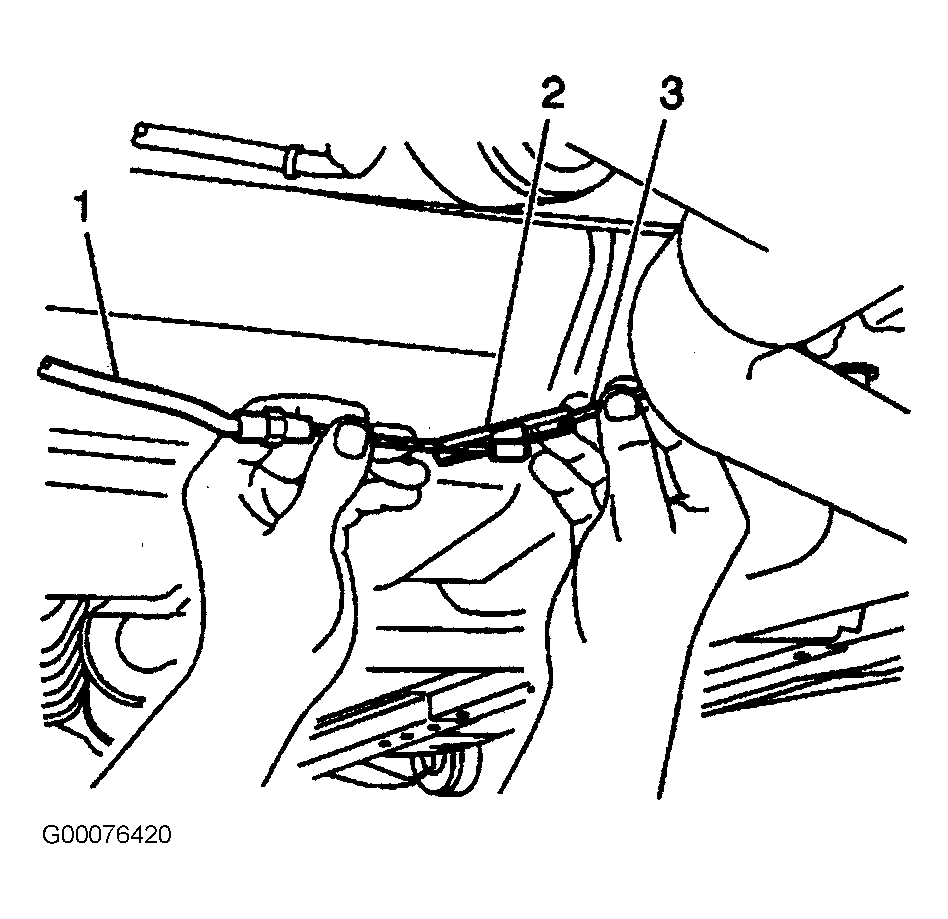

Fig 1: Disconnecting Front Park Brake Cable From Right Rear Cable
G00076420Courtesy of GENERAL MOTORS CORP.

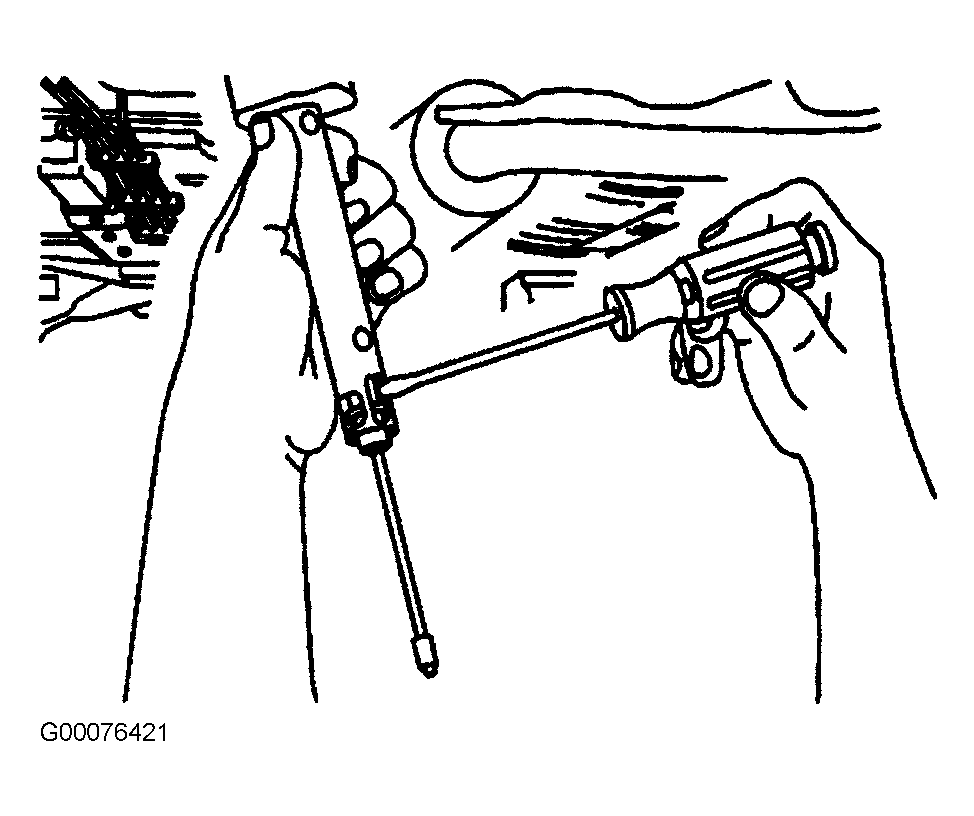

Fig 2: Removing Equalizer Assembly From Front Park Brake Cable
G00076421Courtesy of GENERAL MOTORS CORP.
Fig 3: Equalizer Assembly
G00076422Courtesy of GENERAL MOTORS CORP.
