Brake Pedal: Installation
WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
- If the brake pedal pivot bushing is damaged or worn, replace the bushing using the following procedure:
- Squeeze the end that will be facing the brake pedal pivot nut.
- Insert the bushing into the pivot hub just enough to hold the bushing in place.
- Rapidly push the bushing through the hub until the bushing snaps in place.

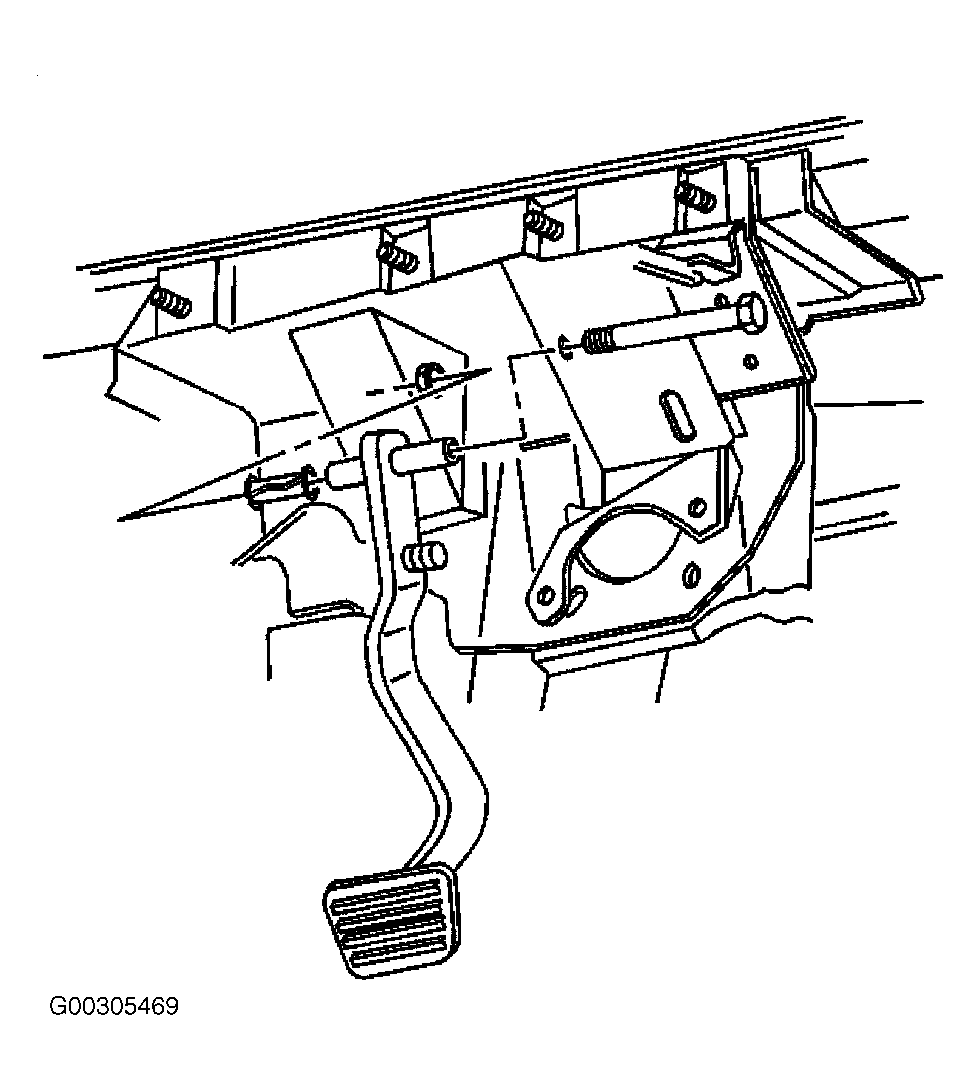

- Install the brake pedal.
- Install the NEW brake pedal pivot bolt and the brake pedal pivot nut. Tighten the brake pedal pivot bolt to specification. See TORQUE SPECIFICATIONS .
- Install the steering column. See appropriate STEERING COLUMNS article in STEERING.
