Removal & Installation

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Using a small flat-bladed tool, remove the ignition switch bezel. See Fig 1. Remove instrument panel accessory trim plate, by pulling rearward to release retainers. See Fig 2. Remove control assembly screws and remove control assembly from accessory trim plate. See Fig 3. Disconnect electrical and vacuum connectors. See Fig 4. To install, reverse removal procedure.

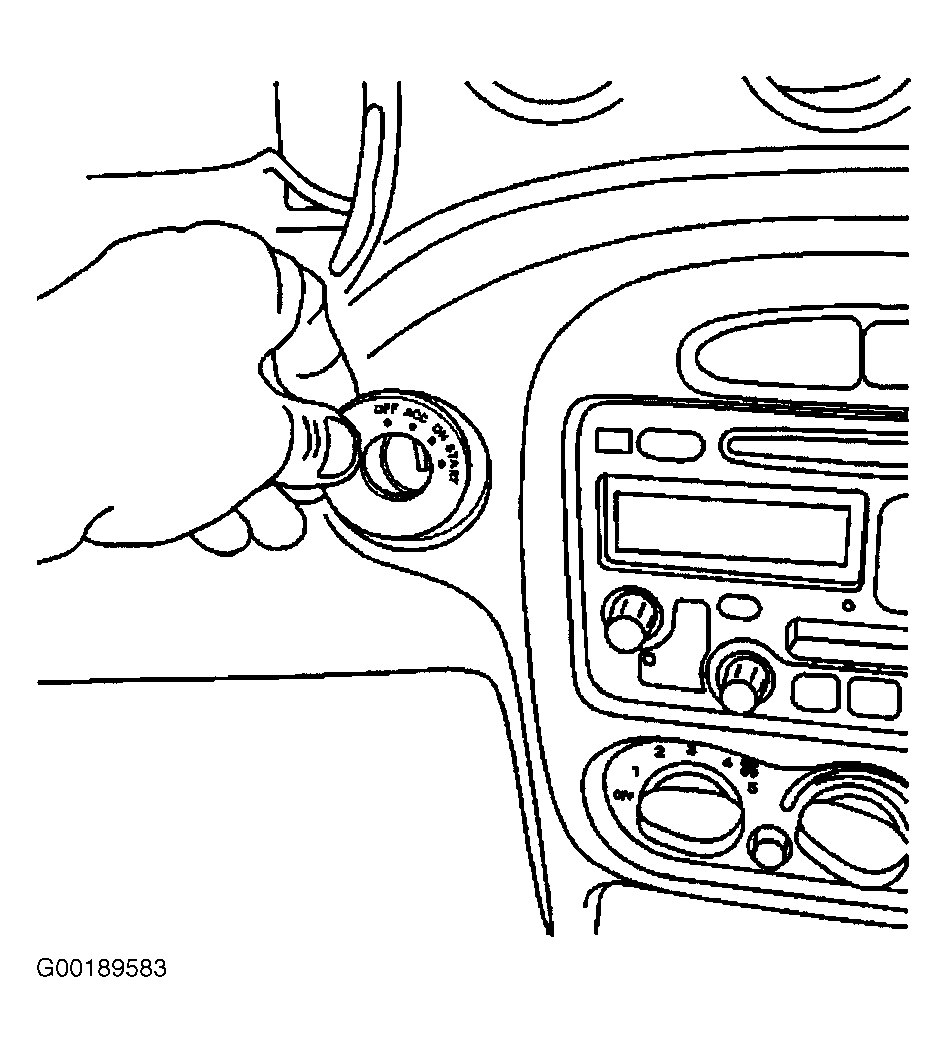

Fig 1: Removing & Installing Ignition Switch Bezel

Courtesy of GENERAL MOTORS CORP.

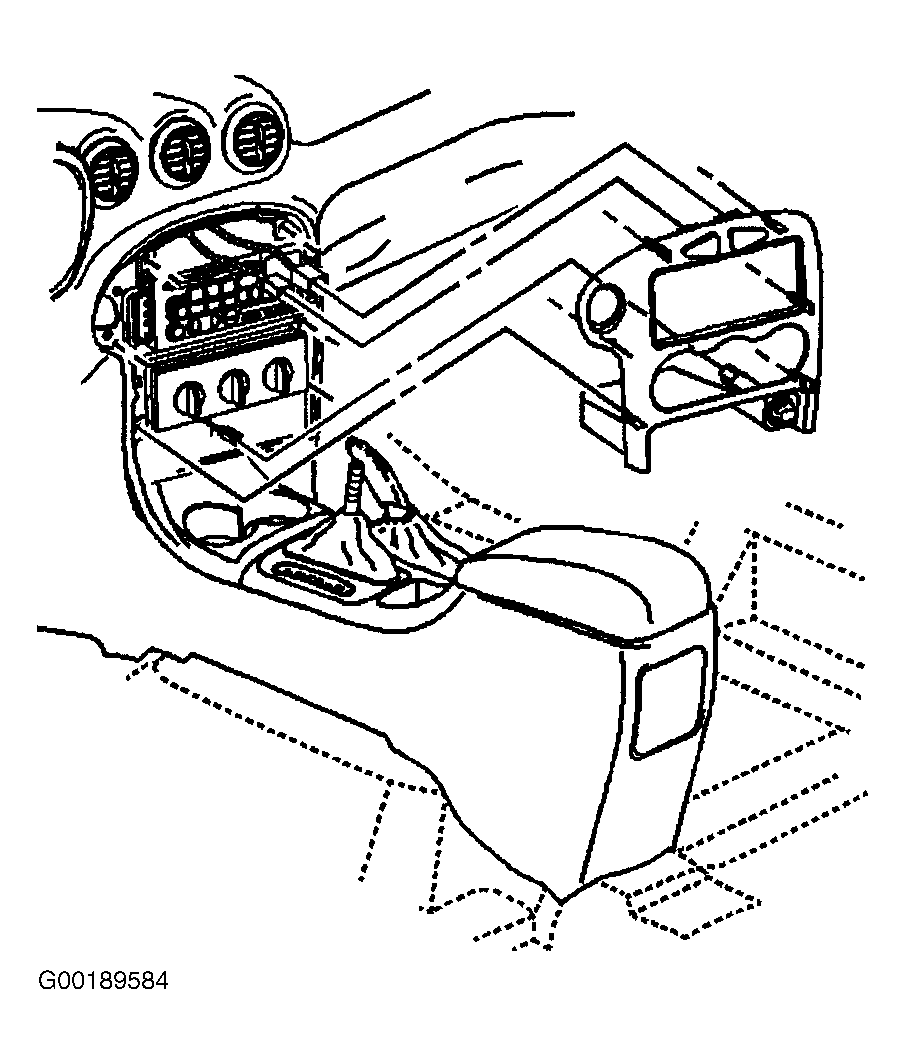

Fig 2: Removing & Installing Accessory Panel Trim Plate

Courtesy of GENERAL MOTORS CORP.

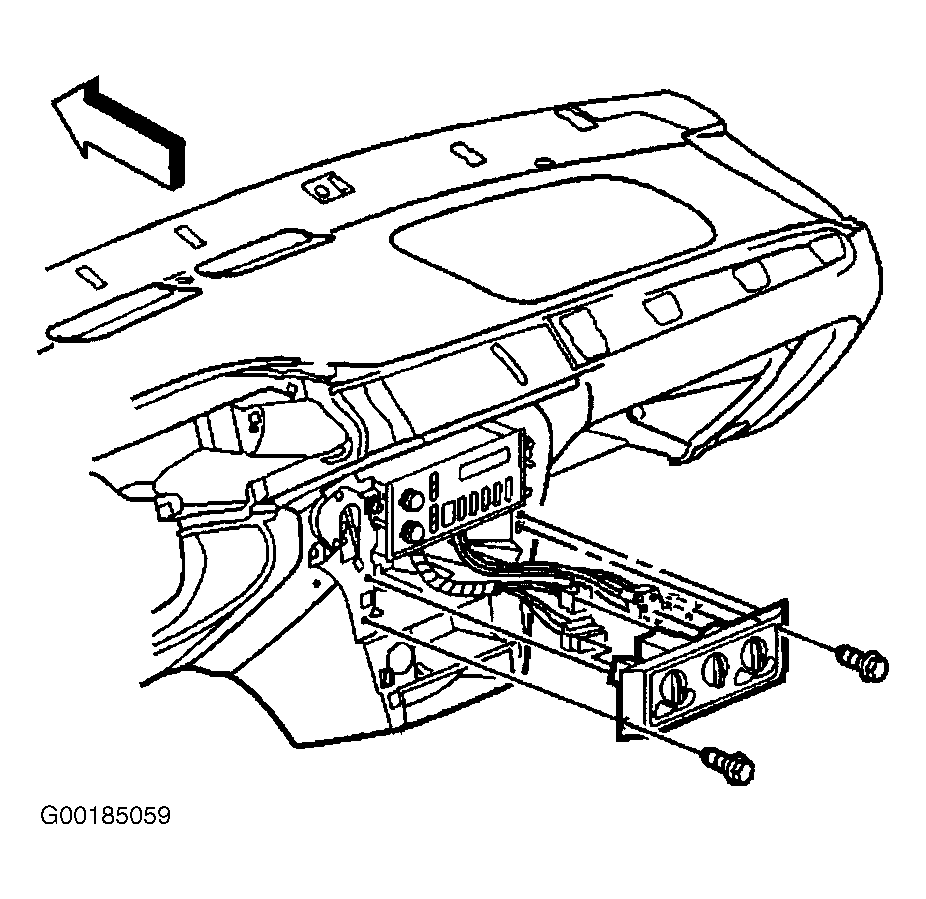

Fig 3: Removing & Installing HVAC Control Assembly

Courtesy of GENERAL MOTORS CORP.

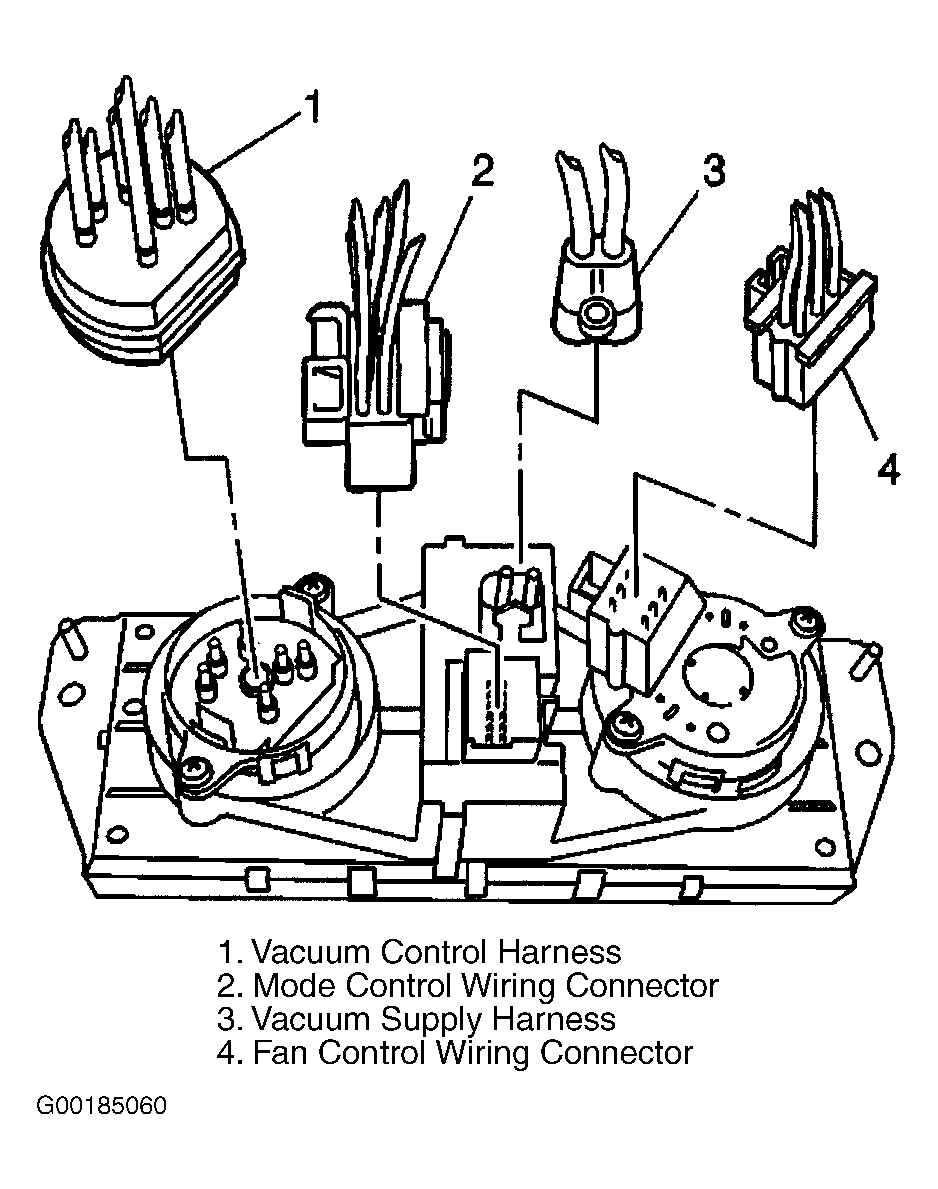

Fig 4: Identifying HVAC Control Connectors

Courtesy of GENERAL MOTORS CORP.
