Removal & Installation

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Remove the electrical center cover. Remove the blower motor relay from the electrical center. See Fig 1. Install the blower relay to the electrical center. Install the electrical center cover.

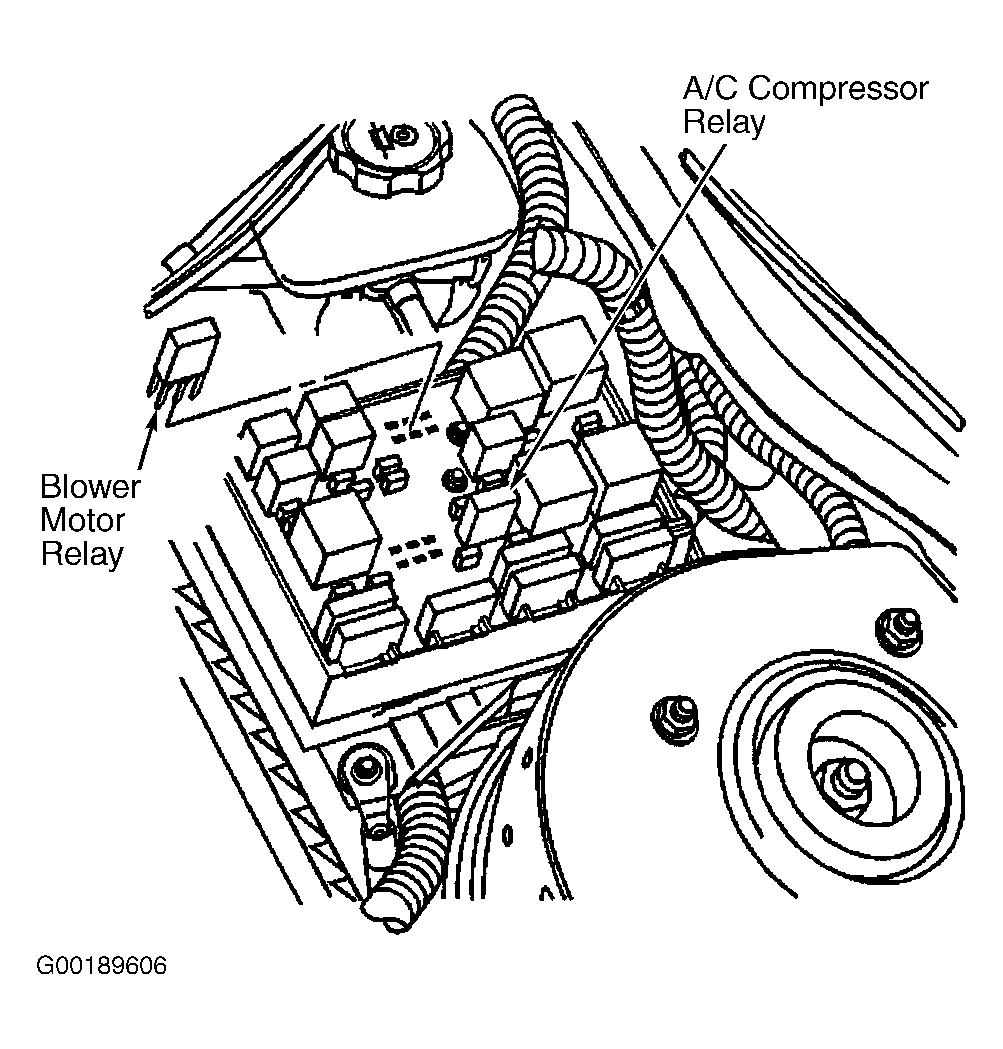

Fig 1: Identifying Underhood Relay Center
G00189606Courtesy of GENERAL MOTORS CORP.
