Removal & Installation (Recirculation Door)
WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

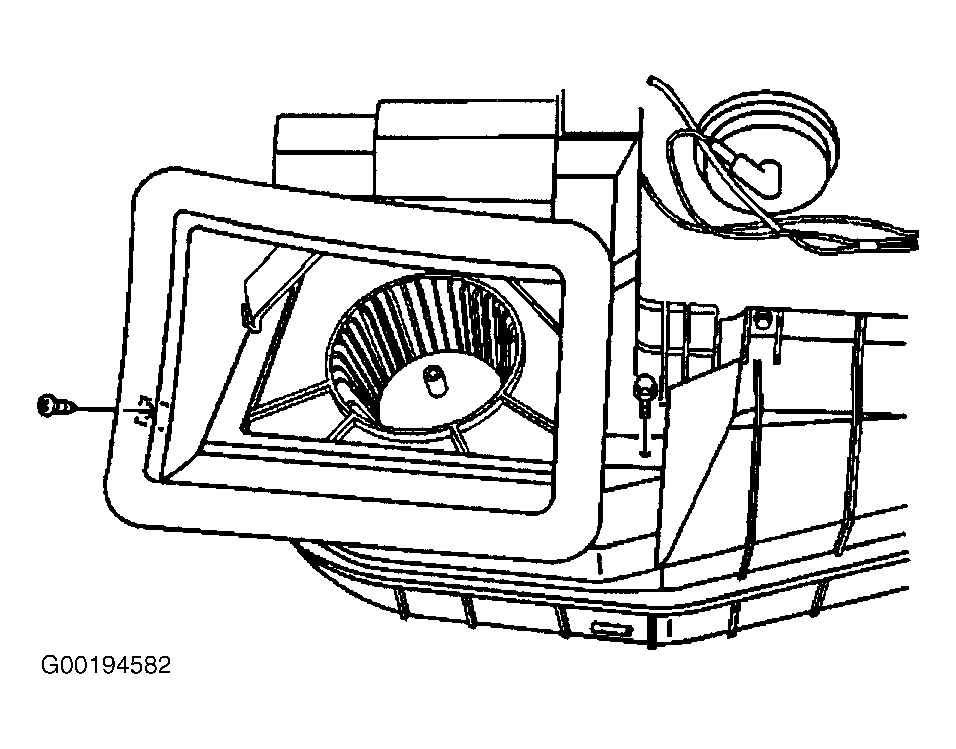

Remove HVAC module assembly. See HVAC MODULE ASSEMBLY . Remove two screws holding recirculation actuator housing to module. Remove recirculation actuator and housing from module. See Fig 1. Remove recirculation door. To install, reverse removal procedure.
