Drive Belt Routing Illustrations

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

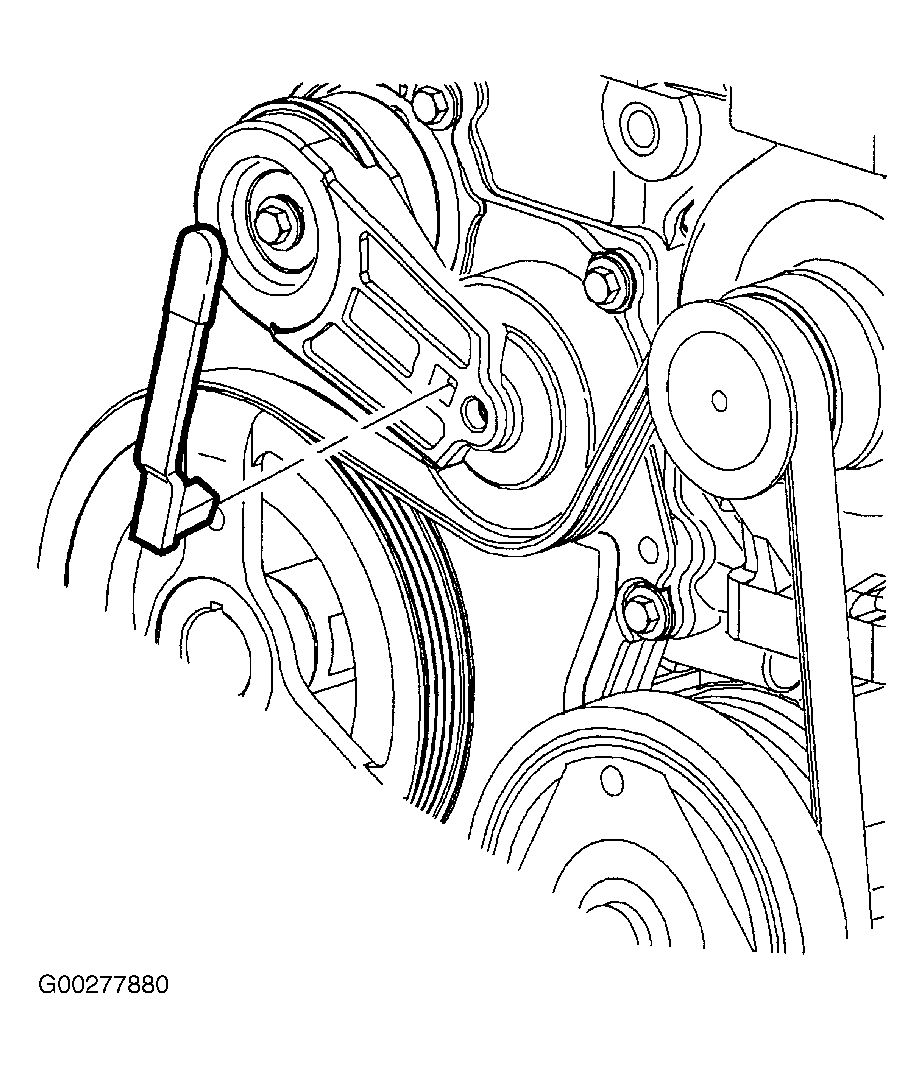

Fig 1: Belt Routing (2.2L)
G00277880Courtesy of GENERAL MOTORS CORP.

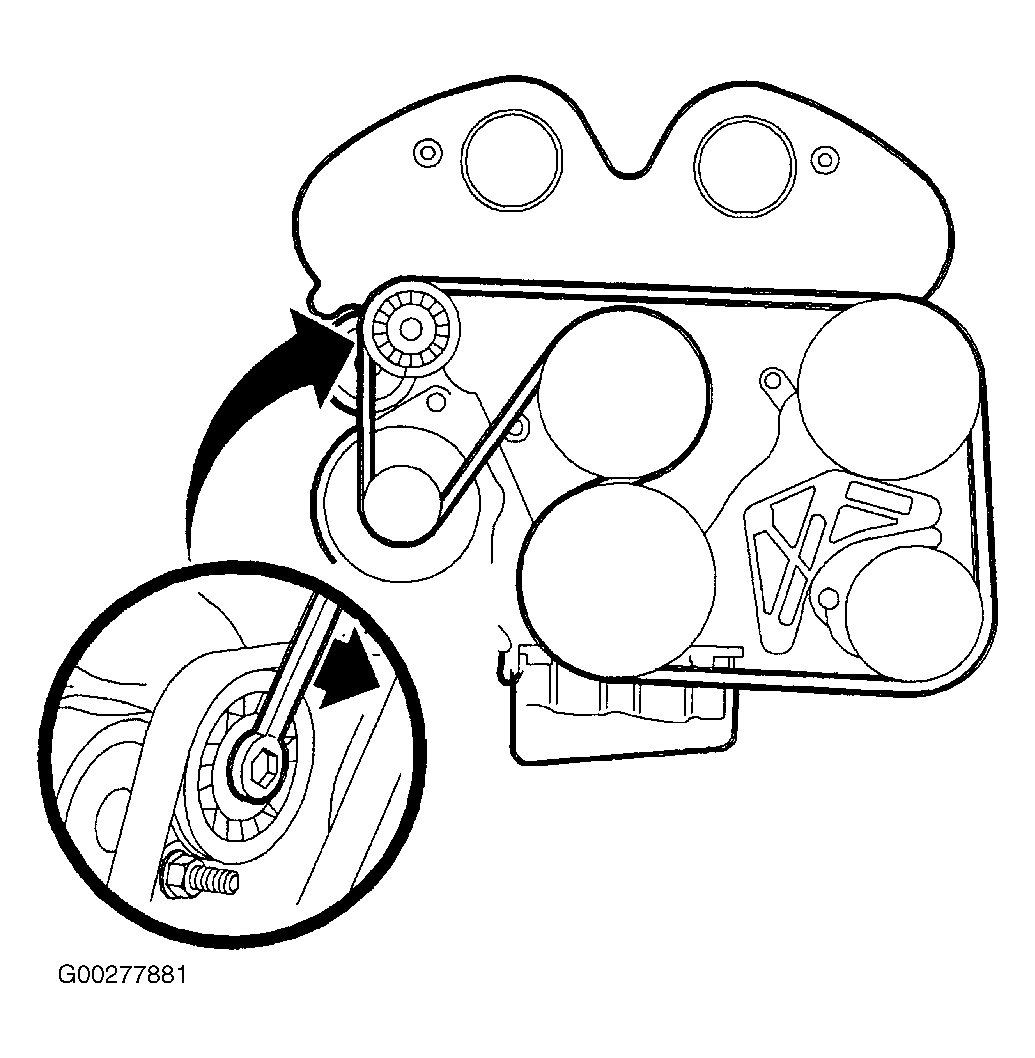

Fig 2: Belt Routing (3.0L)
G00277881Courtesy of GENERAL MOTORS CORP.
