Park Pawl Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, 2003 Chevrolet Cab & Chassis Silverado, and 2002 GMC Sierra. However, it is still accessible from the selected car via links, so may be relevant.
  1. If equipped with a park pawl, install the apply assembly guide. Align tang of C5 piston return spring assembly with notch in main housing. See Fig 1. Install C5 piston return spring assembly. Install pawl support pin into main housing.
  2. Install pawl return spring onto park pawl. See Fig 2. Align and install park pawl with support pin (pawl return spring toward rear). Connect pawl return spring to main housing.

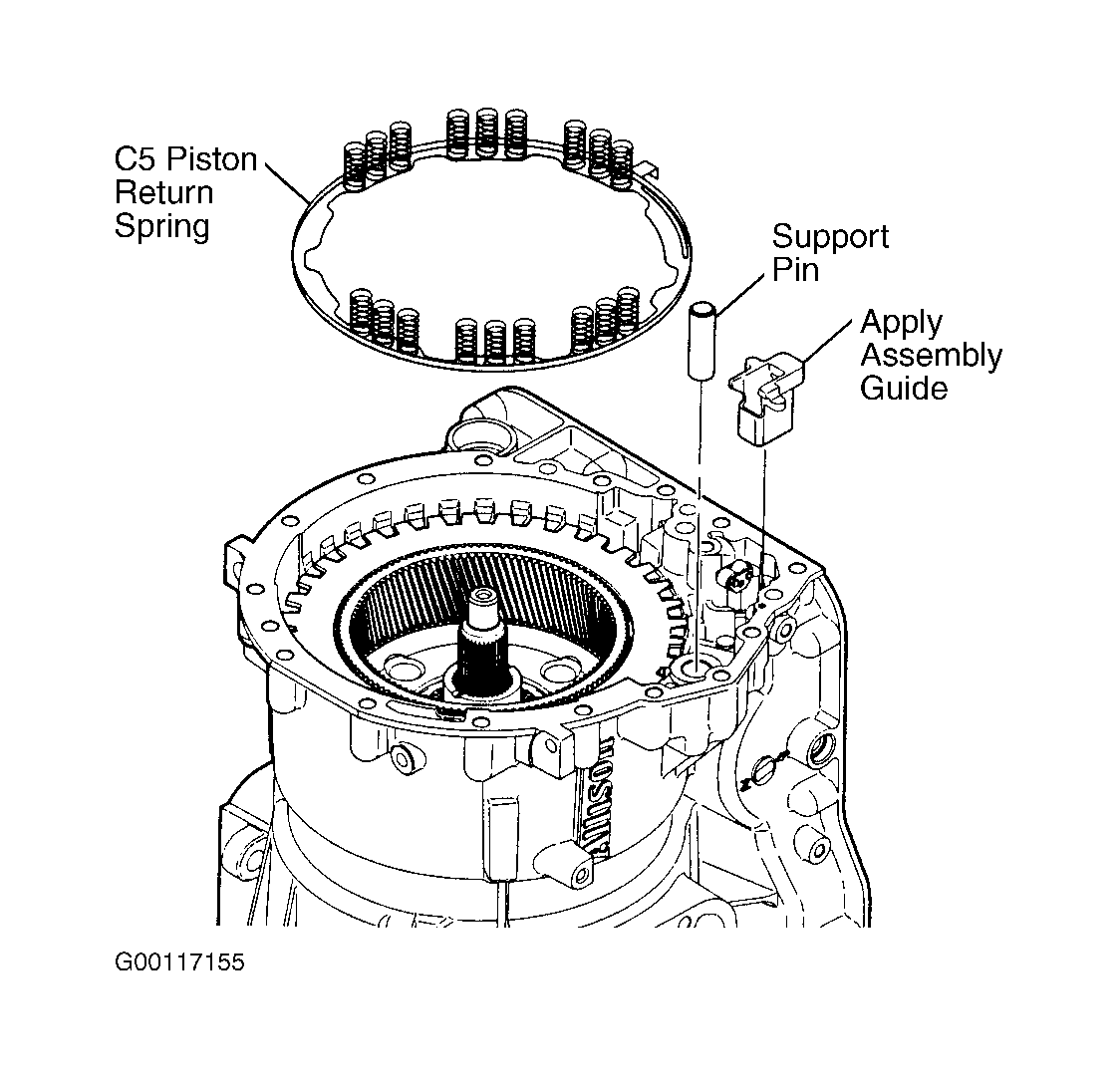

Fig 1: Installing C5 Piston Return Spring Assembly & Park Pawl Support Pin
G00117155Courtesy of GENERAL MOTORS CORP.

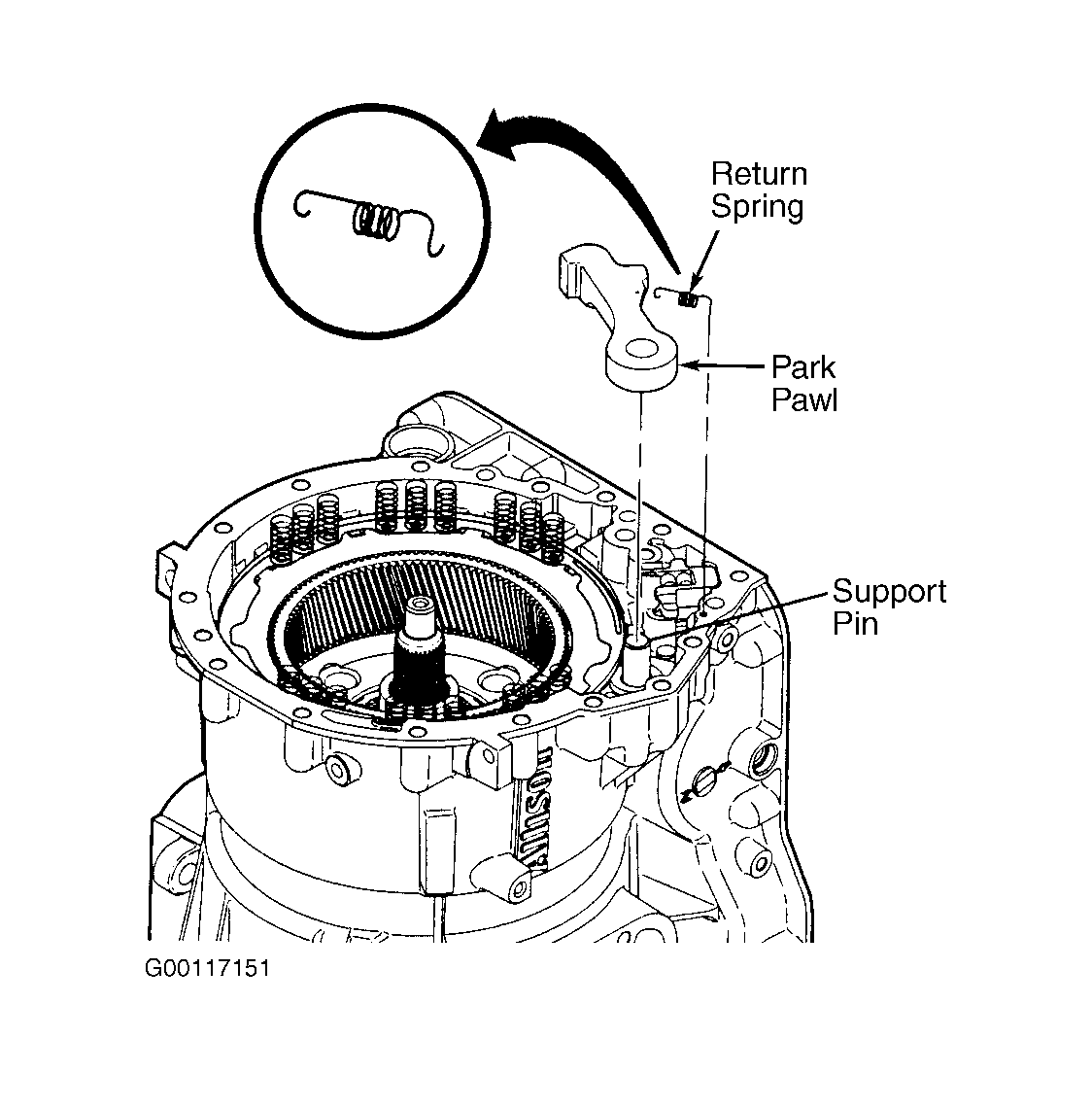

Fig 2: Installing Park Pawl & Return Spring
G00117151Courtesy of GENERAL MOTORS CORP.
