Output Shaft & P3 Planetary Carrier Assembly Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, 2003 Chevrolet Cab & Chassis Silverado, and 2002 GMC Sierra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install output shaft into P3 planetary carrier assembly. While holding output shaft, place P3 planetary carrier assembly into top of P3 ring gear.
  2. Move/rotate output shaft until carrier assembly drops into P3 ring gear. Gently drop output shaft onto main shaft. Rotate carrier assembly until it seats. See Fig 1.

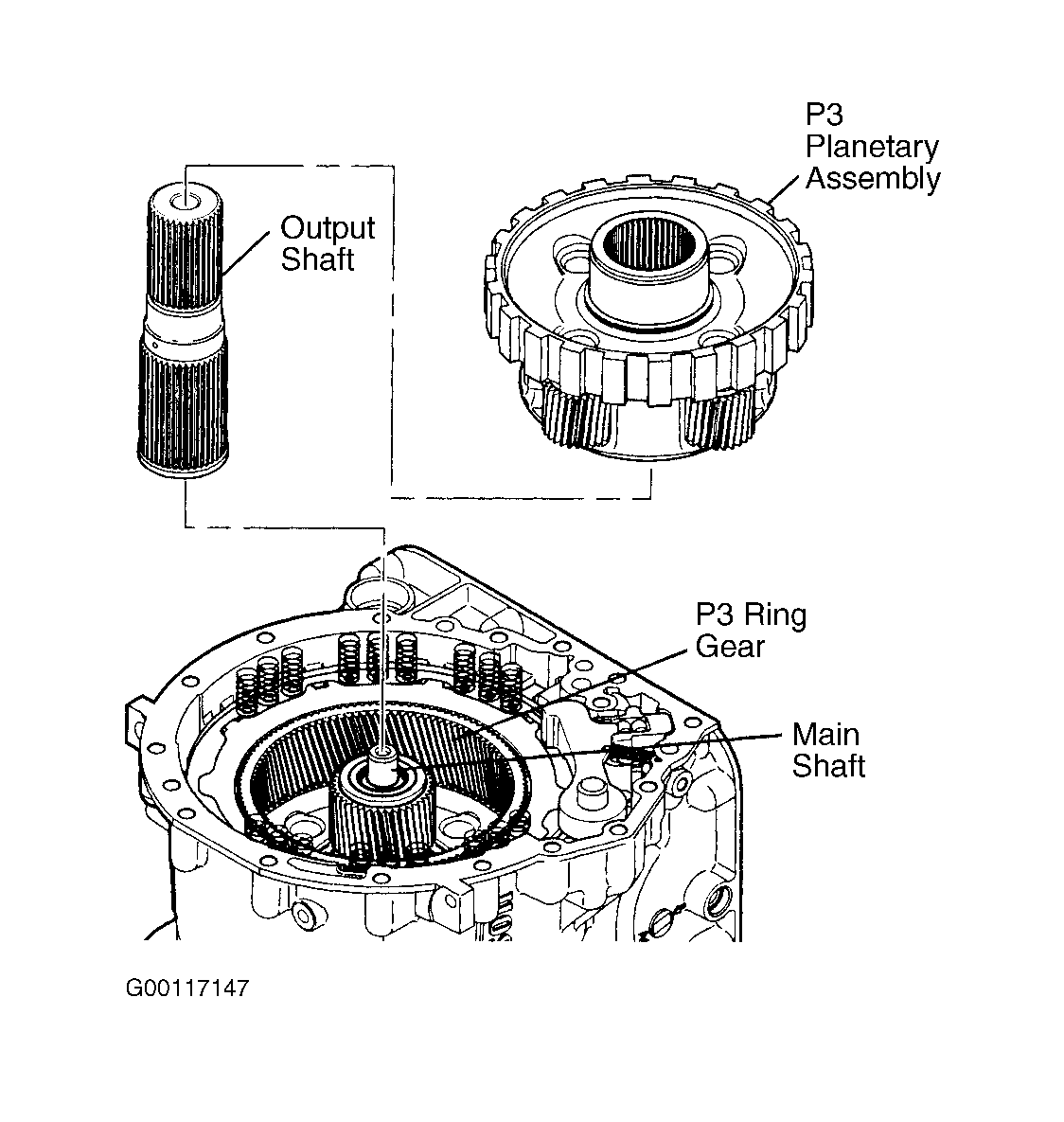

Fig 1: Installing Output Shaft & P3 Planetary Carrier Assembly
G00117147Courtesy of GENERAL MOTORS CORP.
