Wiring Harness Assembly

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, 2003 Chevrolet Cab & Chassis Silverado, and 2002 GMC Sierra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position transmission with oil pan upward. If present, remove wiring harness connector shipping cover. Using a 1-3/16" (30-32 mm) deep socket or box end wrench, depress 4 tabs on internal wiring harness connector. With tabs depressed, gently pop connector into and through the main transmission housing by hand. See Fig 1.
  2. Disconnect internal wiring harness connectors from following components. See Fig 2.
    • "A" and "B" trim solenoids.
    • "C", "D" and "E" ON/OFF shift solenoids.
    • "F" trim solenoid.
    • Pressure switch assembly.
  3. Remove solenoid retainers from "D" and "E" ON/OFF solenoids. Remove internal wiring harness from main valve body and reinstall solenoid retainers.

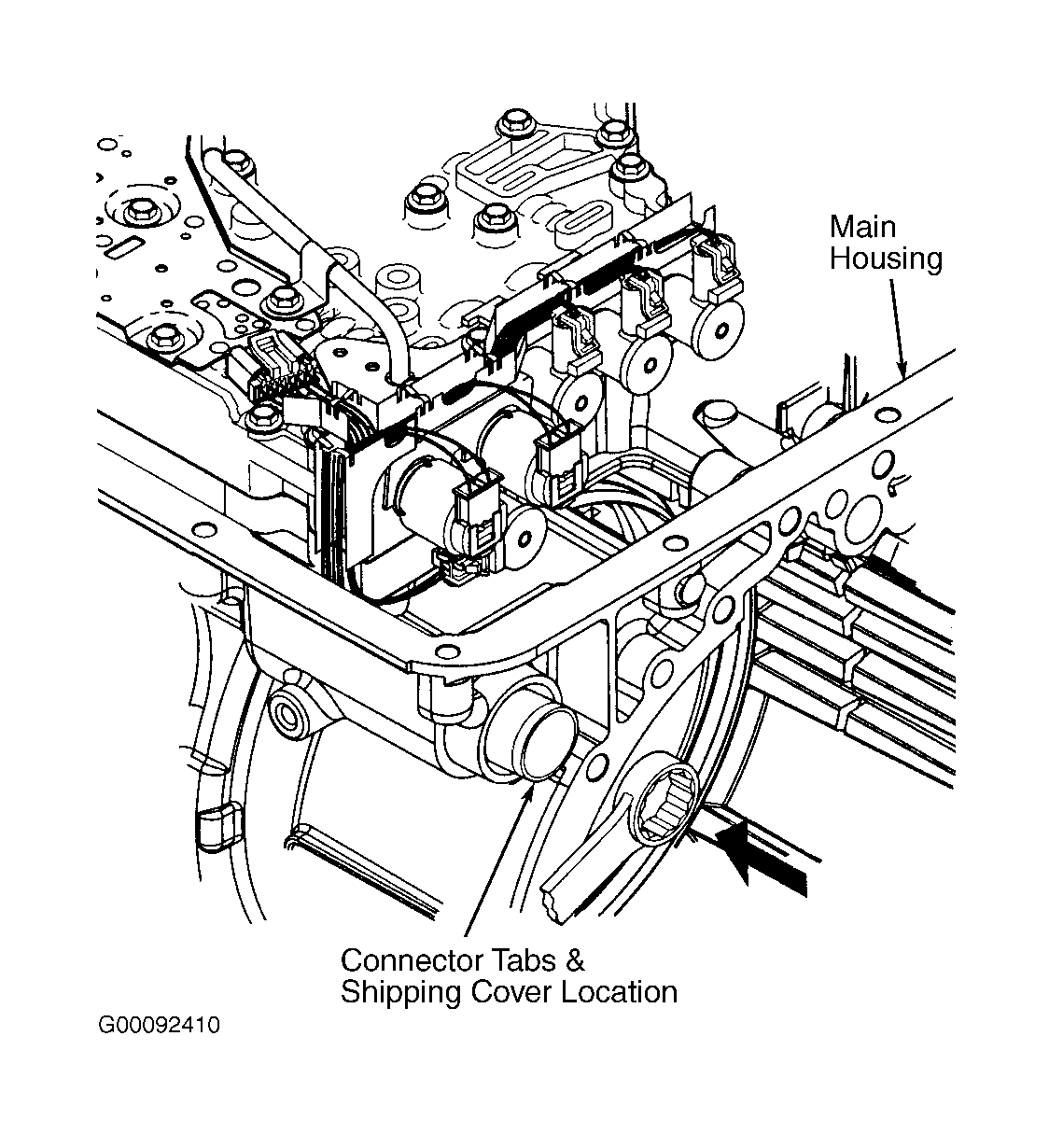

Fig 1: Removing Internal Wiring Harness
G00092410Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Internal Wiring Harness & Related Components
G00092414Courtesy of GENERAL MOTORS CORP.
