C5 Clutch
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, 2003 Chevrolet Cab & Chassis Silverado, and 2002 GMC Sierra. However, it is still accessible from the selected car via links, so may be relevant.

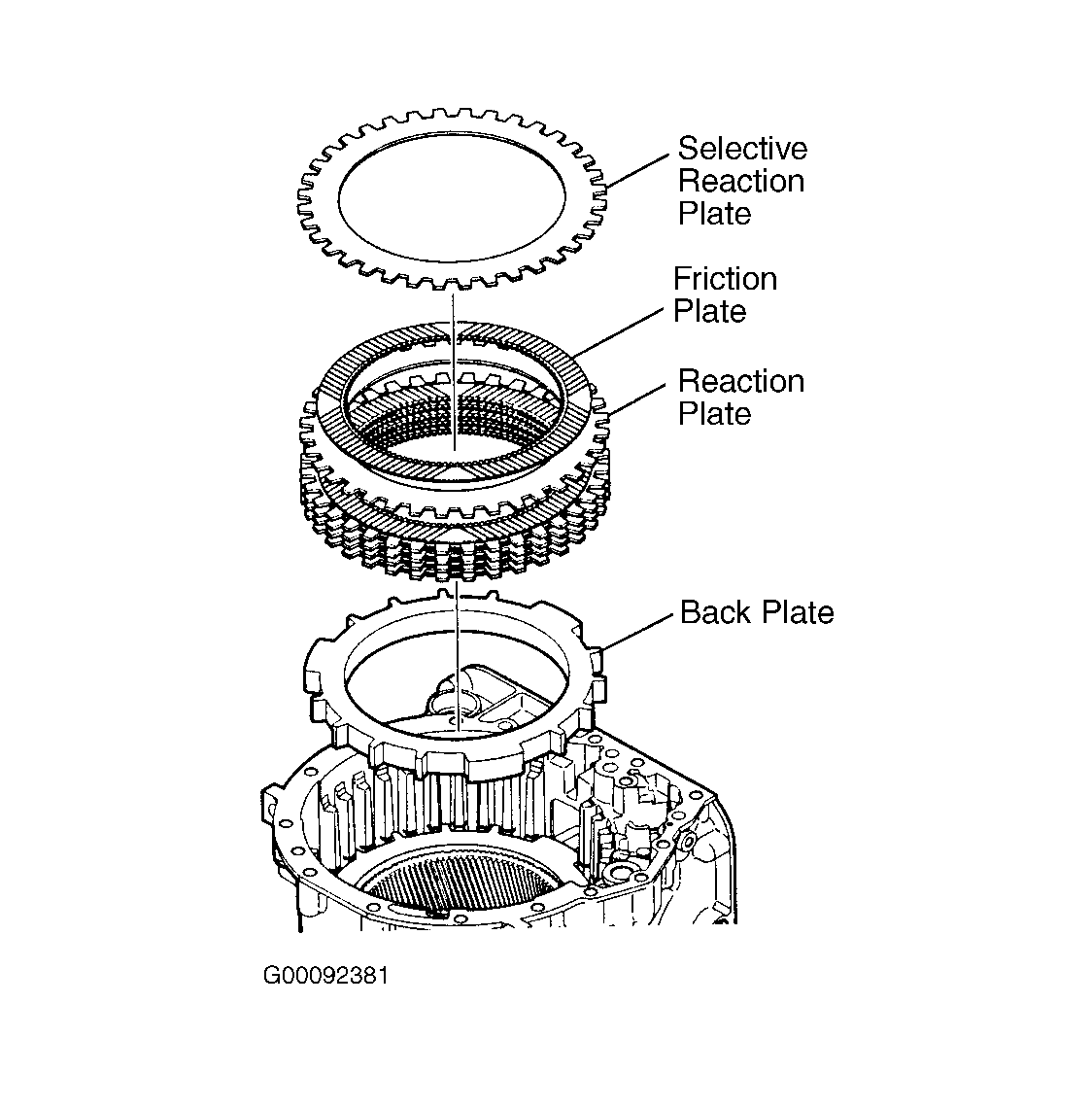

Remove selective reaction plate, 6 C5 clutch friction plates, 5 C5 clutch reaction plates, and the C5 clutch backplate. See Fig 1. Keep plate packs in order for installation.
