C1 Clutch Backplate Inspection

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, 2003 Chevrolet Cab & Chassis Silverado, and 2002 GMC Sierra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Measure wear surface thickness of C1 clutch backplate (dimension "A") in at least 3 locations. See Fig 1. Compare measurement to specifications. See ROTATING CLUTCH MODULE SPECIFICATIONS  table under TRANSMISSION SPECIFICATIONS. If backplate is less than minimum thickness at any point, replace backplate.
  2. Place backplate on a level surface and measure cone of backplate (dimension "B") in at least 3 locations. See Fig 2. Compare measurement to specifications. See ROTATING CLUTCH MODULE SPECIFICATIONS  table under TRANSMISSION SPECIFICATIONS. If cone is more than specified at any location, replace backplate.

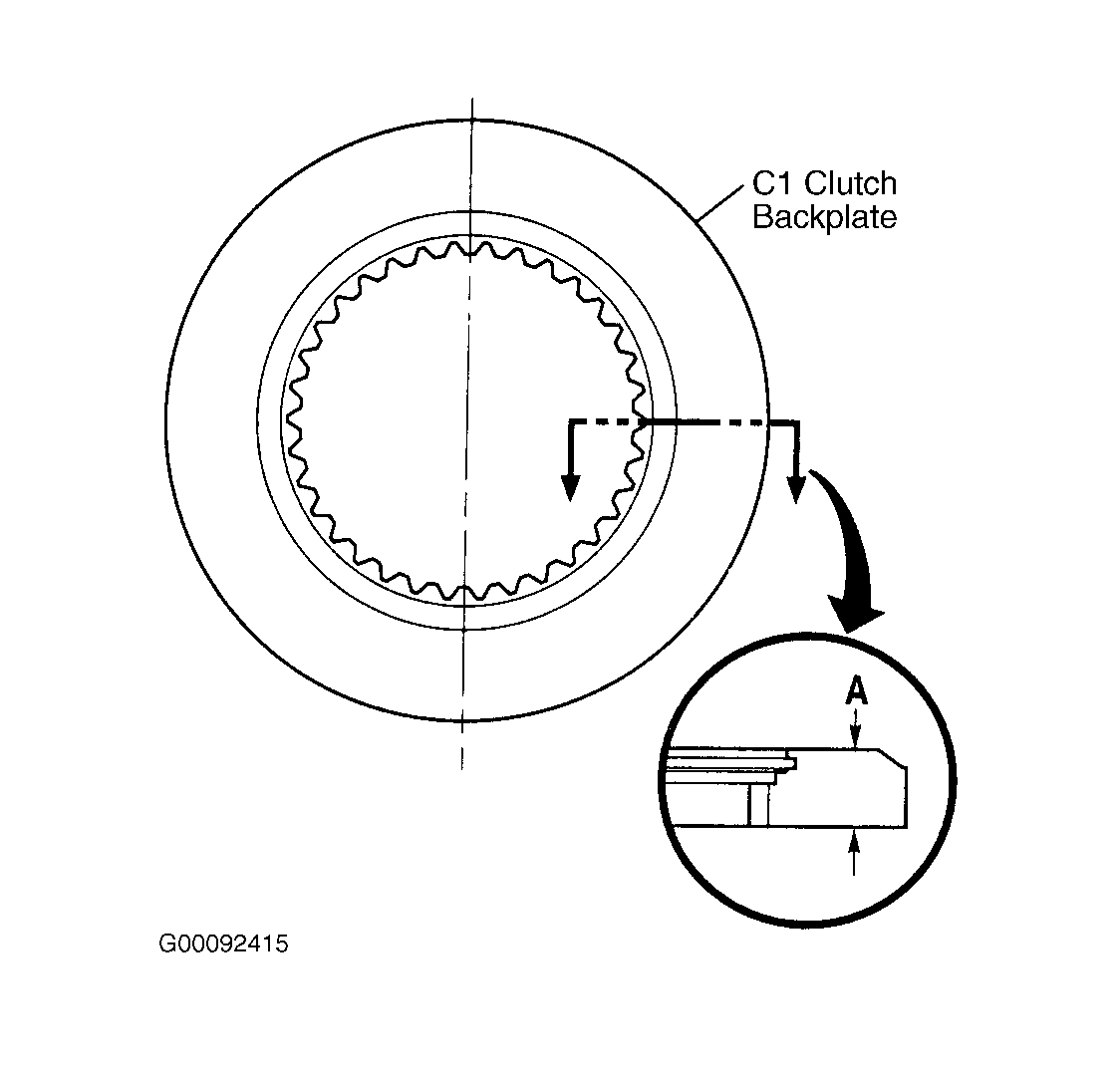

Fig 1: Measuring C1 Clutch Backplate Thickness
G00092415Courtesy of GENERAL MOTORS CORP.
Fig 2: Measuring C1 Clutch Backplate Cone
G00092411Courtesy of GENERAL MOTORS CORP.
