Drive Belt Routing Illustrations

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

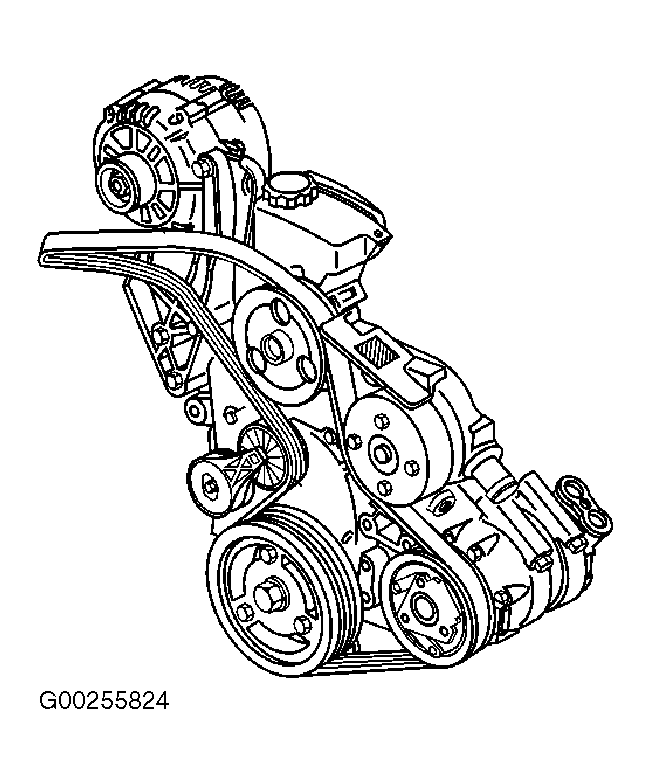

Fig 1: Drive Belt Routing (3.1)

Courtesy of GENERAL MOTORS CORP.

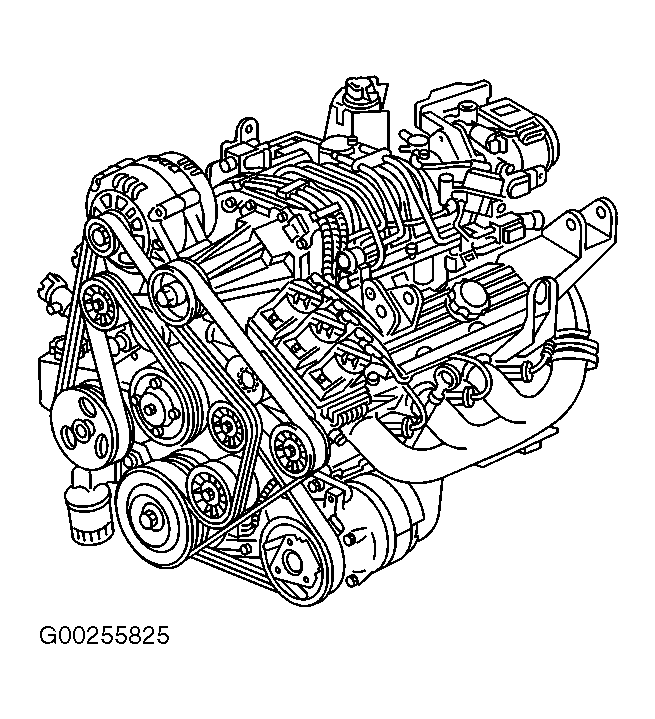

Fig 2: Drive Belt Routing (1 Of 2 - 3.8L)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Drive Belt Routing (2 Of 2 - 3.8L)

Courtesy of GENERAL MOTORS CORP.

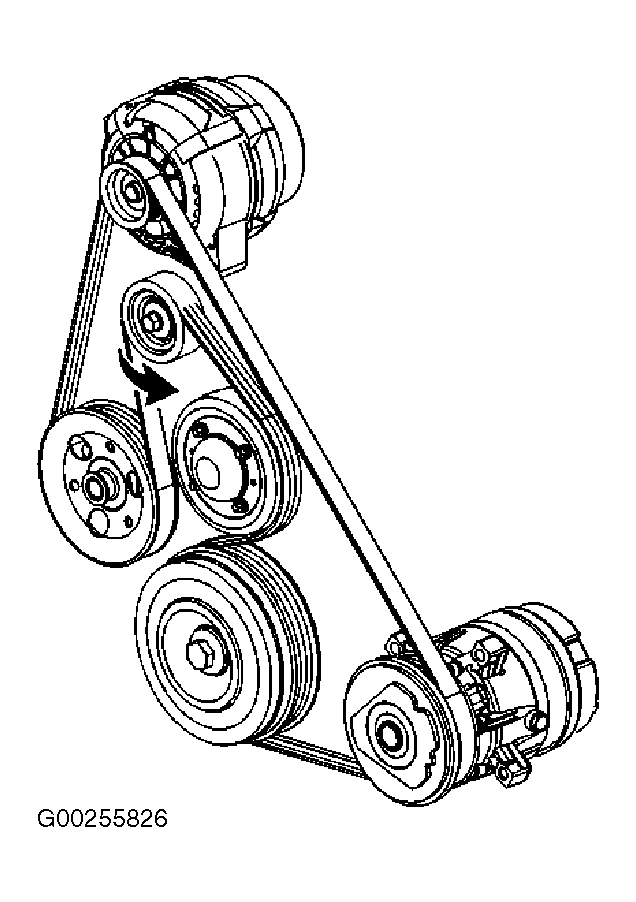

Fig 4: Drive Belt Routing (Supercharger - 3.8L)

Courtesy of GENERAL MOTORS CORP.
