Installation (Without Floor Console)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

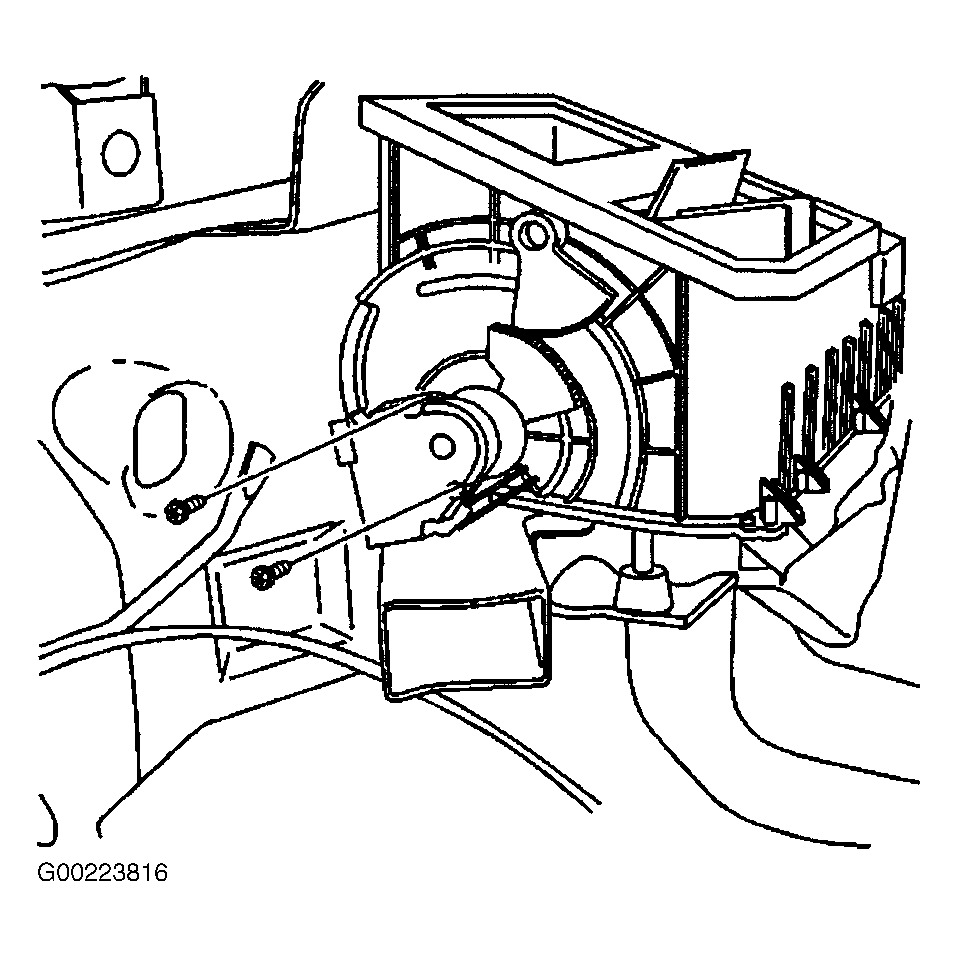

  1. Install the mode actuator as an assembly with the actuator cam. Line up the heater/defroster valve lever with the mode actuator cam slot. Line up the A/C valve lever with the mode actuator cam. See Figure.
  2. Install the mode actuator mounting screw to the heater/vent module. Tighten to specification. See TORQUE SPECIFICATIONS . Connect the electrical connection at the mode actuator. See Figure.

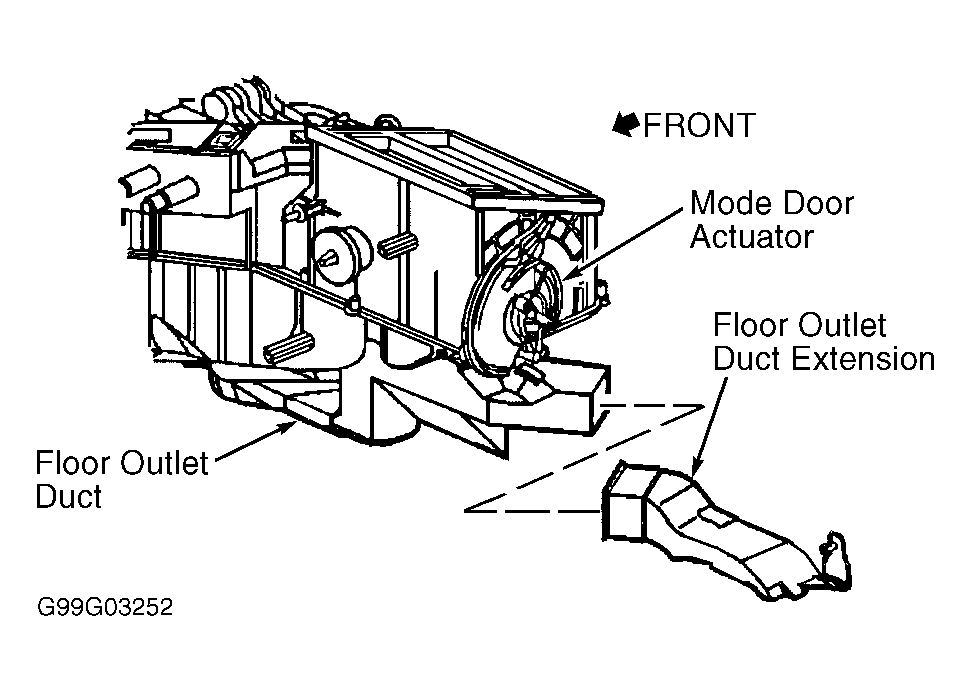

  3. Install the floor air outlet duct extension to the floor air duct. See Figure.
