Installation (4.3L With Harrison - 3500 HD, Cab & Chassis, Sierra, Silverado)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Add the proper amount of PAG oil to the compressor crankcase. See SPECIFICATIONS . Install the A/C compressor drain plug. Tighten to specification. See TORQUE SPECIFICATIONS .

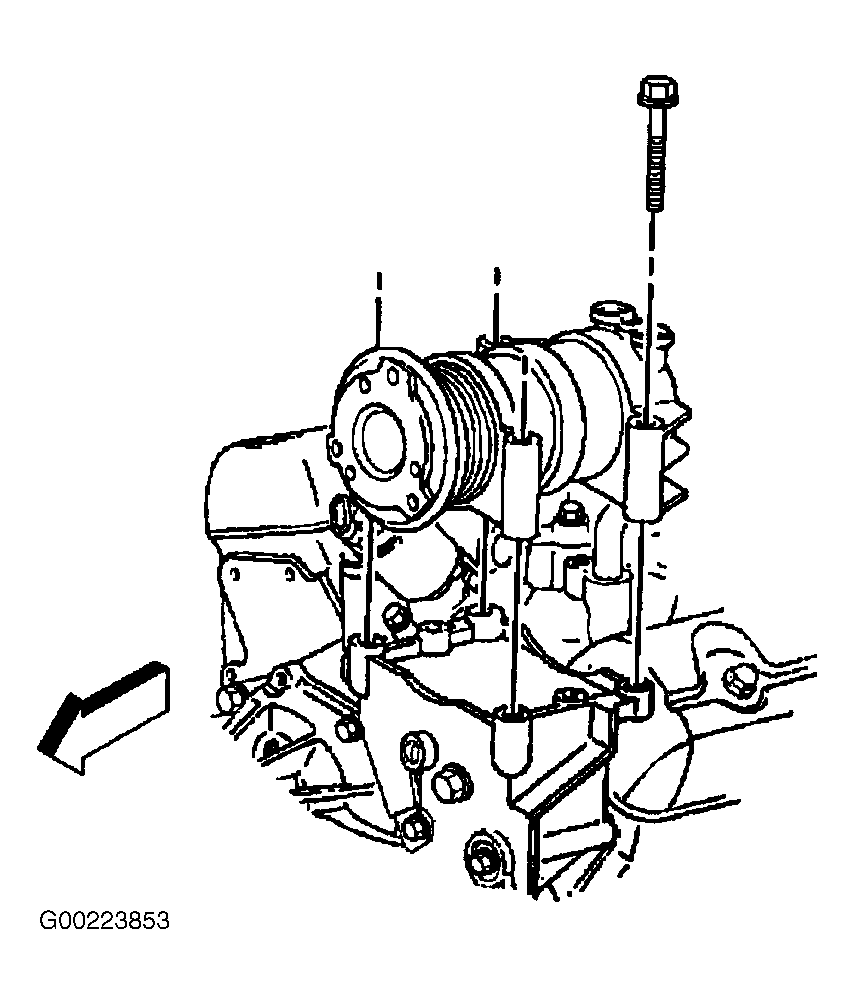

  2. Install the compressor into the bracket. Install the compressor bolts. See Figure. Tighten to specification. Install the A/C compressor hose to the compressor using new sealing washers. Install the A/C compressor hose bolt to the A/C compressor. Tighten to specification.
  3. Connect the electrical connections. Install the drive belt. Evacuate and recharge the A/C system. See RECOVERY/EVACUATION & RECHARGING in GENERAL SERVICING PROCEDURES article in GENERAL SERVICING. Leak test the fittings of the component using a Leak Detector.
