Steering Gear: Installation

WARNING: This page is about a different car, the 2002 Pontiac Grand Am, 2002 Oldsmobile Alero, and 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. If studs were removed with mounting bracket nuts, apply Thread Lock Kit (1052624) to stud threads. Install studs into firewall and tighten to specification. See TORQUE SPECIFICATIONS  .
  2. To install remaining components, reverse removal procedure. Connect steering shaft coupling to steering gear before installing mounting brackets.
  3. Adjust toe-in as necessary. Fill power steering system to capacity and bleed air from system as necessary.

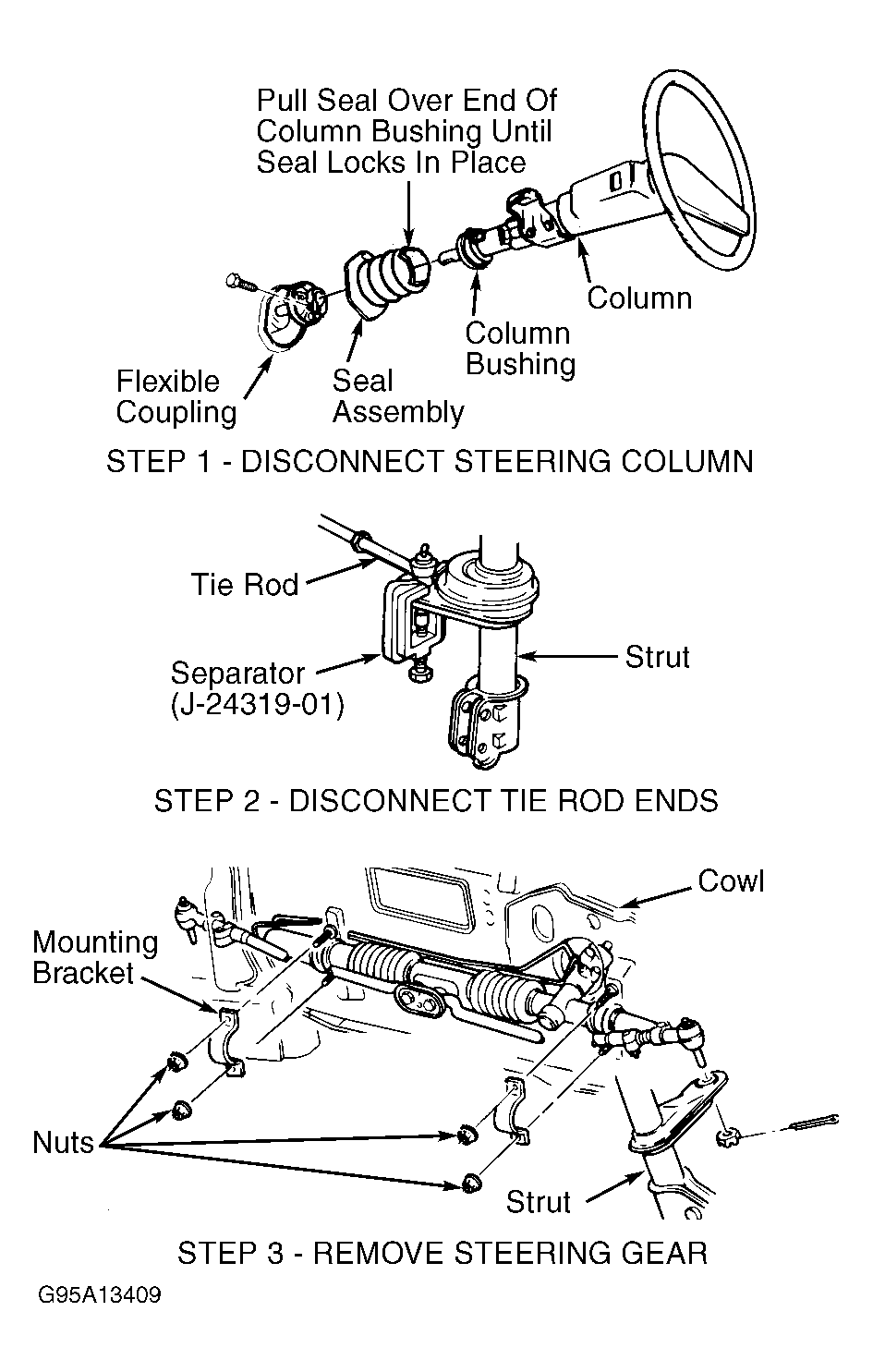

Fig 1: Removing & Installing Steering Gear
G95A13409Courtesy of GENERAL MOTORS CORP.
