Removal & Installation (4.3L)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Before servicing any electrical component, the ignition key must be in the OFF or LOCK position and all electrical loads must be OFF, unless instructed otherwise in these procedures. If a tool or equipment could easily come in contact with a live exposed electrical terminal, also disconnect the negative battery cable. Failure to follow these precautions may cause personal injury and/or damage to the vehicle or its components.

NOTE: The Knock Sensor (KS) is located at the top rear of the engine.

Disconnect the negative battery cable. Remove the engine cover. Disconnect the KS harness connector (1). See Fig 1. Remove the KS bolt (2). Remove the KS (3). To install, reverse removal procedure. See TORQUE SPECIFICATIONS .

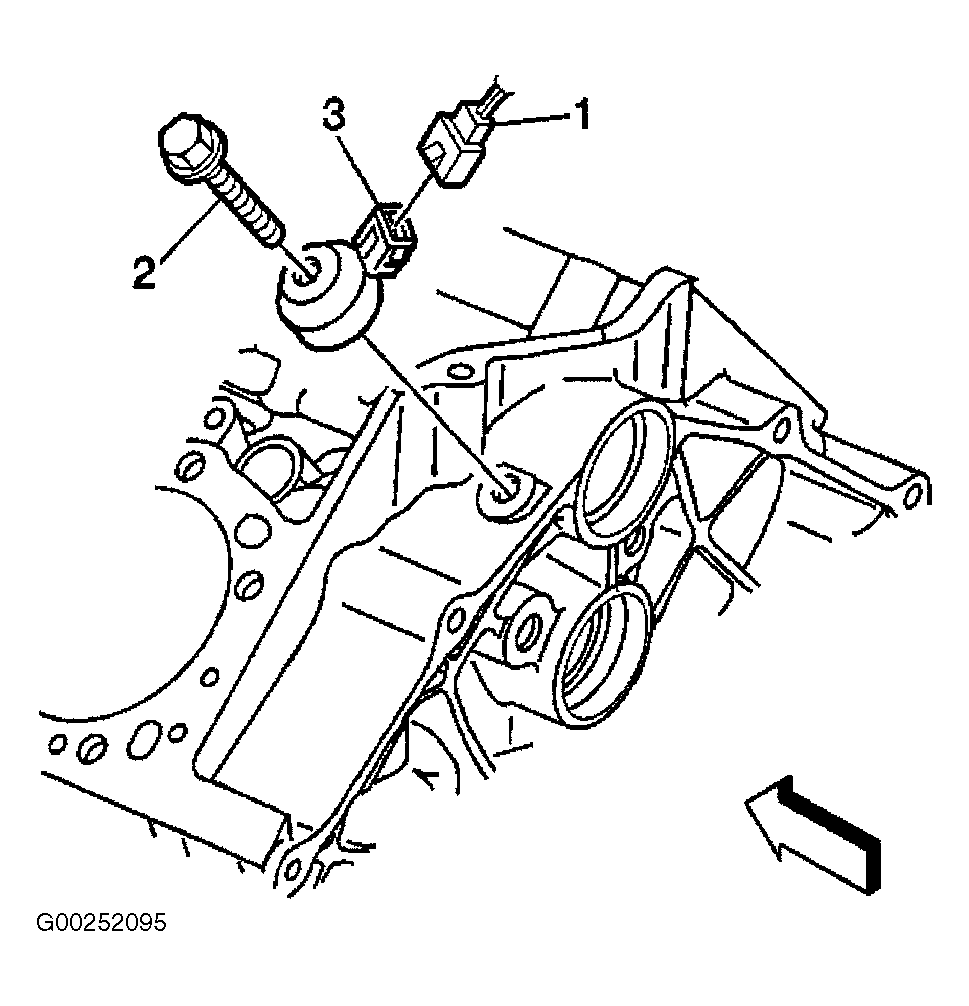

Fig 1: Removing Knock Sensor (4.3L)

Courtesy of GENERAL MOTORS CORP.
