Removal & Installation (4.3L)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: DO NOT use the old cap, CMP sensor, and rotor screws. Use the replacement screws that have been coated with a thread locking compound.
  1. Remove the engine cover. Disconnect the spark plug wires and ignition coil wire from the distributor. See Fig 1. Disconnect the camshaft position (CMP) sensor harness connector from the distributor. See Fig 2.
  2. Remove the distributor cap. See Fig 3. Remove rotor screws and the rotor. See Fig 4.
  3. Align the square slot in the reluctor wheel with the CMP sensor. See Fig 5. Remove the CMP screws. Remove the CMP sensor. See Fig 6.
  4. To install, insert the CMP sensor through the reluctor wheel slot. Install NEW cap, CMP sensor, and rotor screws. Install the rotor onto the reluctor wheel. Install the distributor cap. Connect the CMP sensor harness connector. Connect the spark plug wires and ignition coil wire. Install the engine cover.

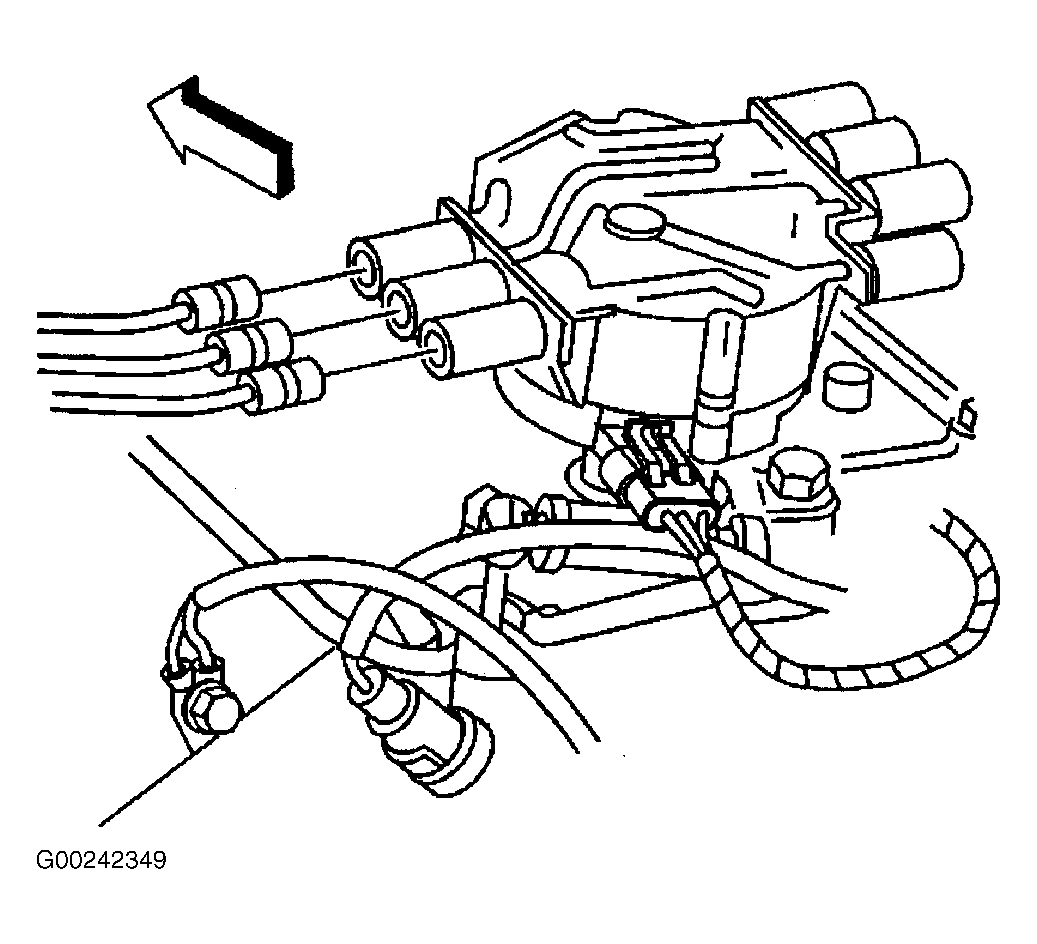

Fig 1: Disconnecting Spark Plug Wires & Ignition Coil Wires (4.3L)
G00242349Courtesy of CHRYSLER CORP.
Fig 2: Disconnecting Camshaft Position Sensor (4.3L)
G00242350Courtesy of GENERAL MOTORS CORP.
Fig 3: Removing/Installing Distributor Cap Screws (4.3L)
G00242351Courtesy of GENERAL MOTORS CORP.
Fig 4: Removing Rotor Screws & Rotor (4.3L)
G00242352Courtesy of GENERAL MOTORS CORP.
Fig 5: Aligning Distributor Reluctor Wheel Slot With Camshaft Position Sensor (4.3L)
G00143823Courtesy of GENERAL MOTORS CORP.
Fig 6: Removing/Installing Camshaft Position Sensor (4.3L)
G00143824Courtesy of GENERAL MOTORS CORP.
