Removal & Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle. Disconnect the electrical connector from the EVAP vent valve. See Fig 1. Disconnect the canister vent hose. Bend back the tang on the bracket. Slide the EVAP vent valve off the bracket. See Fig 2. To install, reverse removal procedure.

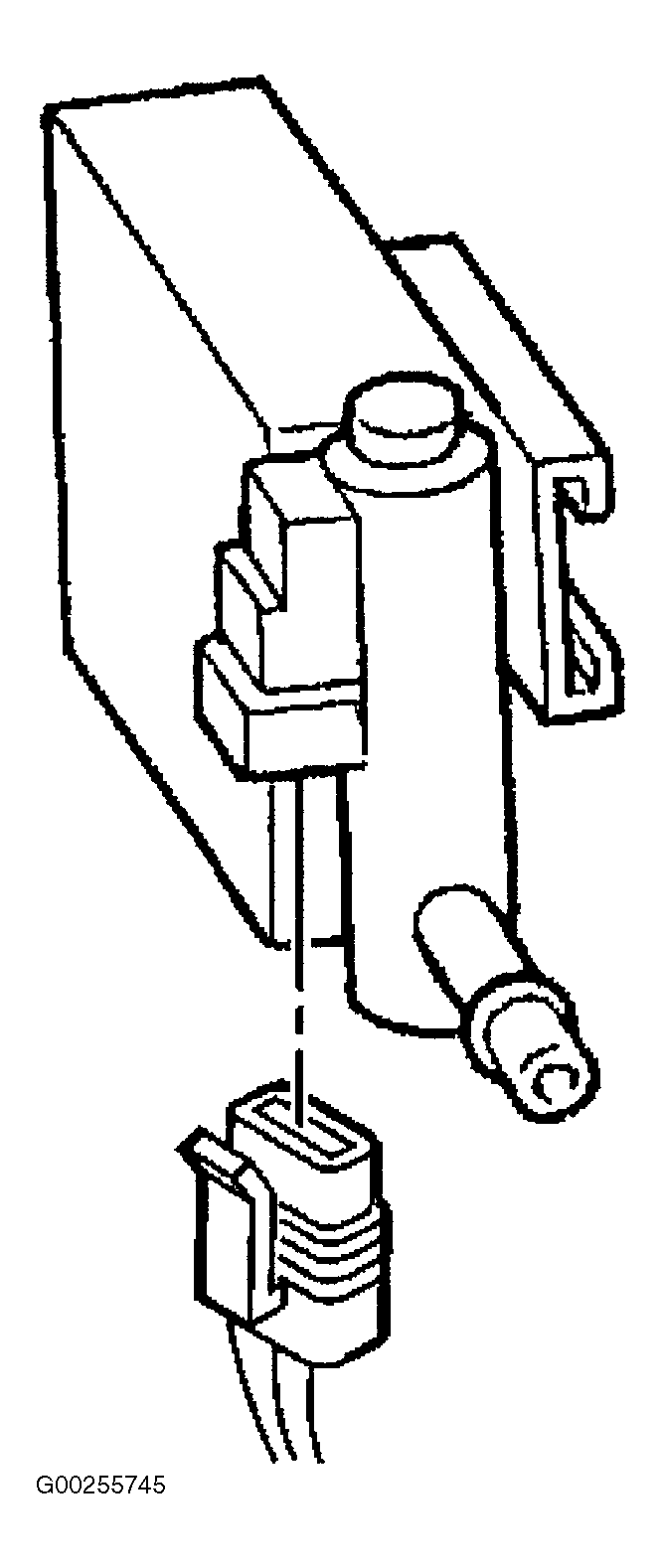

Fig 1: Disconnecting EVAP Canister Vent Valve Electrical Connector

Courtesy of GENERAL MOTORS CORP.

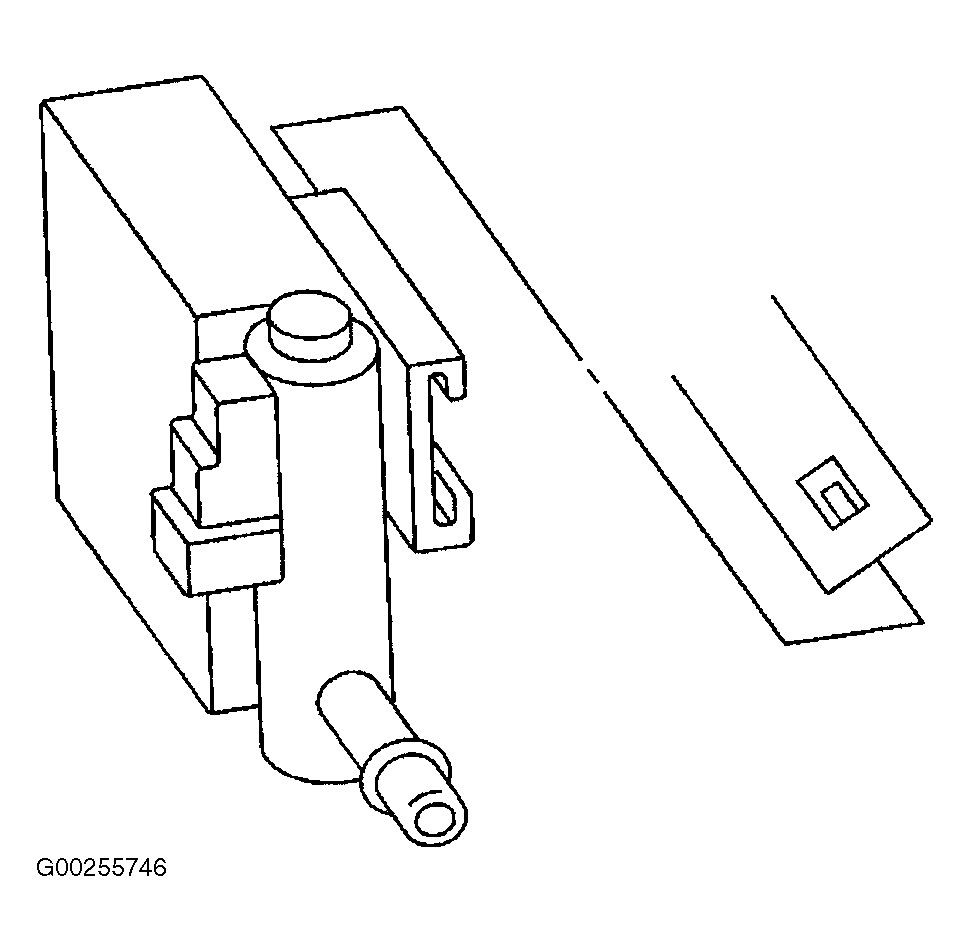

Fig 2: Removing EVAP Canister Vent Valve

Courtesy of GENERAL MOTORS CORP.
