Removal & Installation (4.8L, 5.3L & 6.0L)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

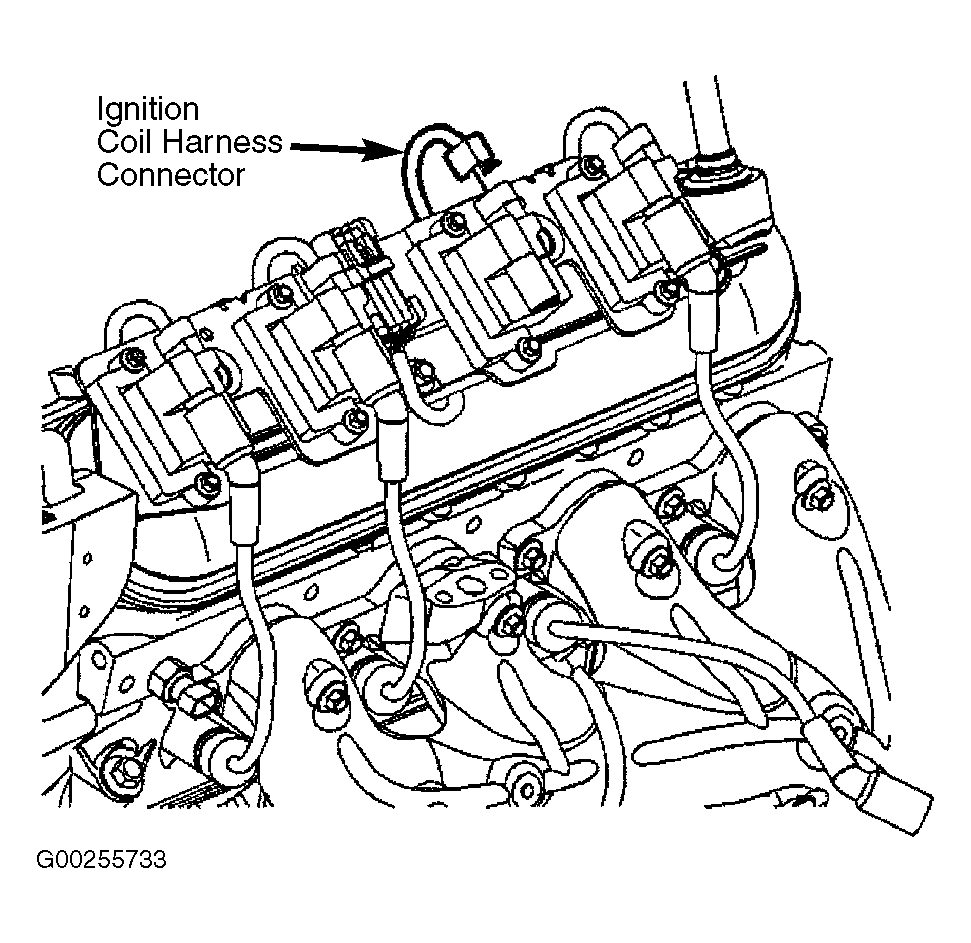

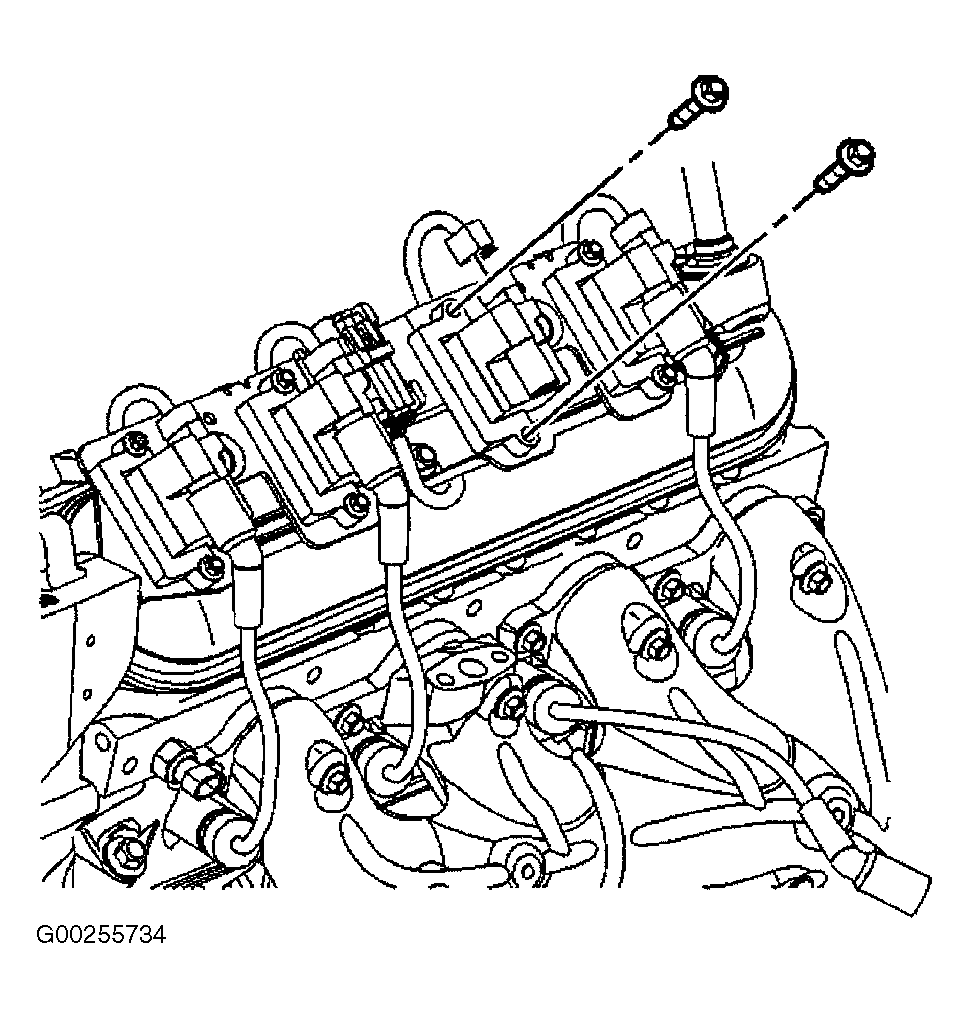

Remove the engine cover. Disconnect the spark plug wires at the ignition coils. Disconnect the ignition coil harness connector. See Fig 1. Remove the ignition coil mounting bolts. See Fig 2. Remove the ignition coil. Install the ignition coil to the bracket. To install reverse removal procedure. Tighten ignition coil bolts to specification. See TORQUE SPECIFICATIONS .
