Removal & Installation (Right)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, 2002 Chevrolet RV Cutaway, and 2002 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the right side exhaust manifold bolts. See Fig 1. Remove the right side exhaust manifold. To install, reverse removal procedure. Tighten exhaust manifold bolts to specifications. See TORQUE SPECIFICATIONS .

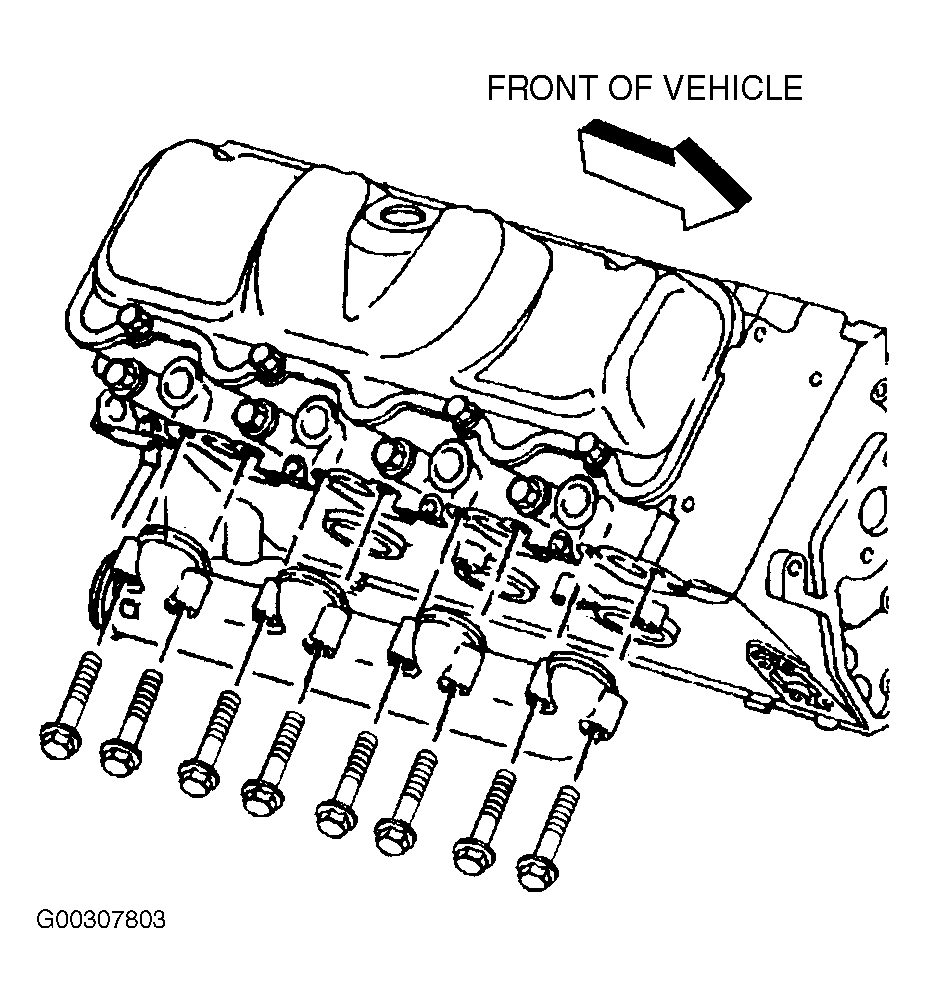

Fig 1: Identifying Right Side Exhaust Manifold Bolts
G00307803Courtesy of GENERAL MOTORS CORP.
