Special Tools and Equipment

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

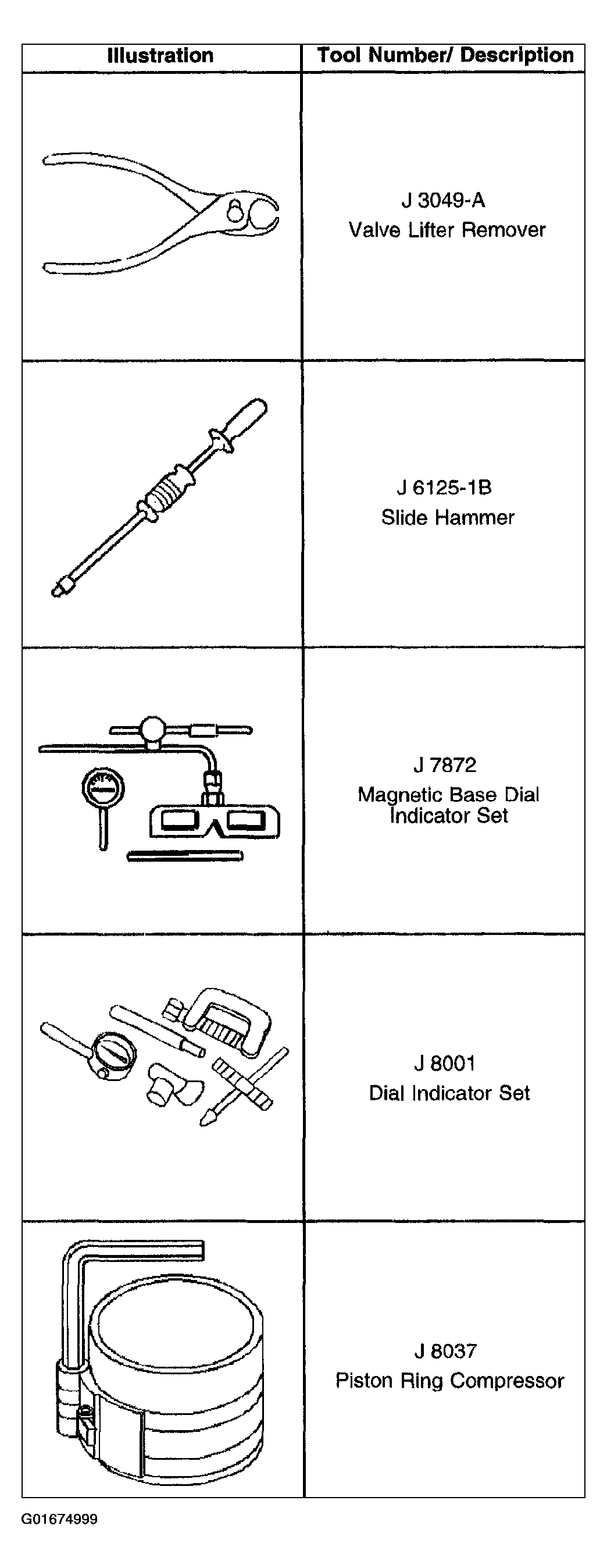

Fig 1: Special Tools & Equipment (1 Of 9)

G01674999

Courtesy of GENERAL MOTORS CORP.

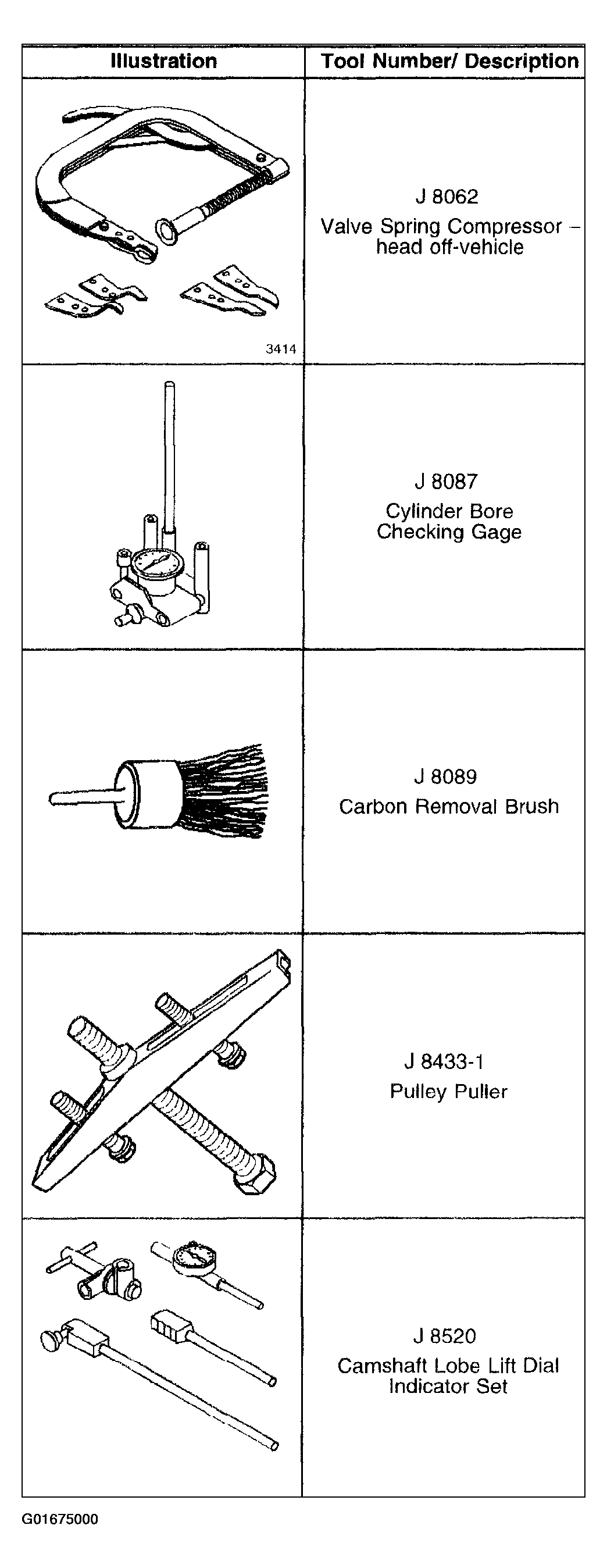

Fig 2: Special Tools & Equipment (2 Of 9)

G01675000

Courtesy of GENERAL MOTORS CORP.

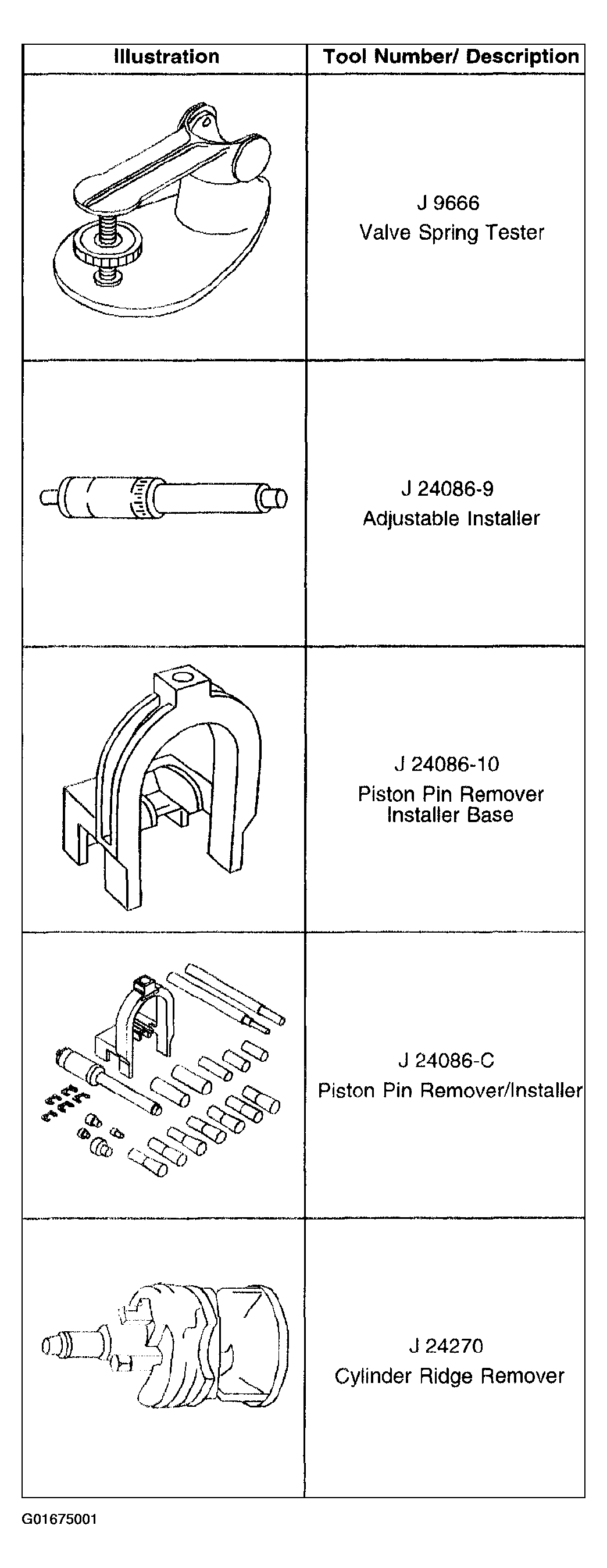

Fig 3: Special Tools & Equipment (3 Of 9)

G01675001

Courtesy of GENERAL MOTORS CORP.

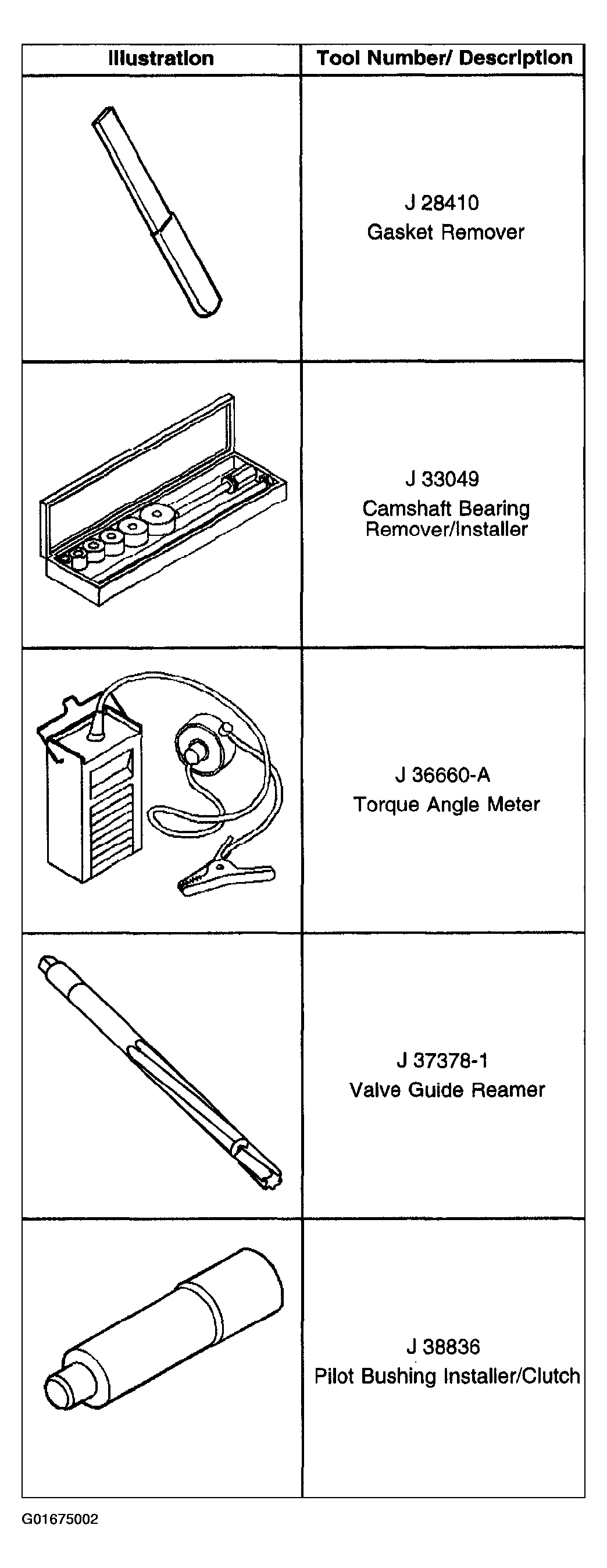

Fig 4: Special Tools & Equipment (4 Of 9)

G01675002

Courtesy of GENERAL MOTORS CORP.

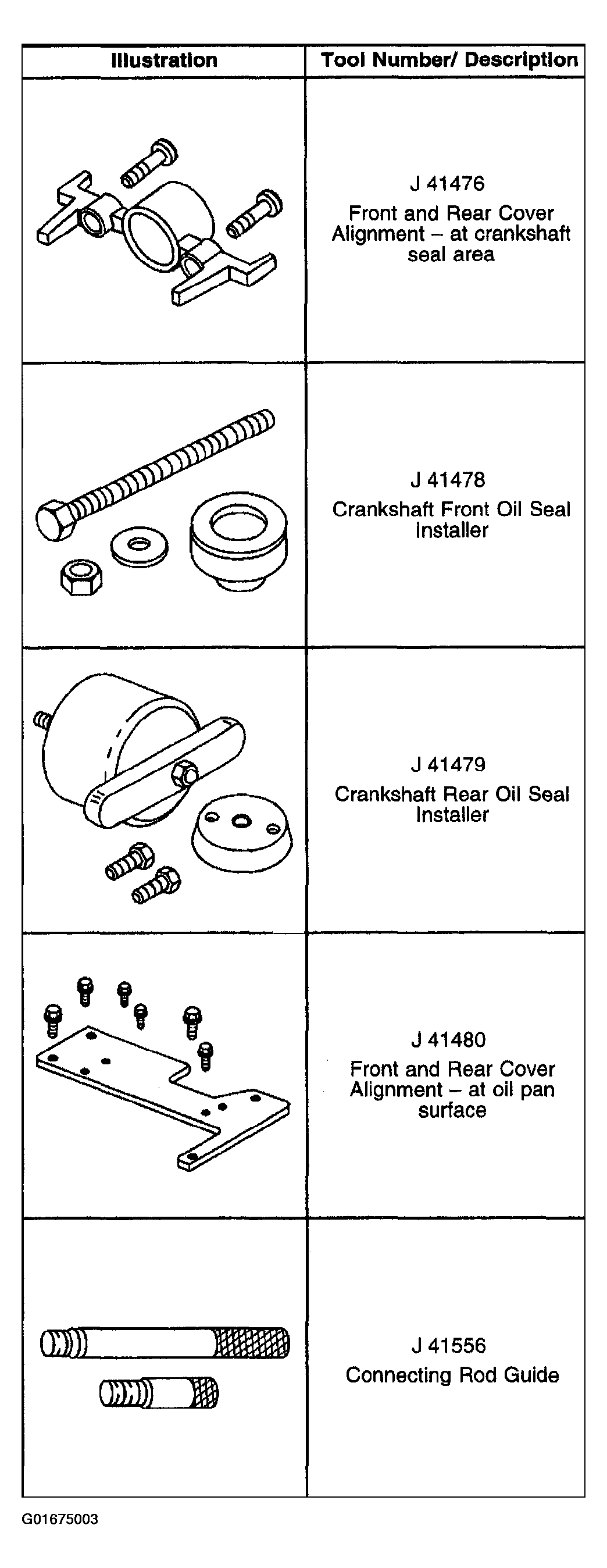

Fig 5: Special Tools & Equipment (5 Of 9)

G01675003

Courtesy of GENERAL MOTORS CORP.

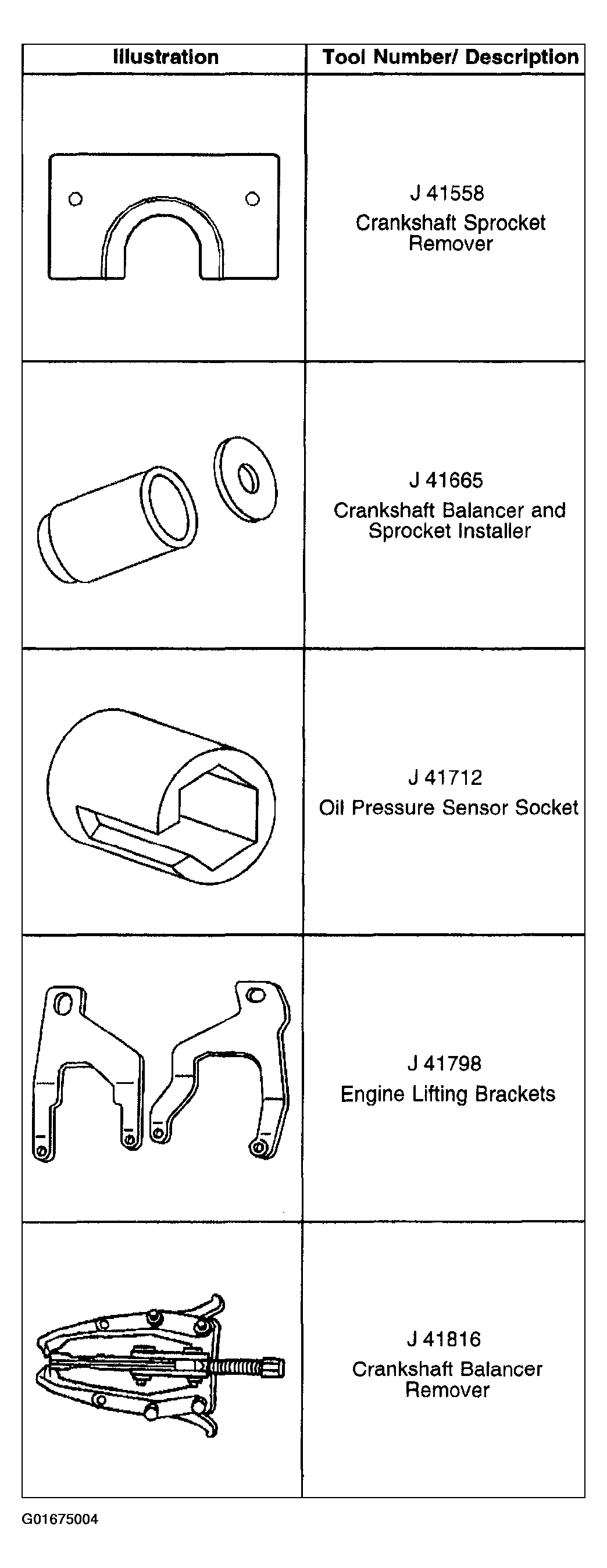

Fig 6: Special Tools & Equipment (6 Of 9)

G01675004

Courtesy of GENERAL MOTORS CORP.

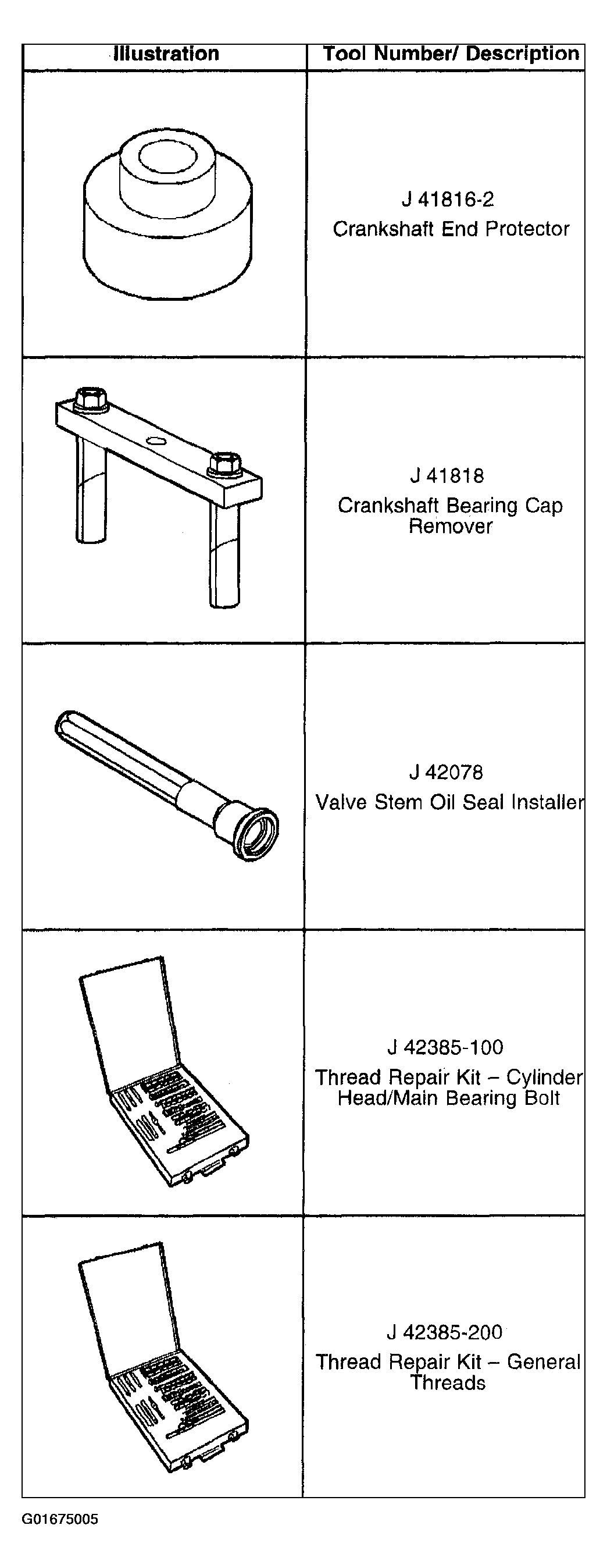

Fig 7: Special Tools & Equipment (7 Of 9)

G01675005

Courtesy of GENERAL MOTORS CORP.

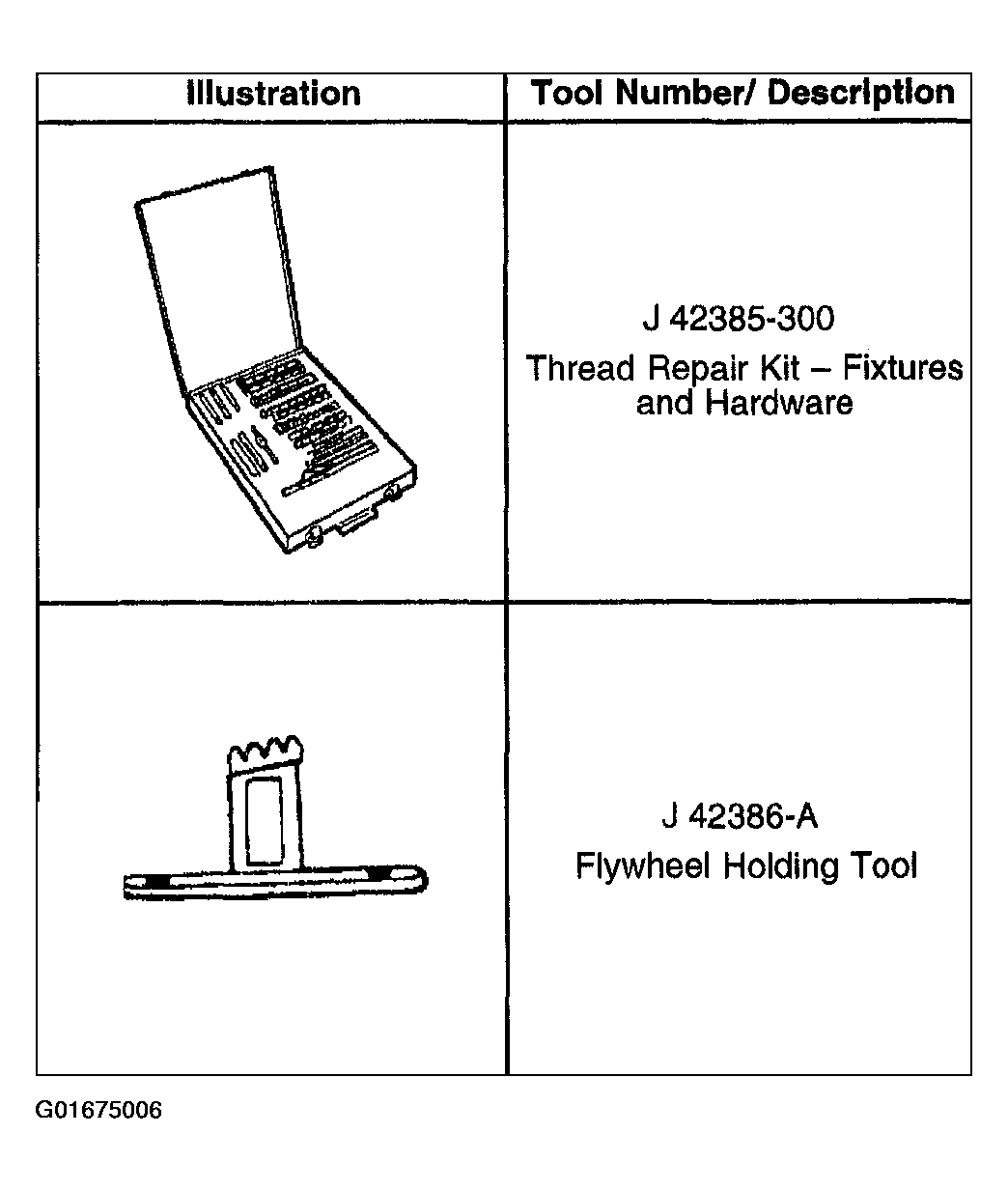

Fig 8: Special Tools & Equipment (8 Of 9)

G01675006

Courtesy of GENERAL MOTORS CORP.

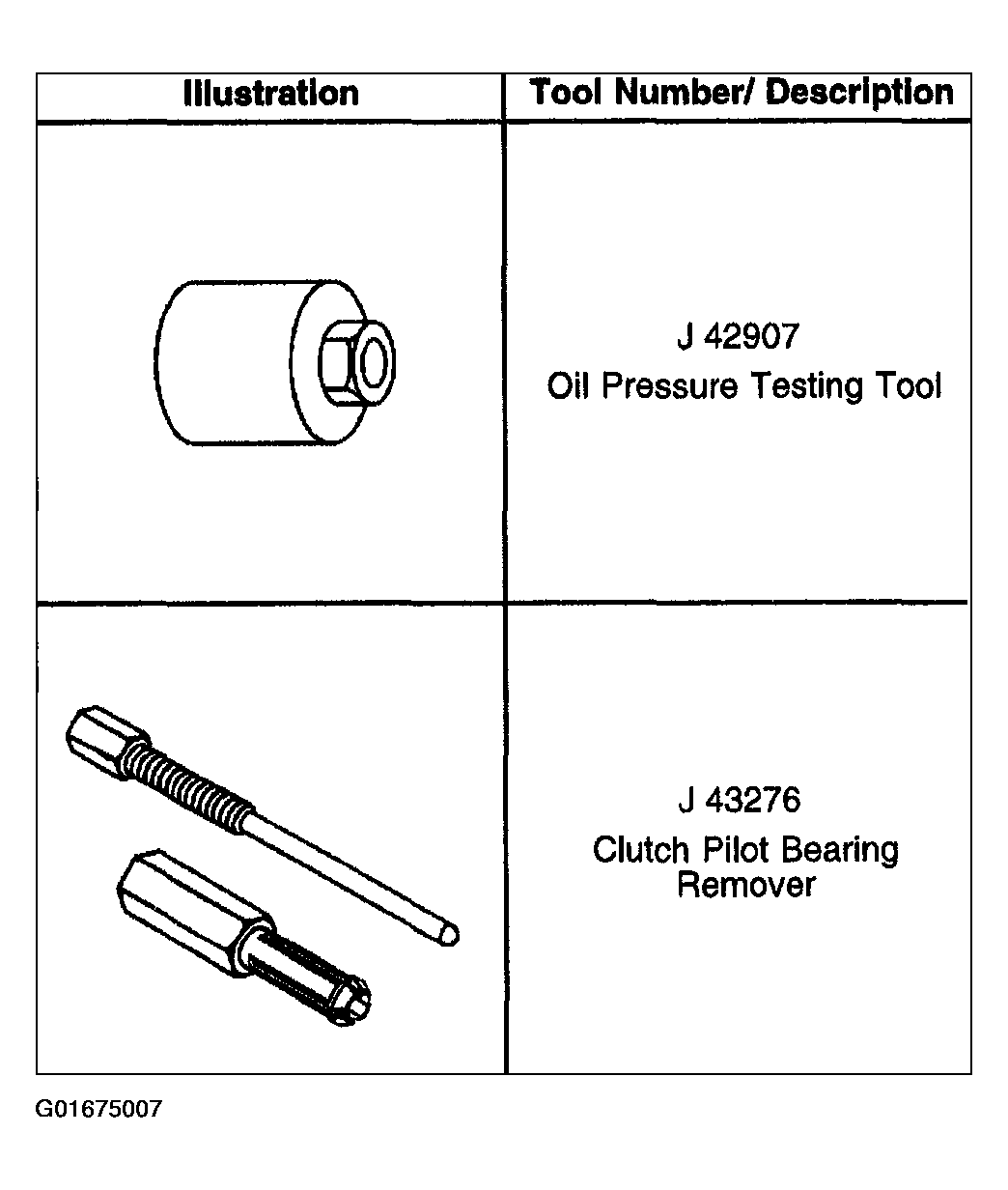

Fig 9: Special Tools & Equipment (9 Of 9)

G01675007

Courtesy of GENERAL MOTORS CORP.
